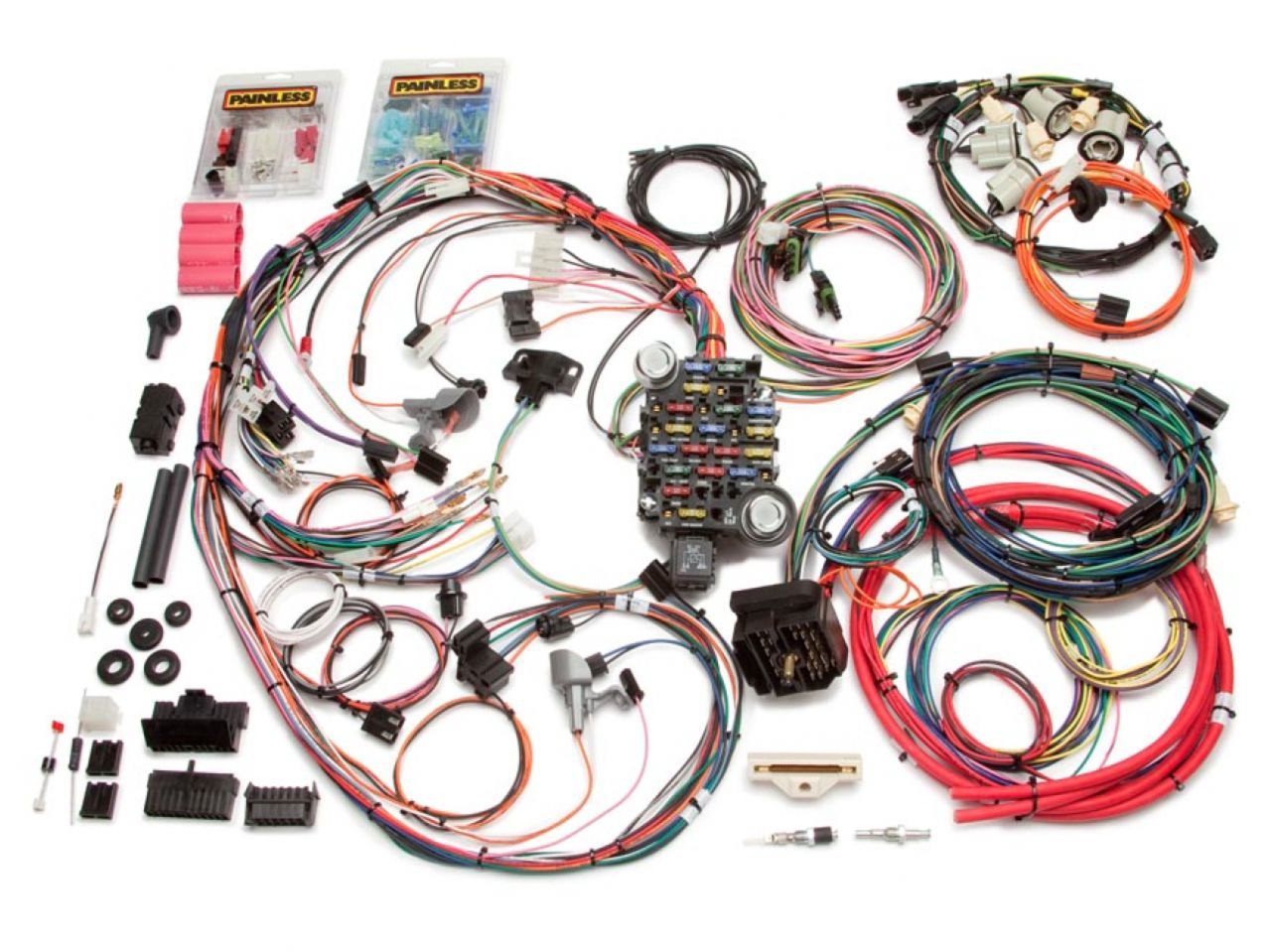

Painless Direct Fit Camaro Harness (1974-1977) - 26 Circuits

This 26 circuit direct fit 1974-1977 2nd Gen Camaro harnesses has virtually every connector installed on the harness out of the box. These harnesses are split into three sections (engine, interior, & rear) and features a fully integrated ground circuit. You'll find many upgrades in ths harnesses such as a 6 gauge charge wire and a 150 amp midi fuse. Also available is a 150+ page full color step by step manual that also covers many alternative wiring options and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.Note: Factory A/C wiring is not included, as this option seemed to almost change year to year. These harnesses DO include the power wire for the A/C switch to make it as easy as plugging in your original A/C harness, an aftermarket reproduction harness, or an aftermarket A/C system. These harnesses DO include a new blower motor harness for those with heat only systems.Wiring for factory power window/locks is also not included but available as a separate part number. Painless part # 30715 is a factory style power window/power lock harness for these vehicles if a replacement harness for this option is needed. Like the A/C wires, these chassis harnesses DO include the power wires for the power window/lock option making it another easy plug in to a factory power window/lock harness or the Painless Power Window/Lock Harness.

Specifications

Number of Circuits: 26

Fuse Type: ATC

Firewall Passthrough: bulkhead

Color Code Based: GM

This harness includes circuits for:

Including Wires For:

• Aftermarket Gauge Power
• Brake Warning Light
• Fuel Gauge
• Gear Indicator Light
• Key Buzzer
• Oil Gauge
• Tachometer
• Temperature Gauge
• Voltmeter
