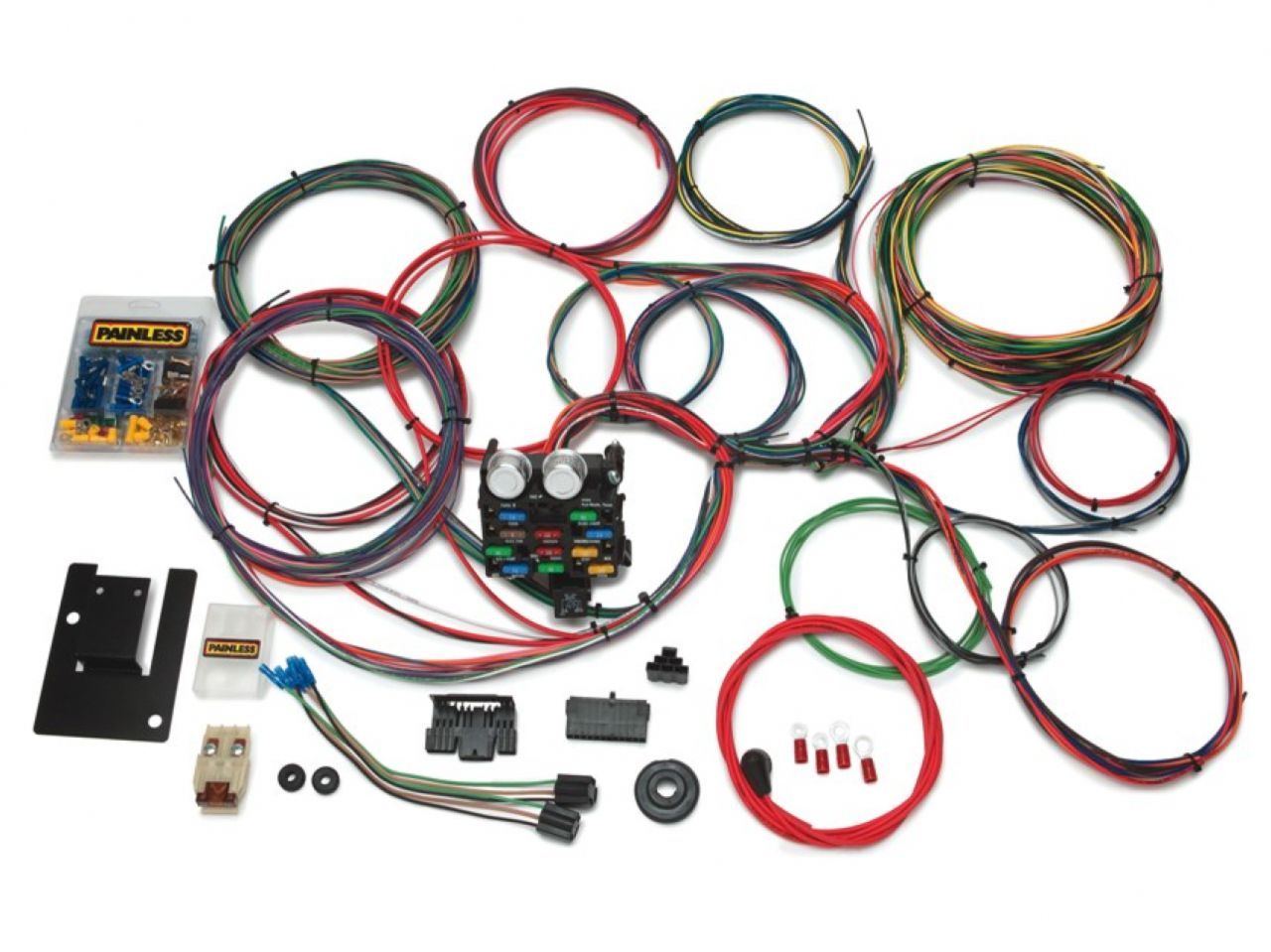

Painless Customizable Classic Tri-Five Chevy Chassis Harness - 21 Circuits

Painless Customizable Classic Tri-Five Chevy Chassis Harness - 21 Circuits

Regular price $623.16
Regular price $819.95 Sale price $623.16
Sale Sold out

Out of stock

Quantity

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

This 21 circuit kit is designed to fit the 1955-1957 "Tri-Five Chevy". This harness features a factory location Painless mounting plate for the fuse block, and special dash & turn signal connectors. Included with this harness you will also find pre wire plugs for the headlights and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.

Specs:

Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: Factory GM
Circuit Designations:Printed on Wires

Chassis wiring harness for:

  • 1955 Chevrolet 150, 210, Belair
  • 1956 Chevrolet 150, 210, Belair
  • 1957 Chevrolet 150, 210, Belair

This harness includes circuits for:

  1. A/C & Heat
  2. Accessory / Cigarette Lighter
  3. Backup Lights
  4. Brake Lights
  5. Charging
  6. Dome Light
  7. Electric Choke
  8. Emergency Flashers
  9. Fan Relay Activation Power
  10. Fused Power Source
  11. Headlights
  12. Horn (Relay)
  13. Ignition Coil
  14. Instrument Panel Lighting and Gauges*
  15. Park Lights
  16. Radio/Clock (Constant and Switched)
  17. Starting
  18. Tail Lights
  19. Third Brake Light
  20. Turn Signals
  21. Wipers

* Including Wires For:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter

Application

Year: 1955 - 1957
Make: Chevrolet
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
