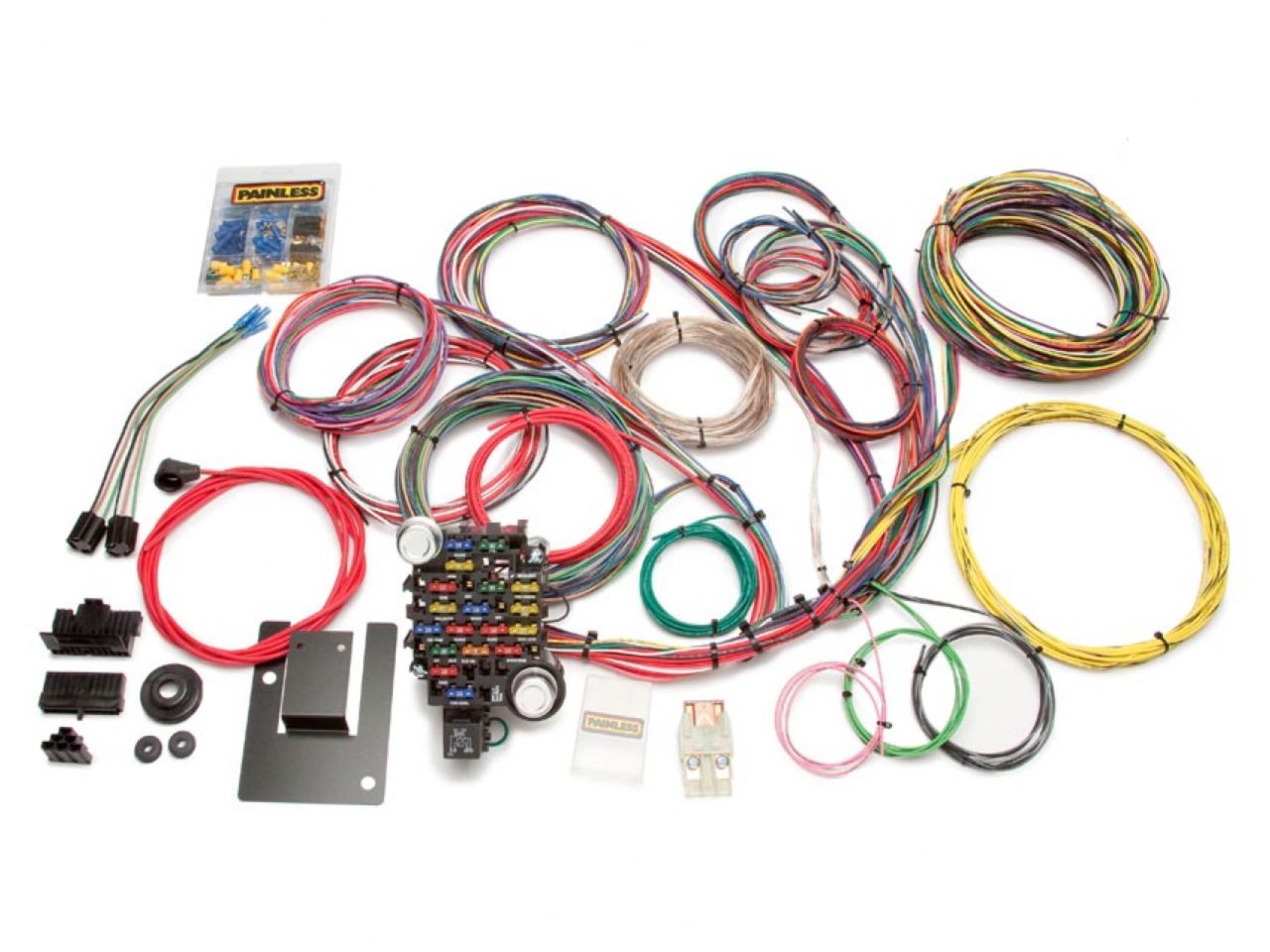

Painless Customizable Classic-Plus Tri-Five Chevy Chassis Harness - 28 Circuits
This 28 circuit kit is designed to fit the 1955-1957 "Tri-Five Chevy" and includes additional circuits for power options and accessories. This harness features a factory location Painless mounting plate for the fuse block, and special dash & turn signal connectors. Included with this harness you will also find pre wire plugs for the headlights and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Specs:
Number of Circuits: 28 Circuits - 18 Fuses w/ Horn Relay & Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: Factory GM
Circuit Designations: Printed on Wires
Chassis wiring harness for:
- 1955 Chevrolet 150, 210, Belair
- 1956 Chevrolet 150, 210, Belair
- 1957 Chevrolet 150, 210, Belair
This harness includes circuits for:
- A/C & Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)*
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
Fuel Gauge
Oil Gauge
Speakers
Tachometer
Temperature Gauge
Voltmeter
Application
Year: 1955 - 1957
Make: Chevrolet
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
