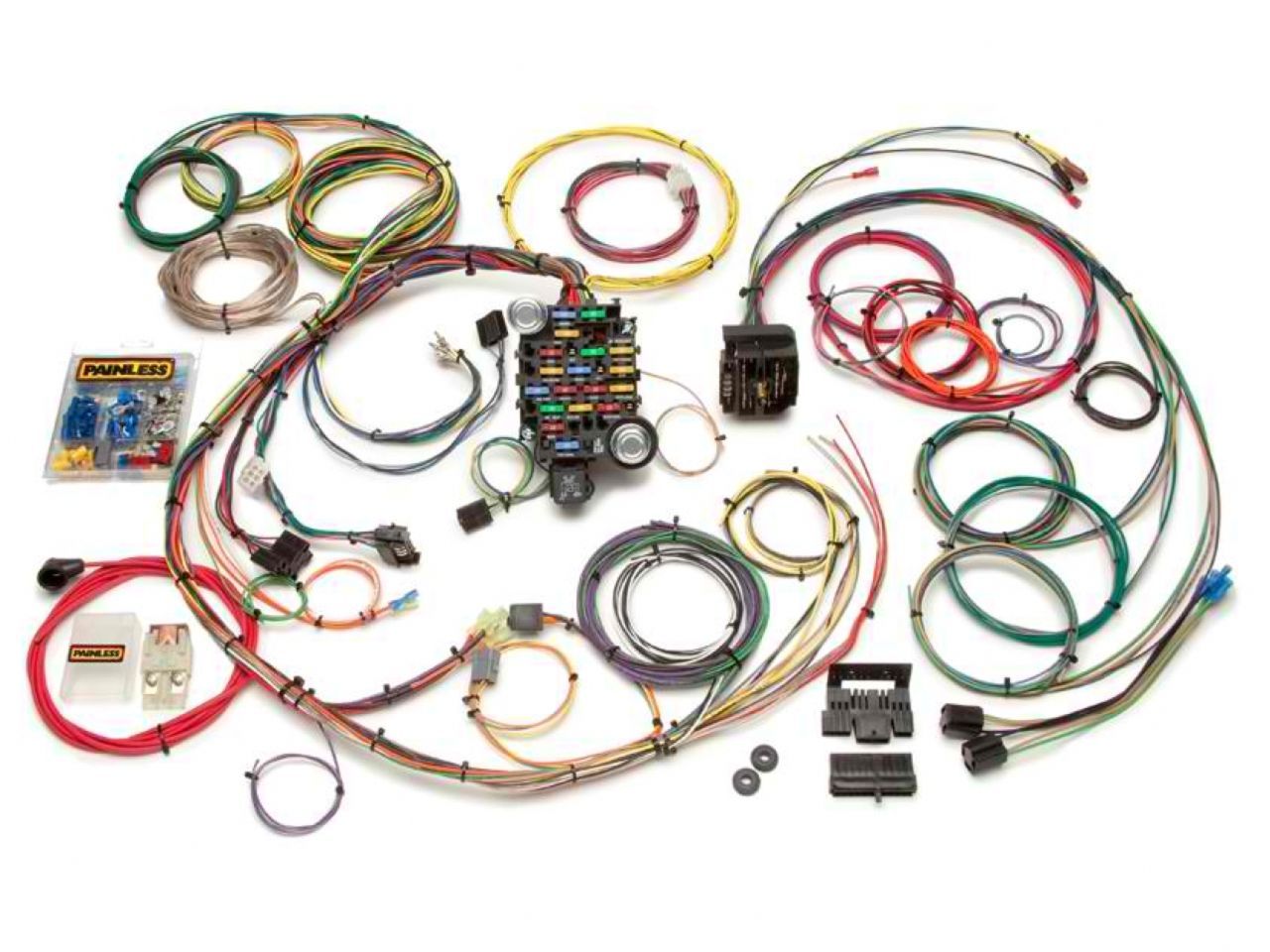

Painless 24 Circuit Classic-Plus Customizable 1967-68 Camaro/Firebird Harness

This 24 circuit harness is designed for the 1967 and 1968 Camaro & Firebird. It uses a '69 and newer style bulkhead connector design along with blade fuses and enough circuits to wire up just about any installed upgrade to your 1st generation F-body. Some minor firewall/bulkhead modification required. Factory original quick connect terminals are included for the in dash printed circuit board.  Pre-terminated plugs for a dimmer switch, headlights & headlight switch, blower motor, wiper motor, and turn signal switch. Included with this harness you'll also find a detailed manual and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.



*note if installing in a Firebird you will need extra head light pig tails as the Firebird has 4 head lights.



Year: 1967 - 1968

Make: Chevrolet

Model: Camaro, Firebird

Engine: Carbureted or Any Stand Alone Fuel Injection

Trans: Any



Number of Circuits: 24 Circuit - 18 Fuses w/ Horn Relay & Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory GM
Circuit Designations: Printed on Wires

Connectors Included: Ignition switch, Turn signal switch, Wiper switch and Factory original, quick connect terminals are included for the in-dash printed circuit board, 10SI & 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.





* Including Wires For:
Cigarette Lighter Light
Brake Warning Light
Fuel Gauge
Generator Light
Oil Gauge
Speakers
Tachometer
Temperature Gauge
Voltmeter
