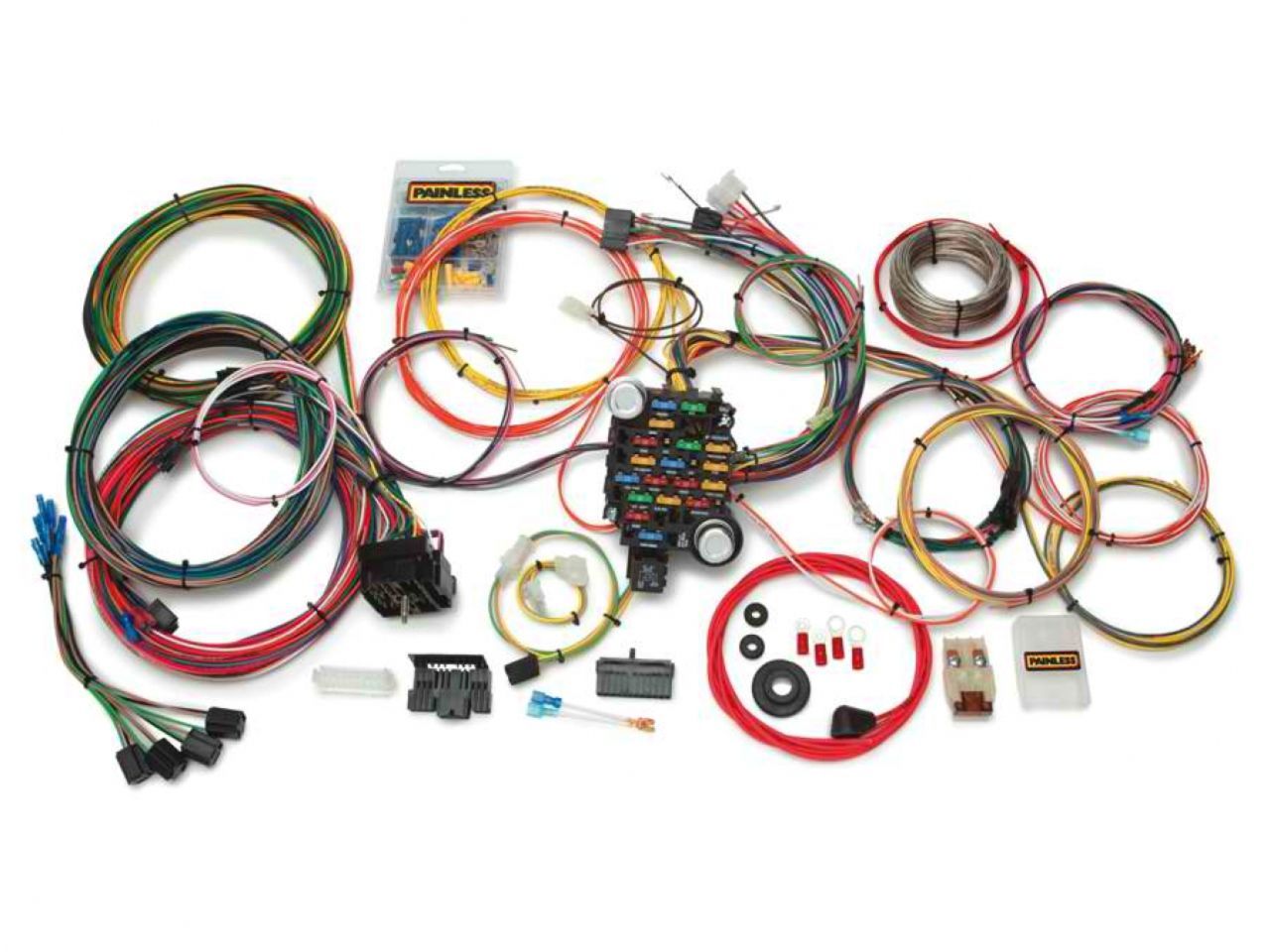

Painless 27 Circuit Classic-Plus Customizable 73-87 GM Pickup T Chassis Harness

Painless 27 Circuit Classic-Plus Customizable 73-87 GM Pickup T Chassis Harness

Regular price $1,051.80
Regular price $1,383.95 Sale price $1,051.80
Sale Sold out

Out of stock

Quantity

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Shipping weight
13.7 lb
Barcode
749823102057

Billable shipping weight; may include dimensional weight.

This 27 circuit 1973-1987 GMC/Chevy harness was designed to fit the trucks, Blazers, and Suburbans. It features a factory style bulkhead connector and has many of the factory connectors already installed on the harness out of the box. Including: the headlight connectors & switch, dimmer switch, wiper motor, ignition switch, blower motor & switch, blower resistor, and instrument cluster. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.

Year: 1973 - 1987
Make: Chevrolet or GMC
Model: C & K Truck/SUV
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans: Any

Number of Circuits: 27 Circuits - 18 Fuses w/ Horn Relay & Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory GM
Circuit Designations: Printed on Wires
Connectors Included: Ignition switch, headlight switch, dimmer swtich, wiper motor, blower switch, blower motor, blower resistor, instrument cluster and headlights, 10SI & 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.

This harness includes circuits for:
  • A/C & Heat
  • Accessory / Camper Cover Light
  • Accessory / Cigarette Lighter
  • Accessory / Four Wheel Drive Switch
  • Backup Lights
  • Brake Lights
  • Charging
  • Cruise Control
  • Dome and Courtesy Lights
  • Electric Choke
  • Electric Fuel Pump
  • Emergency Flashers
  • Fan Relay Activation Power
  • Fused Power Source
  • Headlights
  • Horn (Relay)
  • Ignition Coil
  • Instrument Panel Lighting and Gauges*
  • Park Lights
  • Power Door Locks
  • Power Windows
  • Radio/Clock (Constant and Switched)*
  • Starting
  • Tail Lights
  • Third Brake Light
  • Turn Signals
  • Wipers and Washer Pump
* Including Wires For:
Brake Warning Light
Four Wheel Drive Light
Fuel Gauge
Oil Gauge
Speakers
Tachometer
Temperature Gauge
