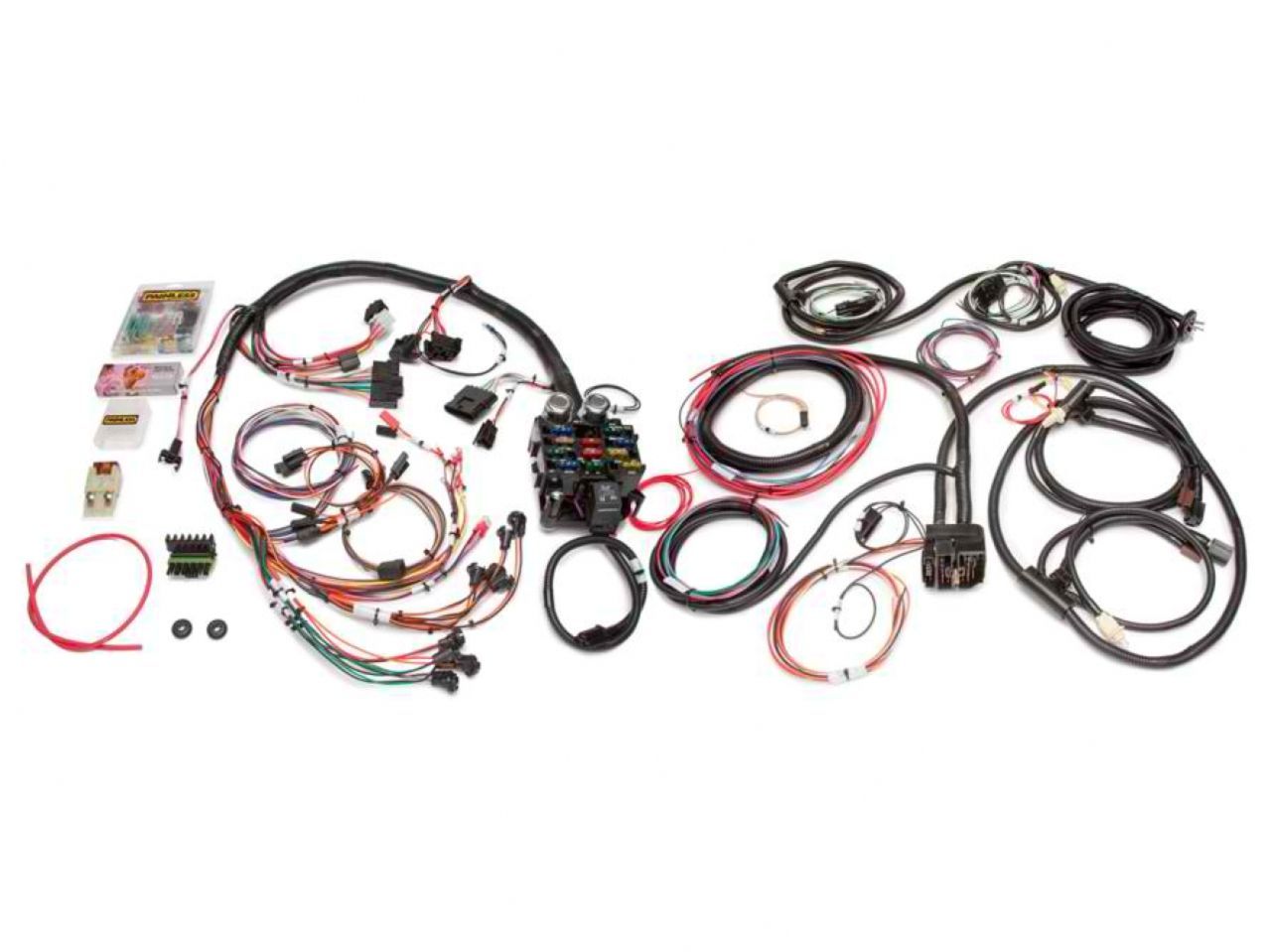

Painless Engine Harnesses 10150 Item Image
Painless

Painless 21 Circuits Direct Fit Jeep CJ Harness - 1976-1986

SKU: 0X8KK | MPN:  10150
Only 43 units left
Sale price$934.99 USD
Not just a quick wash and a coat of wax on the old 10110, the new 10150 Direct Fit 1976-1986 Jeep CJ harness has undergone a complete "frame off" restoration. The new and improved harness addresses many issues that occasionally came up when trying to install the previous version.

Now included is a fully integrated ground circuit that connects directly to the negative side of the battery and provides a clean ground source to every component, as well as offering individual wires to help ground the dash and core support. This is a key addition for those using fiberglass bodies.

The charging system wiring has also been improved, now using 6 gauge charge wire and an inline 100 amp fuse, allowing hassle free usage of high amperage alternators. No more sourcing larger charge wire, piggybacking additional wire, or sourcing a larger inline fuse or fuse holder. The new 10150 comes out of the box capable of supporting a 100 amp alternator.

Connections for more factory CJ options have also been added. These additions include:

  • Factory V6 & V8 Tachometers-  Inline connections are now provided at the ignition switch, just like a factory harness, that plug into the wire leads found on factory V6 & V8 tachometers.
  • Factory Clock- Two connectors that provide power and ground to the clock and clock backlighting that plug directly into a factory clock. These connectors can be removed to allow connection to a universal CJ clock as well.
  • Automatic Transmission Steering Column- Reverse switch and neutral safety switch connections for those using automatic transmission columns.
  • Under Hood Light- A factory style connection is now supplied in the engine harness. This connection will simply plug directly into the factory under hood light.
  • Manual Transmission Pigtail- The old 10110 has always had a connection for manual transmissions, however, the 10150 now also comes with a transmission pigtail. This pigtail allows for the total replacement of the neutral safety switch, reverse switch, and four wheel drive indicator switch wires, where as the previous 10110 simply plugged into the existing factory transmission pigtail. Some assembly will be required to this pigtail based on the transmission your CJ currently has, instructions and details are provided.
  • Factory Tail Light Connectors-  Factory style molded connectors for the tail lights are now pre-installed onto the tail harness, allowing for a true plug and play connection to those using factory tail lights. For those using aftermarket lights which do not have the factory molded connector, a pair of Weather -Pac connectors is also provided to produce a clean, weatherproof connection.
  • Molded Trailer Connector- Now included pre-spliced in the Tail Section of the harness is a connector for connecting to trailer lighting. This connector will supply tail light power, left and right turn/brake power, as well as a clean ground source. A mate to the pre-installed connector is even provided.
  • Factory Style parts Kit- This kit will provide factory style connectors and terminals for many visible connections. This makes for a cleaner appearing install. Also included are harness attachment clips that fit the ¼" holes left behind by the factory harness attachment clips.
  • Bulbs- The 10150 now includes all the bulbs needed for front turn/park and marker lights, rear turn/brake/tail and marker lights, as well as gauge cluster bulbs. Dielectric grease is also provided to prevent corrosion to the bulbs and headlight connections.

The biggest improvement to this harness is the all new full color instruction manual. This manual provides 140+ pages of color schematics, photos, and step by step instructions to wiring your CJ from headlight to tail light and covers most popular aftermarket add-ons as well.

NOTE: This harness is setup for use with factory carbureted engines only. However it will also accept any standalone fuel injection system.

Year: 1976 - 1986
Make: Jeep
Model: CJ
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans: Any

Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Midi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory Jeep
Circuit Designations: Printed Wire Tags on all Connectors and Printed on Wire for Open Ended Wires

This harness includes circuits for:
  1. A/C & Heat
  2. Accessory / Cigarette Lighter
  3. Backup Lights
  4. Brake Lights
  5. Charging
  6. Dome Light
  7. Electric Choke
  8. Emergency flashers
  9. Fused Power Source
  10. Headlights
  11. Horn (Relay)
  12. Ignition Coil
  13. Instrument Panel Lighting and Gauges*
  14. Park Lights
  15. Radio/Clock (Constant and Switched)
  16. Relay Activation / Accessory Power
  17. Starting
  18. Tail Lights and Trailer Lights
  19. Turn Signals
  20. Under Hood Light
  21. Wipers and Washer Pump

* Including Wires For:
Brake Warning Light
Dash Label Lighting
Four Wheel Drive Light/Indicator
Fuel Gauge
Gear Indicator Light
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
