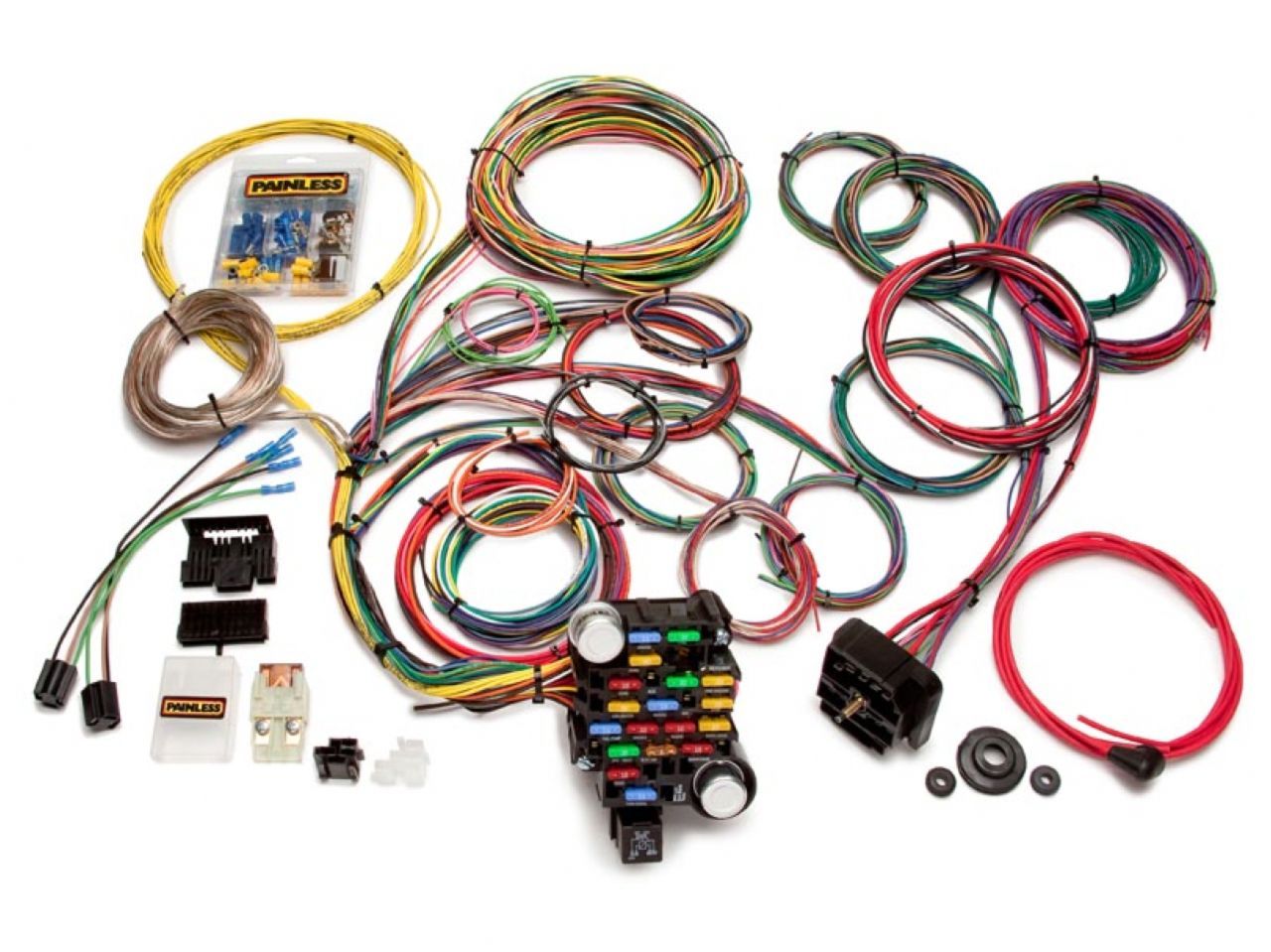

Painless Customizable Weatherproof Chassis Harness - 26 Circuits
The 26 circuit Painless weatherproof harness can be used to update the wiring in just about any offroad vehicle. This tough kit features: a weatherproof fuse block with an o-ring sealed cover, weatherproof heat sealed crimp-on terminals, weatherproof horn relay and machined crimped splices with weatherproof shrink tubing. This wiring harness is adaptable to many of the original connector plugs in your vehicle and includes; pre-wired plugs for the headlights; GM turn signal & column mounted ignition switch connectors.
Specs:
Number of Circuits: 26 Circuits - 20 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: Universal
Circuit Designations: Printed on Wires
Connectors Included: GM Column Mounted Ignition and Turn Switches, Dimmer Switch and two Headlight Pigtails
This harness includes circuits for:
- A/C & Heat
- Accessory #1 (Switched B+)
- Accessory #2 (Switched B+)
- Accessory #3 (Switched B+)
- Accessory #4 ( B+)
- Accessory #5 ( B+)
- Accessory #6 (Switched B+)
- Accessory / Cigarette Lighter
- Brake Lights
- Charging
- Fan Relay Activation Power
- Dome Light
- Electric Choke
- Emergency Flashers
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
Application
Year: Universal
Make: Universal
Model: Universal
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
