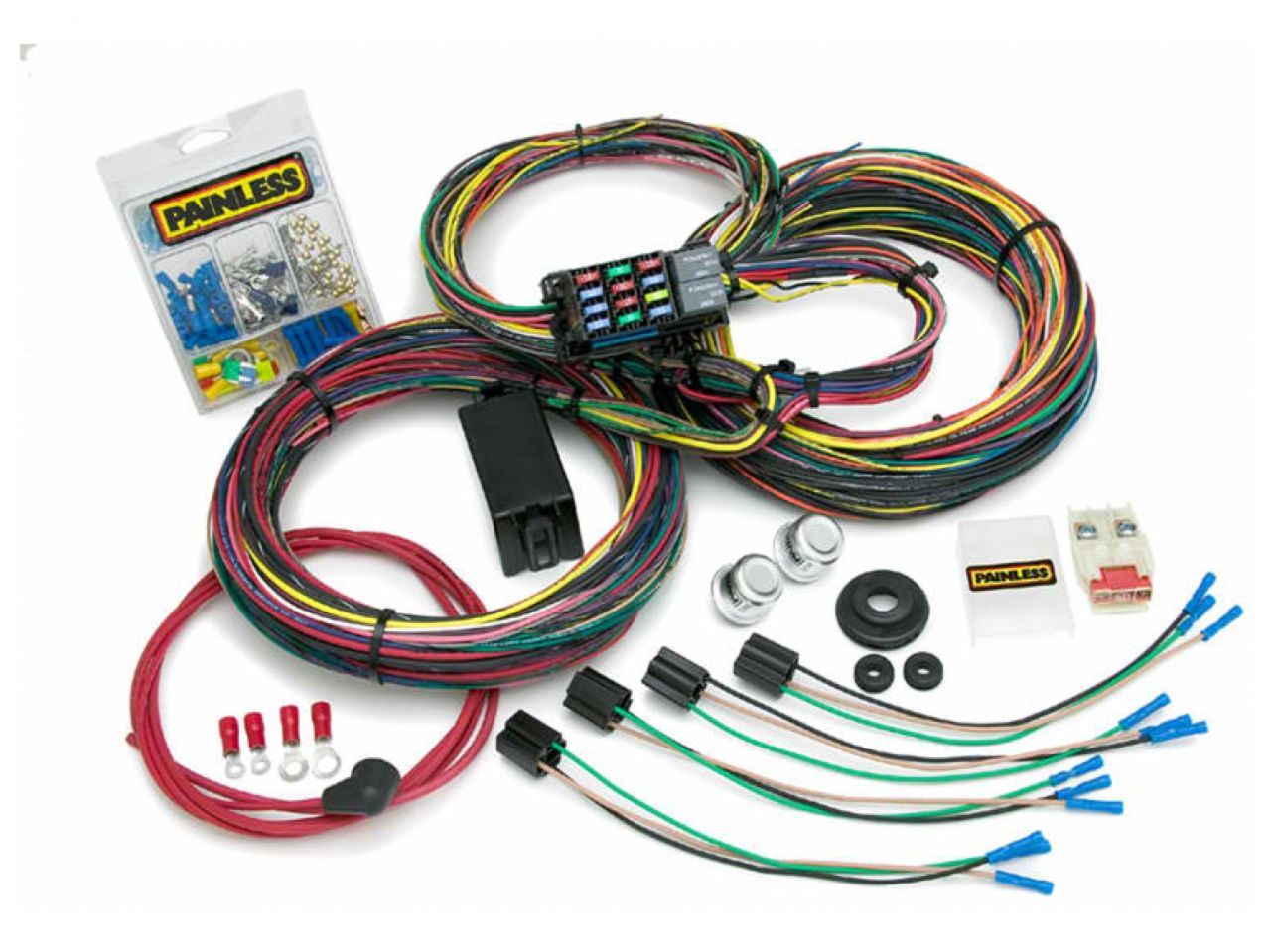

Painless Customizable Mopar Color Coded Chassis Harness - 21 Circuits
This 21 circuit harness is designed for the 1966 - 1976 Dodge, Chrysler / Mopar muscle cars including Baracuda, Imperial, Belvedere, Satellite, Charger, GTX, Dart, Road Runner, Challenger, Demon, and Duster. This harness elimintes the troublesome bulkhead connector, and uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with a 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Mopar color codes for easy installation.
Year: 1966 - 1976
Make: Chrysler, Dodge
Model: Baracuda, Imperial, Belvedere, Satellite, Charger, GTX, Dart, Road Runner, Challenger, Demon and Duster
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans: Any
Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Factory Chrysler
Circuit Designations: Printed on Wires
Harness Length: Universal
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Factory Chrysler
Circuit Designations: Printed on Wires
This harness includes circuits for:
- A/C & Heat
- Accessory (Relay)
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
Fuel Gauge
Gear Indicator Light
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
Fuel Gauge
Gear Indicator Light
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
