Painless Direct Fit Bronco Harness w/switches (1966-1977) - 28 Circuits
Painless Direct Fit Bronco Harness w/switches (1966-1977) - 28 Circuits
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Chassis Wiring Harness
- Category
- Wiring Harnesses
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 13.5 lb
- Barcode
- 749823101135
Billable shipping weight; may include dimensional weight.

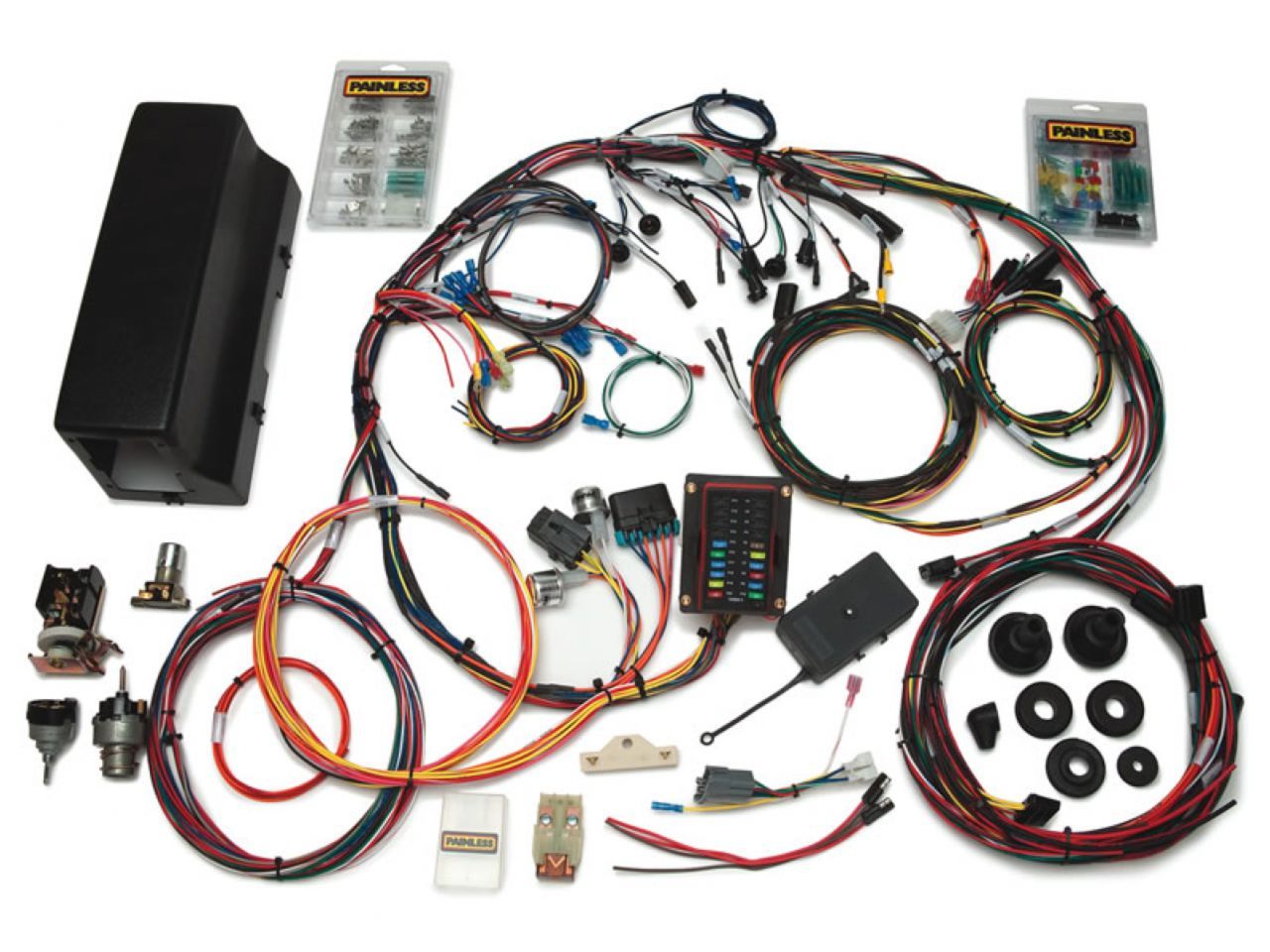

Designed with input from Ford Bronco owners everywhere, this Painless Performance 28 circuit direct fit 1966-1977 Bronco wiring harness sets a new standard in chassis wiring. This harness includes a molded plastic glove box that not only replaces the factory cardboard one that also mounts our weatherproof fuse block. You'll also find factory-style molded exterior light connectors, Ford turn signal connectors and a Ford dimmer switch connector. This harness has most of the factory connections are already pre-terminated. Also available is an 80+ page full color step by step install manual with over 80 photos, drawings and harness schematics. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.
This kit includes the following switches: Headlight, Wiper, Ignition, and Dimmer.
Here are some of the great features included with this kit.

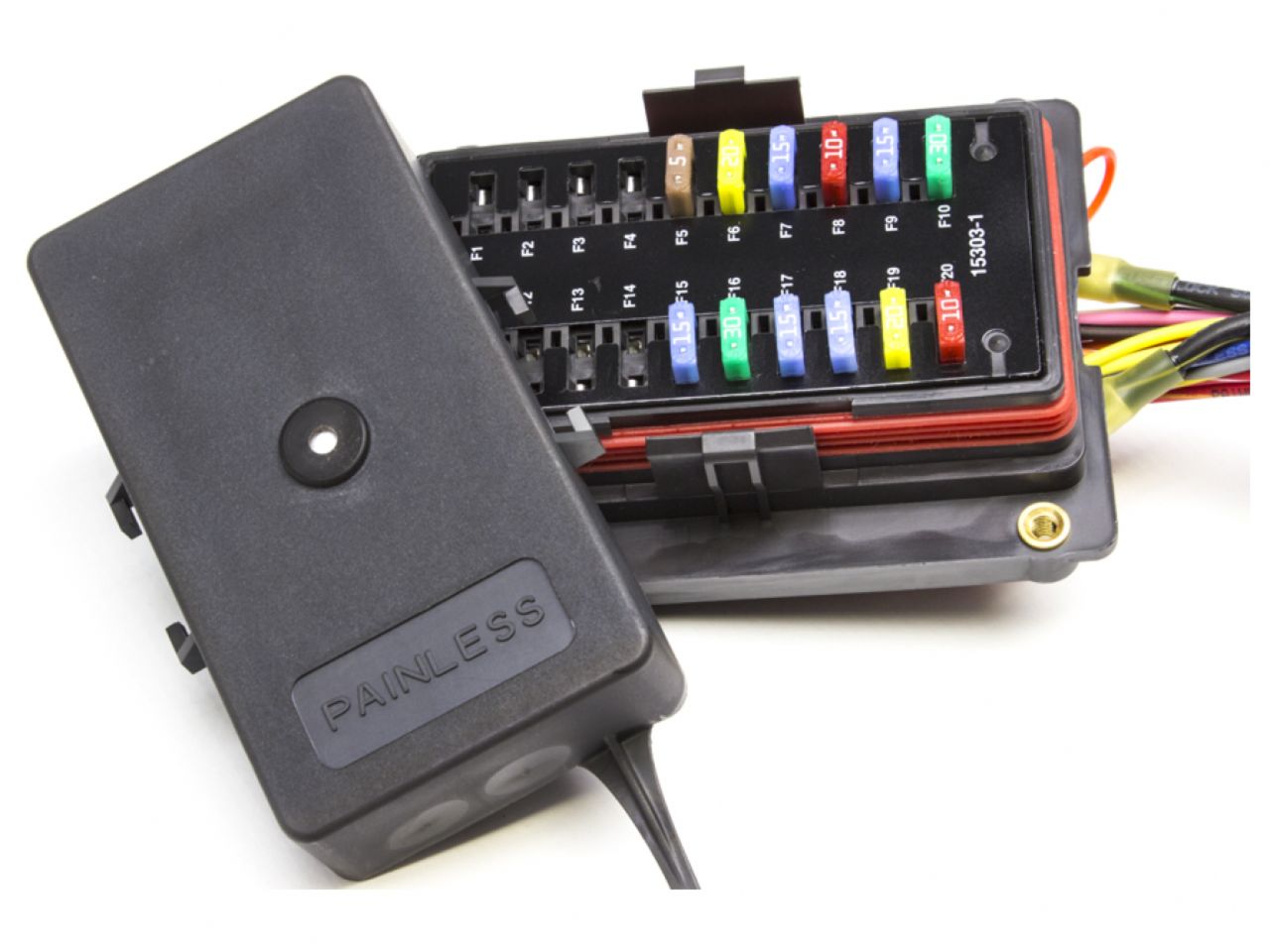

1.The heart of your new Bronco wiring harness is centered around this weatherproof fuse block. With 28 total circuits and 9 accessories circuits, this harness will support most features and add-ons you want to add to your Bronco.

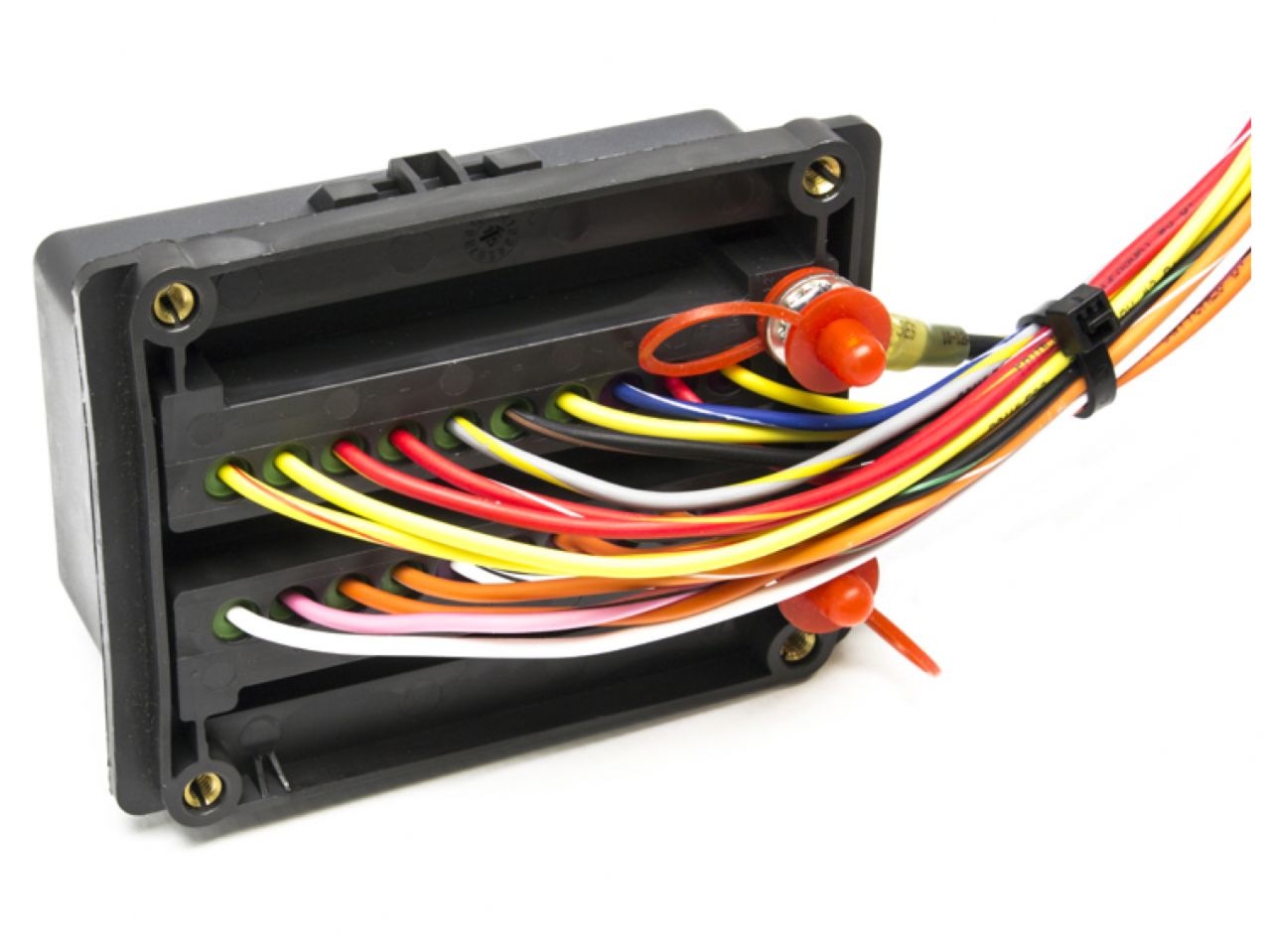

2.Underneath the fuse block we can see the weatherproof terminals and covered power supply post.

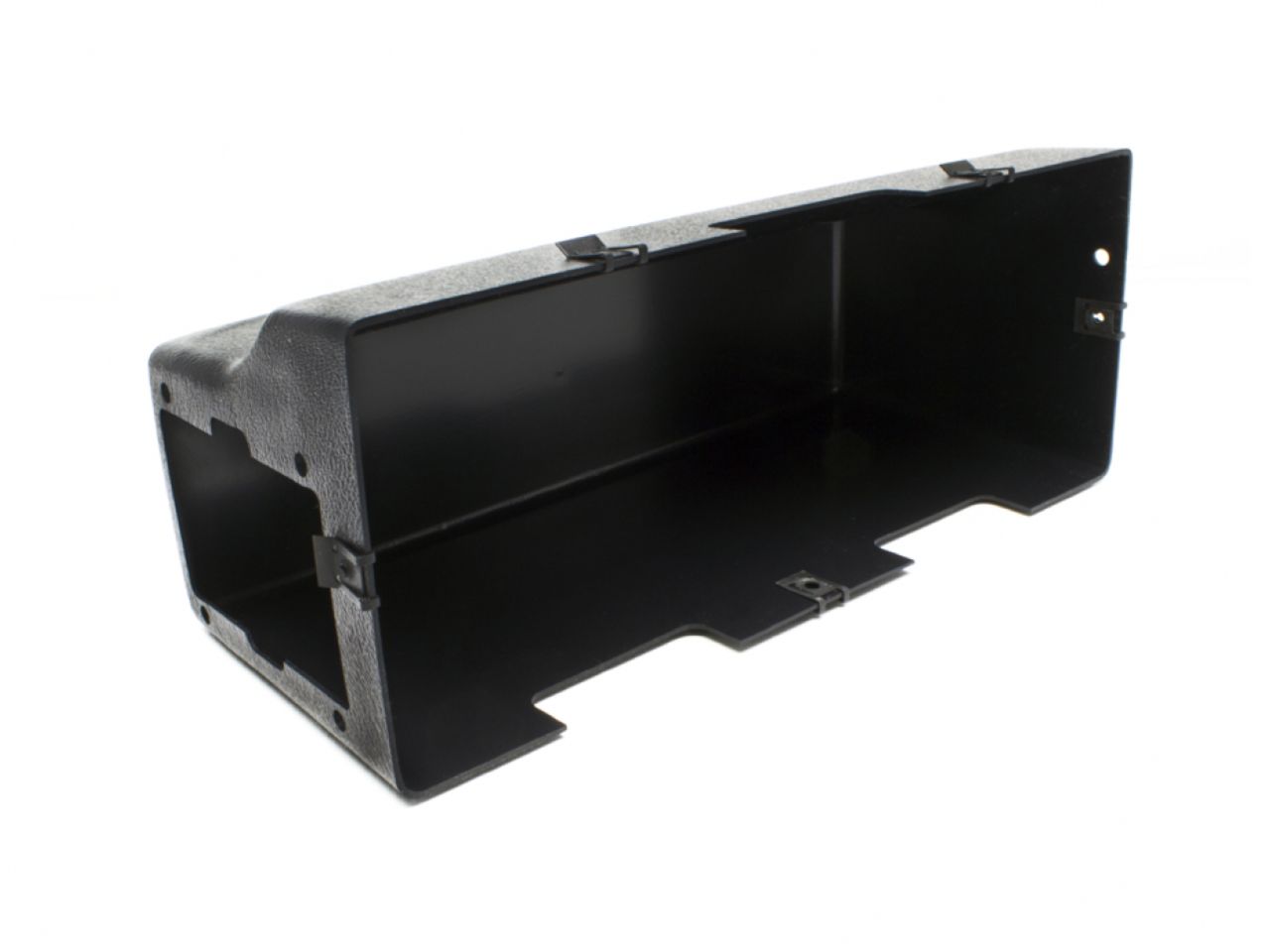

3.Included with your Bronco harness is a custom molded glovebox. This is also the mounting location for your fuse block.
4.Properly mounting and routing your wiring harness is a critical step to avoid any premature wear to your wiring. We provide you with enough zip ties and grommets to make sure you avoid any issues.

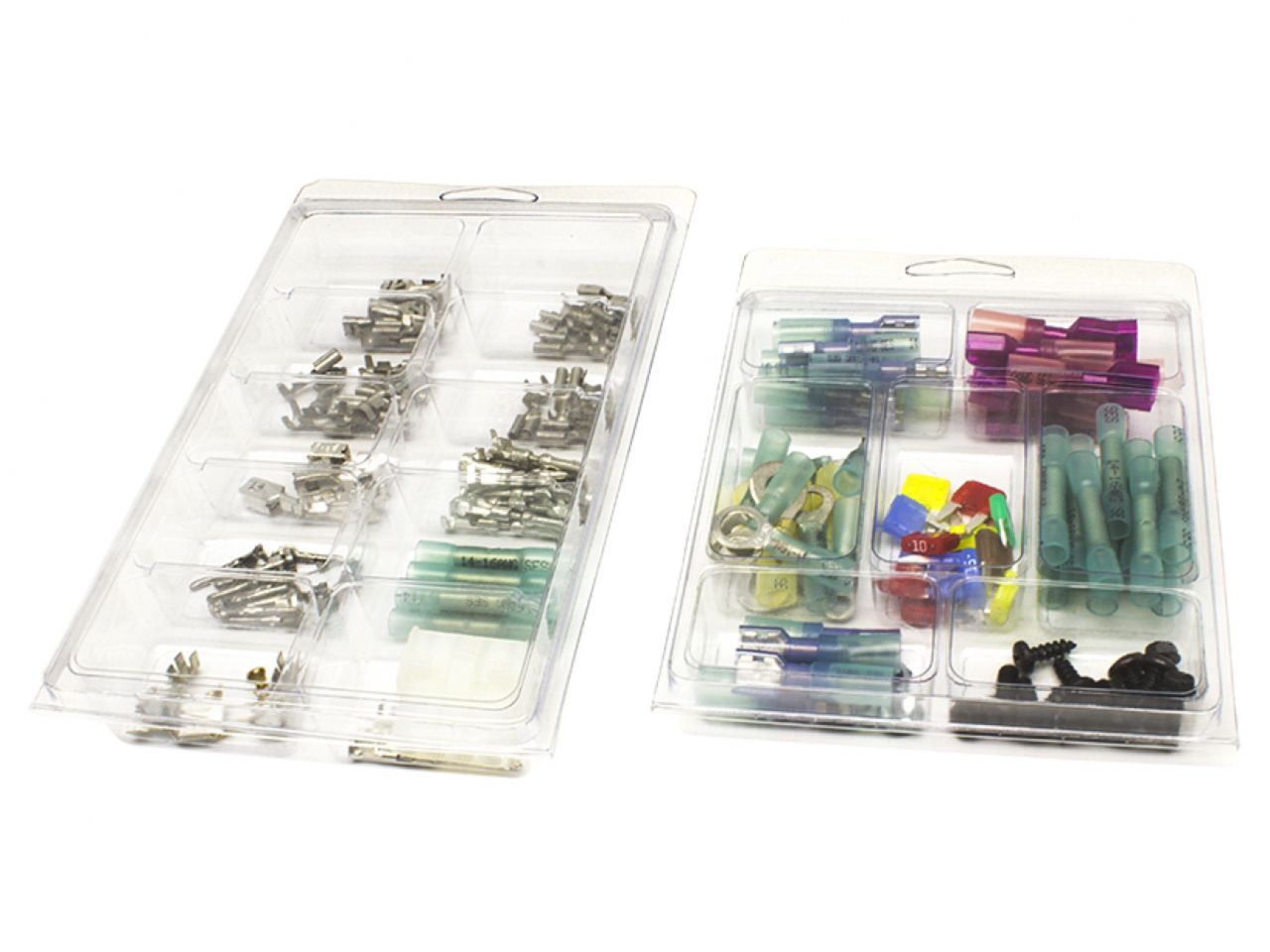

5.Included in your parts kit you'll find terminals, weatherproof splices, screws, extra fuses etc.

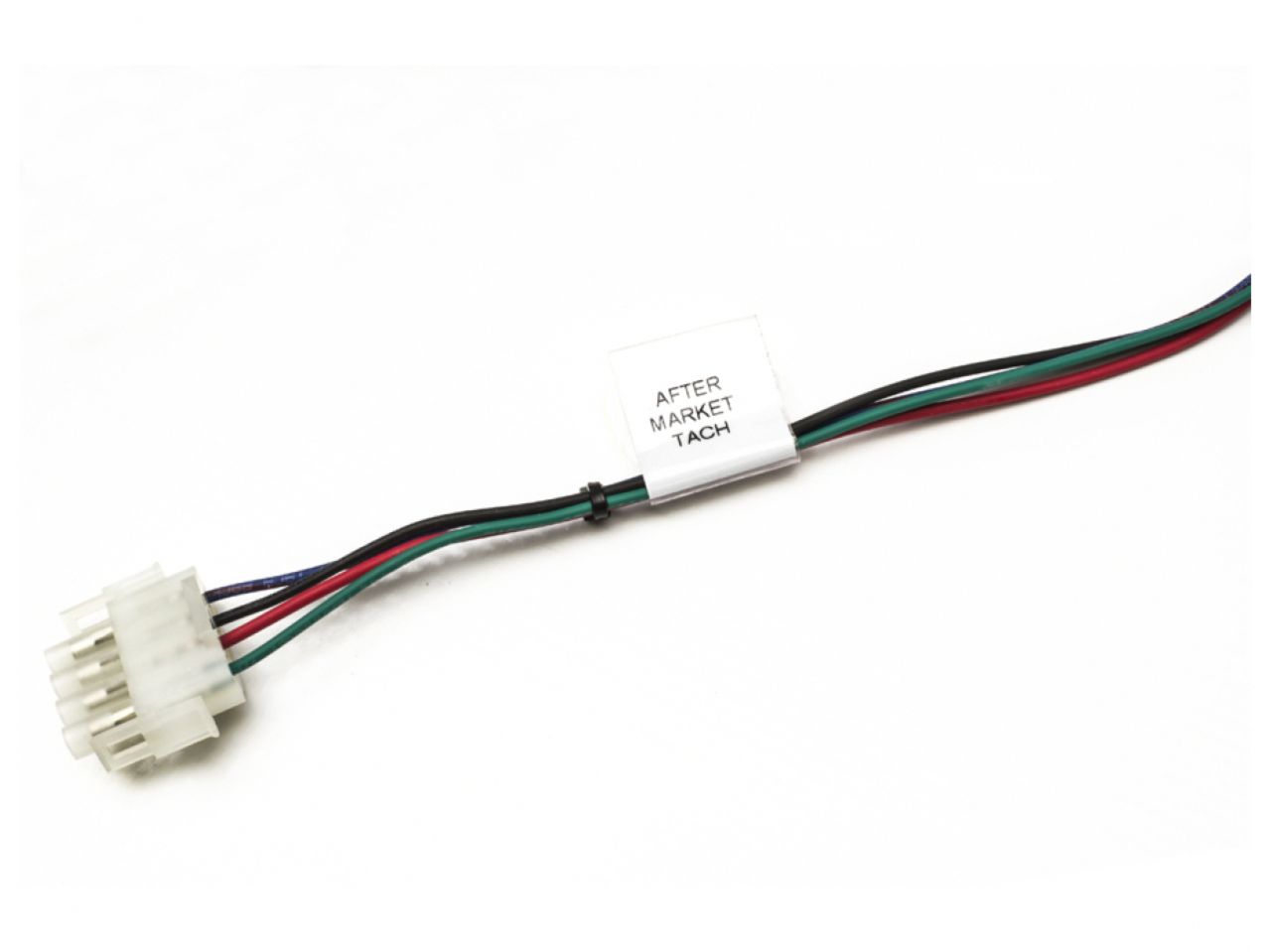

6.One of the many features of your new Bronco harness allows you to add an aftermarket tach.

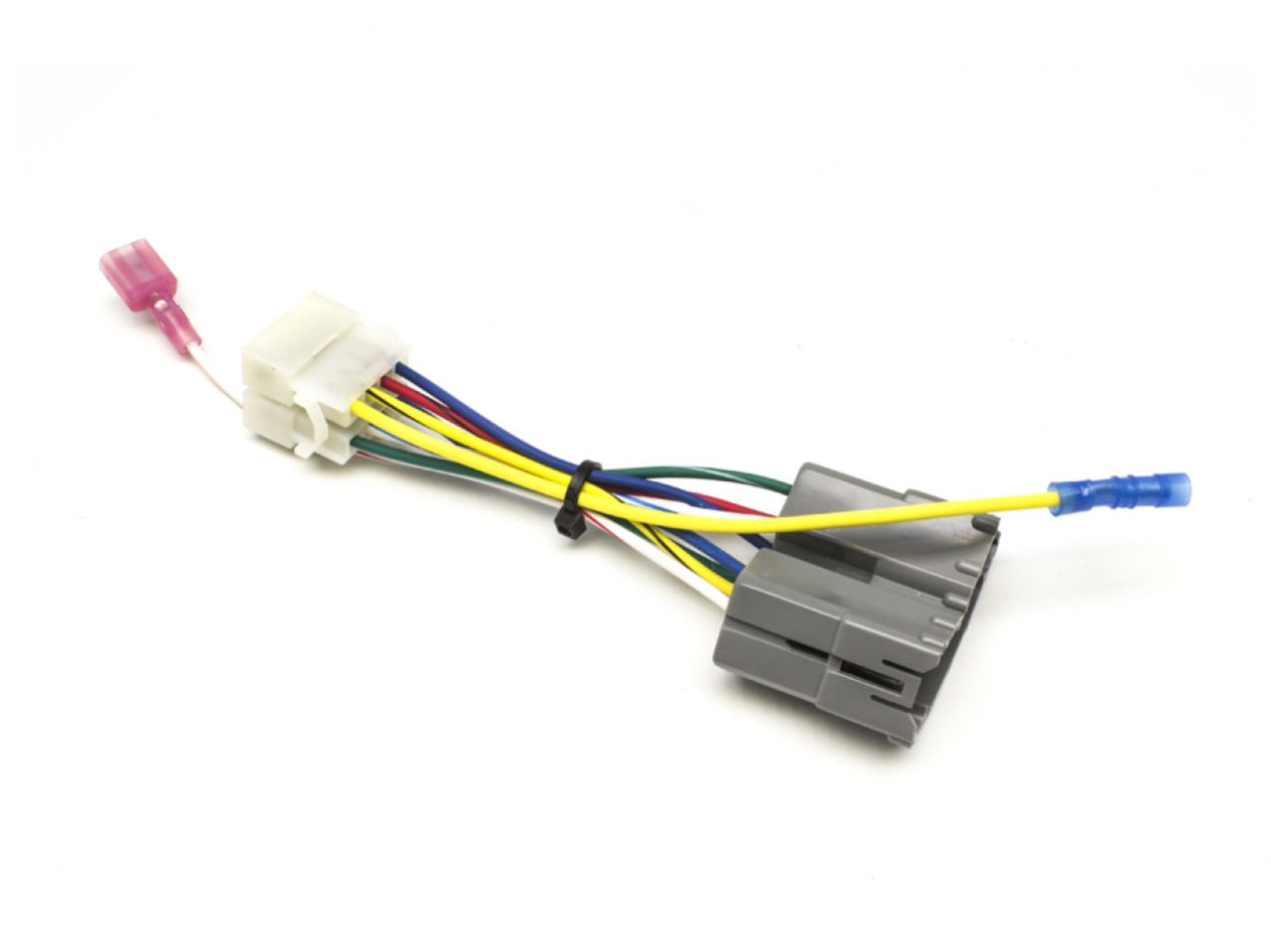

7.No matter if you have an early, mid, or later model column, we've provided you with a pigtail to adapt them all to your new Bronco harness.

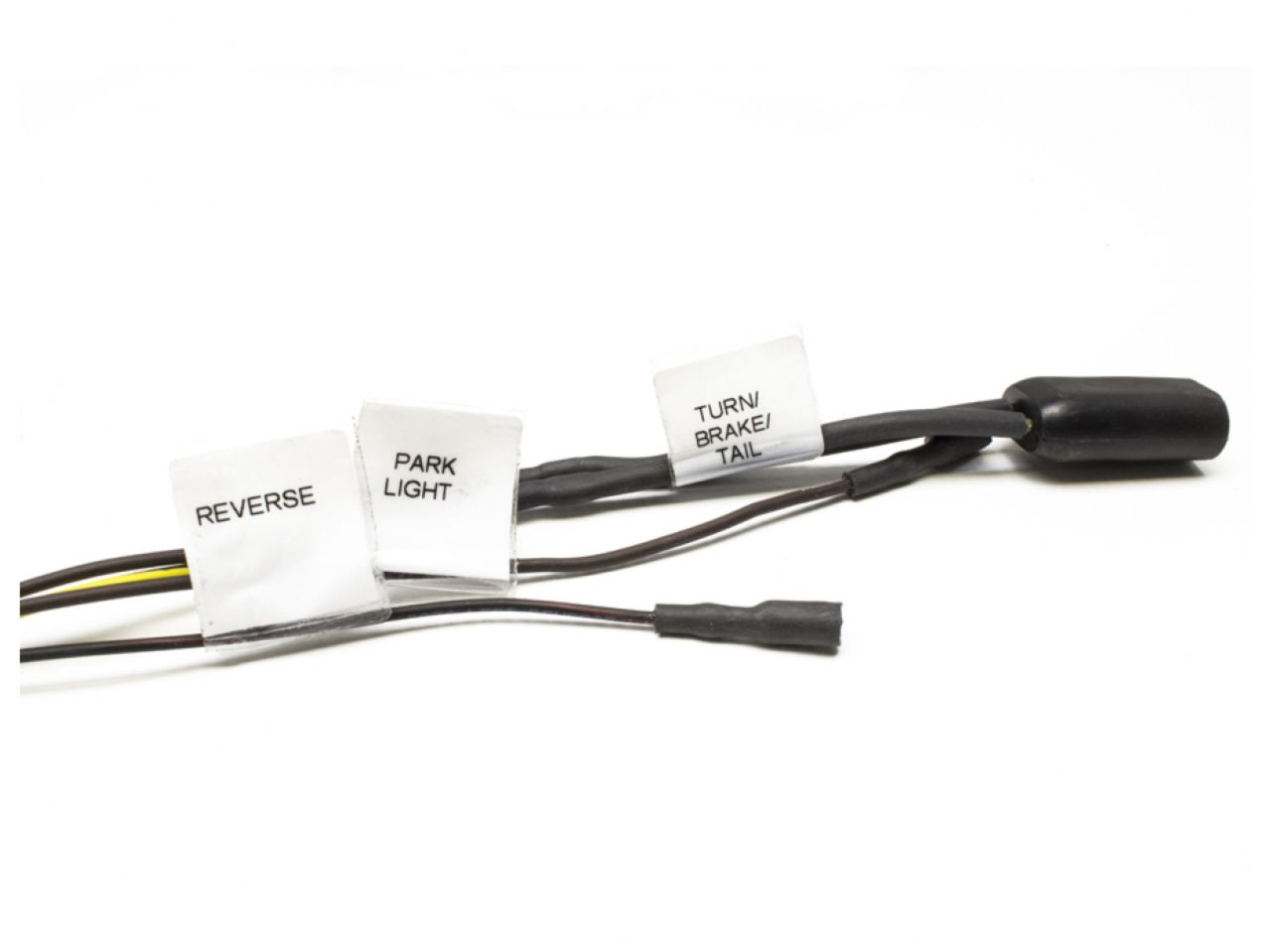

8.All of your rear lights are properly insulated making for a plug-n-play install.

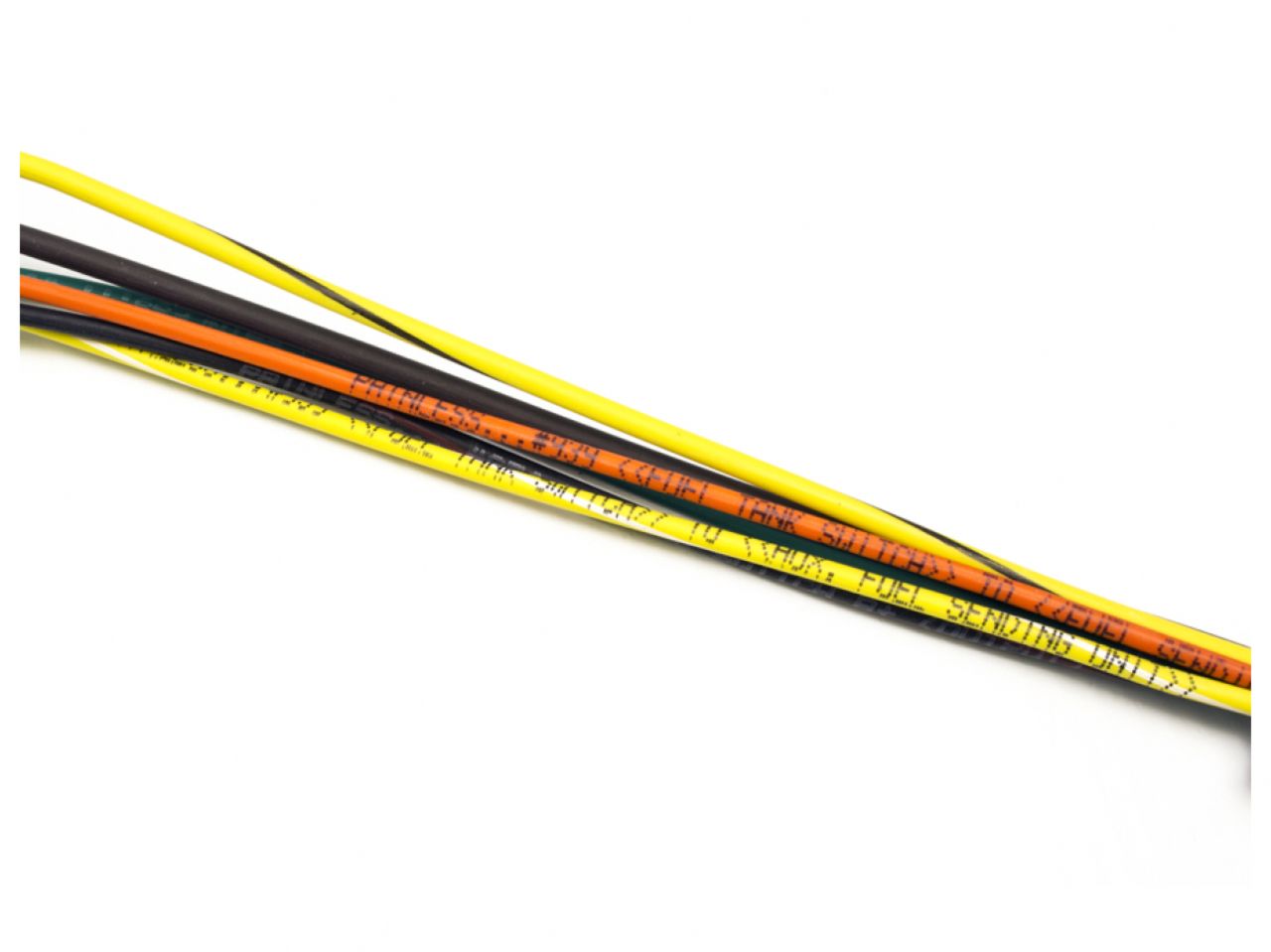

9.As with every wiring kit from Painless, you'll find our signature printed wire. They tell you the wire number, where it's coming from, and where it's going to.
Application
Year: 1966 - 1977
Make: Ford
Model: Bronco
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
