Painless Direct Fit Jeep YJ Harness (1987-1991) - 23 Circuits

Painless Direct Fit Jeep YJ Harness (1987-1991) - 23 Circuits

Regular price $1,257.76
Regular price $1,654.95 Sale price $1,257.76
Sale Sold out

Shipping calculated at checkout.

15 in stock

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

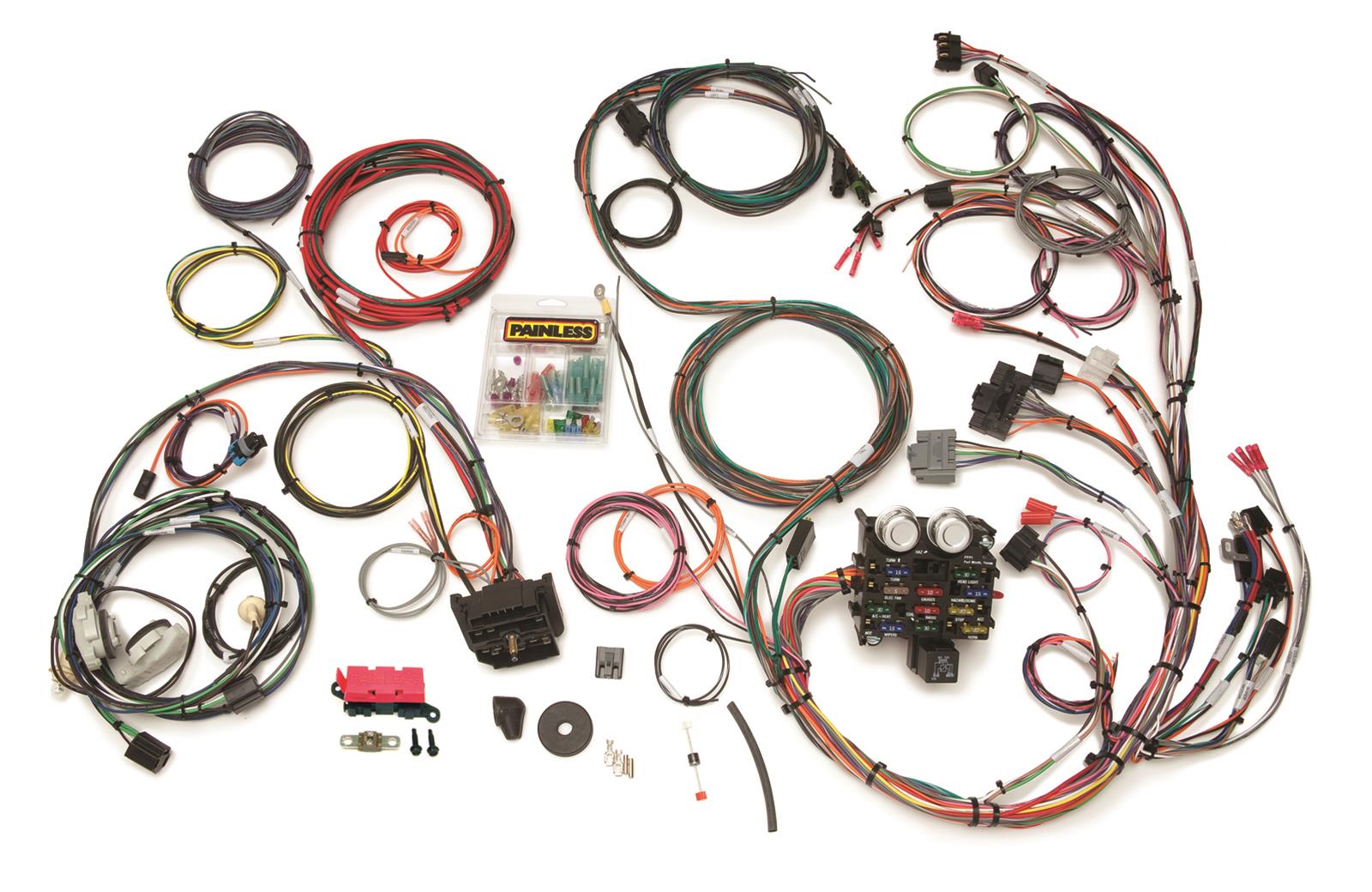

This Painless Performance 23 circuit direct fit harness for 1987 to 1991 YJ Jeeps features a factory-style bulkhead connector that mounts the fuse block in the OEM location. This Jeep harness includes all the connectors and terminals needed. Included in this kit you will find a detailed manual and all of the wires are factory color coded and labeled for an easy install.Factory EFI and emissions ICM are not supported.

Specification

Number of Circuits: 23 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory Jeep
Circuit Designations: Printed Wire Tags on all Connectors and Printed on Wire for Open Ended Wires
Connectors Included: Dimmer switch, speedometer, turn switch, ignition switch, gauge cluster, wiper switch, brake switch, wiper motor, tachometer, heater resistor, heater switch, tail lights, fuel tank, washer pump, horn, headlights, marker lights, blower motor and turn/park lights.

This harness includes circuits for:

  • A/C & Heat
  • Accessory / Cigarette Lighter
  • Backup Lights
  • Brake Lights
  • Charging
  • Dome and Courtesy Lights
  • Electric Choke
  • Electric Fuel Pump
  • Emergency flashers
  • Fan Relay Activation Power
  • Fuel Injection Power
  • Fused Power Source
  • Headlights
  • Horn (Relay)
  • Ignition Coil
  • Instrument Panel Lighting and Gauges*
  • Park Lights
  • Radio/Clock (Constant and Switched)
  • Starting
  • Tail Lights and License Plate Light
  • Third Brake Light
  • Turn Signals
  • Wipers and Washer Pump (Front and Rear)

* Including Wires For:
Brake Warning Light
Four Wheel Drive Light
Fuel Gauge
HVAC Panel Lighting
Oil Gauge
Tachometer
Temperature Gauge

Automotive chassis wiring harness fits:

  • 1987 Jeep YJ**
  • 1988 Jeep YJ**
  • 1989 Jeep YJ**
  • 1990 Jeep YJ**
  • 1991 Jeep YJ**

Application

Year: 1987 - 1991
Make: Jeep
Model: YJ
Engine: Carbureted or Any Stand Alone Fuel Injection
