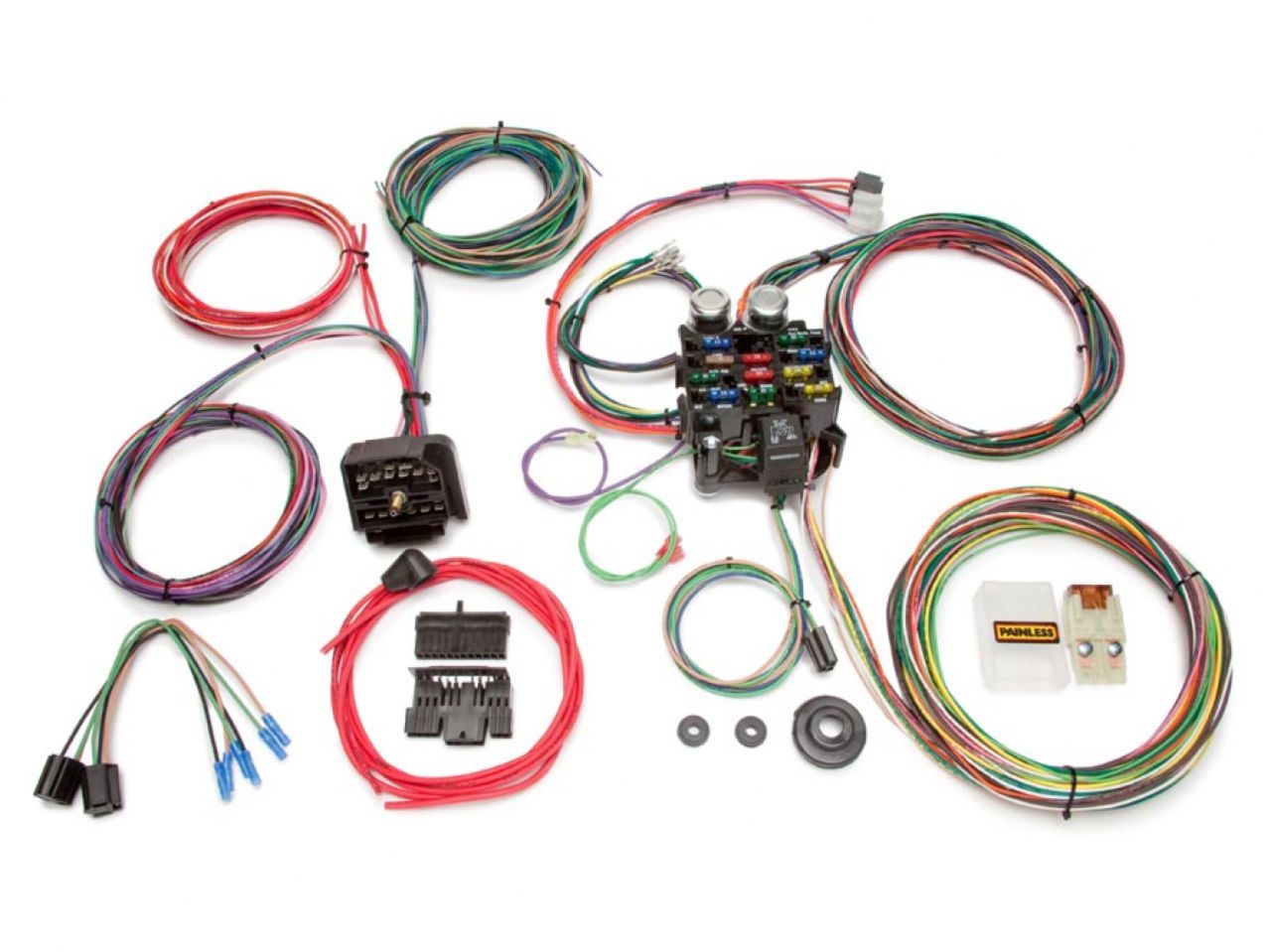

Painless Classic Customizable Jeep CJ Harness (1976-1986) - 22 Circuits

Painless Classic Customizable Jeep CJ Harness (1976-1986) - 22 Circuits

Regular price $659.99
Regular price $659.99 Sale price $659.99
Sale Sold out

Out of stock

Quantity

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

This 22 circuit Painless Performance factory upgrade for 1975 & later CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of wires for your CJ. This harness is designed to be a customizable kit, and routes the wire through the firewall via a bulkhead connector. Like from the factory on your Jeep, the ignition switch is in the column. This kit includes GM column mounted ignition switch connectors and a GM column mounted turn signal switch connector pre-terminated and ready to install. Also included are pre-wire plugs for headlights and the dimmer switch. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.

Specs:

Number of Circuits: 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory Jeep
Circuit Designations: Printed on Wires
Connectors Included: Column Mounted Ignition Switch, Turn Switch, Dimmer Switch, Two Headlight Pigtails, 10SI & 12 SI Alternator, HEI Power and Tach and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.

This harness includes circuits for:

  • A/C & Heat
  • Accessory / Cigarette Lighter
  • Backup Lights
  • Brake Lights
  • Charging
  • Dome Light
  • Electric Choke
  • Emergency flashers
  • Fan Relay Activation Power
  • Fused Power Source
  • Headlights
  • Horn (Relay)
  • Ignition Coil
  • Instrument Panel Lighting and Gauges*
  • Park Lights
  • Radio/Clock (Constant and Switched)
  • Starting
  • Tail Lights
  • Third Brake Light
  • Turn Signals
  • Under Hood Light
  • Wipers

* Including Wires For:
Emergency Brake Light
Four Wheel Drive Light
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter

Application

Year: 1975 - On
Make: Jeep
Model: CJ6 - CJ7
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
