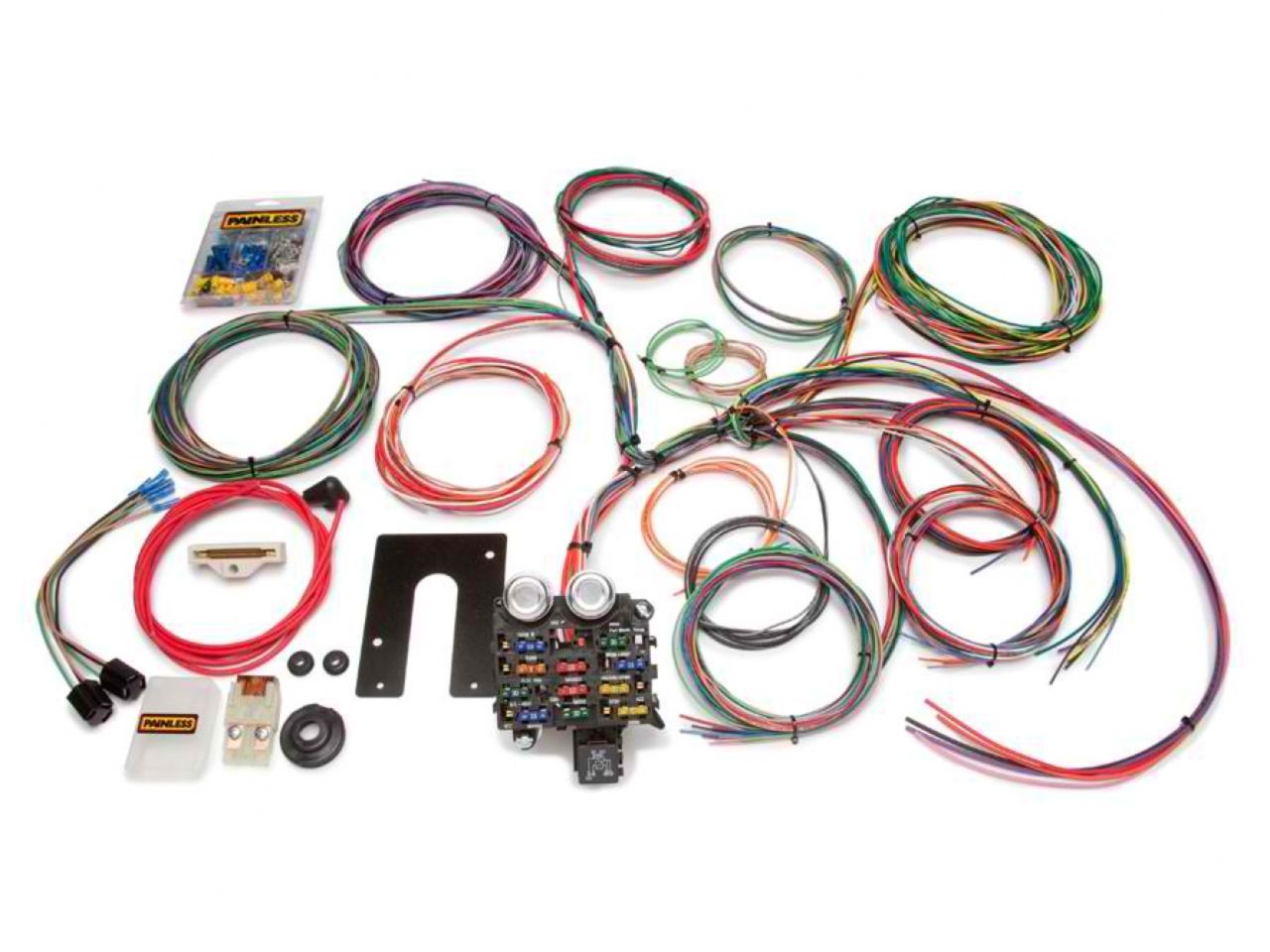

Painless 22 Circuit Classic Customizable Jeep CJ Harness - 1975 & Earlier

This 22 circuit factory upgrade harness for 1974 & earlier CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of wires. This harness routes the wires through a grommet in the bulkhead and the ignition switch is in the dash. Also included are pre-wire plugs for headlights. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.



Year: 1974 & Earlier

Make: Jeep

Model: CJ2 & CJ5

Engine: Carbureted or Any Stand Alone Fuel Injection

Trans: Any



Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory Jeep
Circuit Designations: Printed on Wires
Connectors Included: Two Headlight Pigtails, 10SI & 12 SI Alternator, Dimmer Switch and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.





* Including Wires For:
Brake Warning Light
Emergency Brake Light
Four Wheel Drive Light
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
