Painless Classic Customizable Pickup Chassis Harness - Non GM Keyed Column - 21

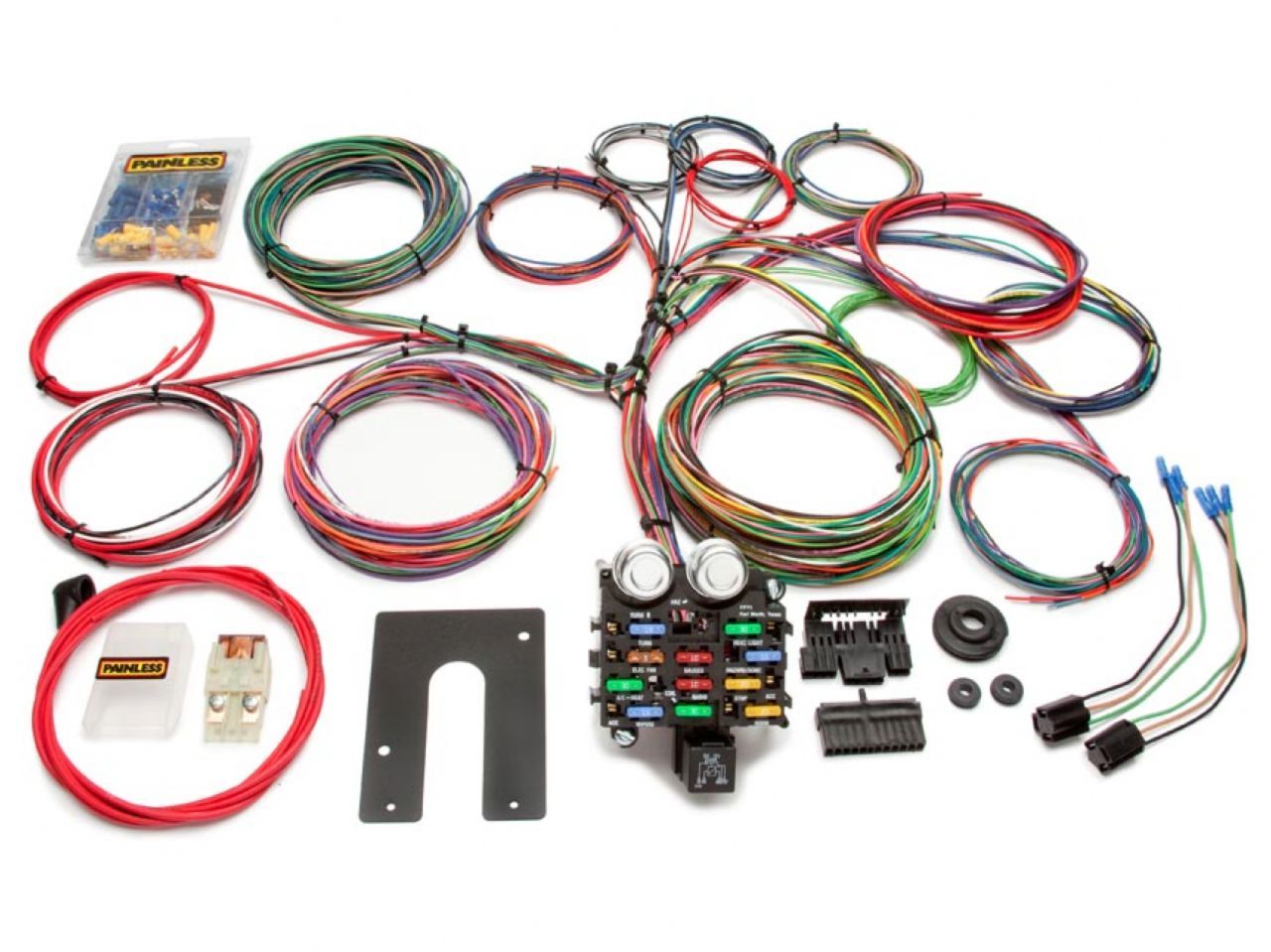

This Painless Performance customizable 21 circuit pickup chassis wiring harness provides ample wire lengths, making the wiring harness especially well-suited for trucks with long beds and extended cabs. This harness comes with open ended ignition switch wires that can easily be adapted to any ignition switch out there. For those using a GM Keyed Column, part number 10103 comes with a Pre-Terminated GM ignition switch connector. Included with this harness are the following parts; a GM engineered fuse block & Painless mounting bracket; GM turn signal connectors; pre wire plugs for the headlights & dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Specs:
Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: GM
Circuit Designations: Printed on Wires
Connectors Included: GM Steering Column Turn Switch, Two Headlight Pigtails, 10SI & 12 SI Alternator, Dimmer Switch
This harness includes circuits for:
- A/C & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
* Including Wires For:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
Application
Year: Universal
Make: Universal
Model: Universal
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any
