MOOG Chassis Products

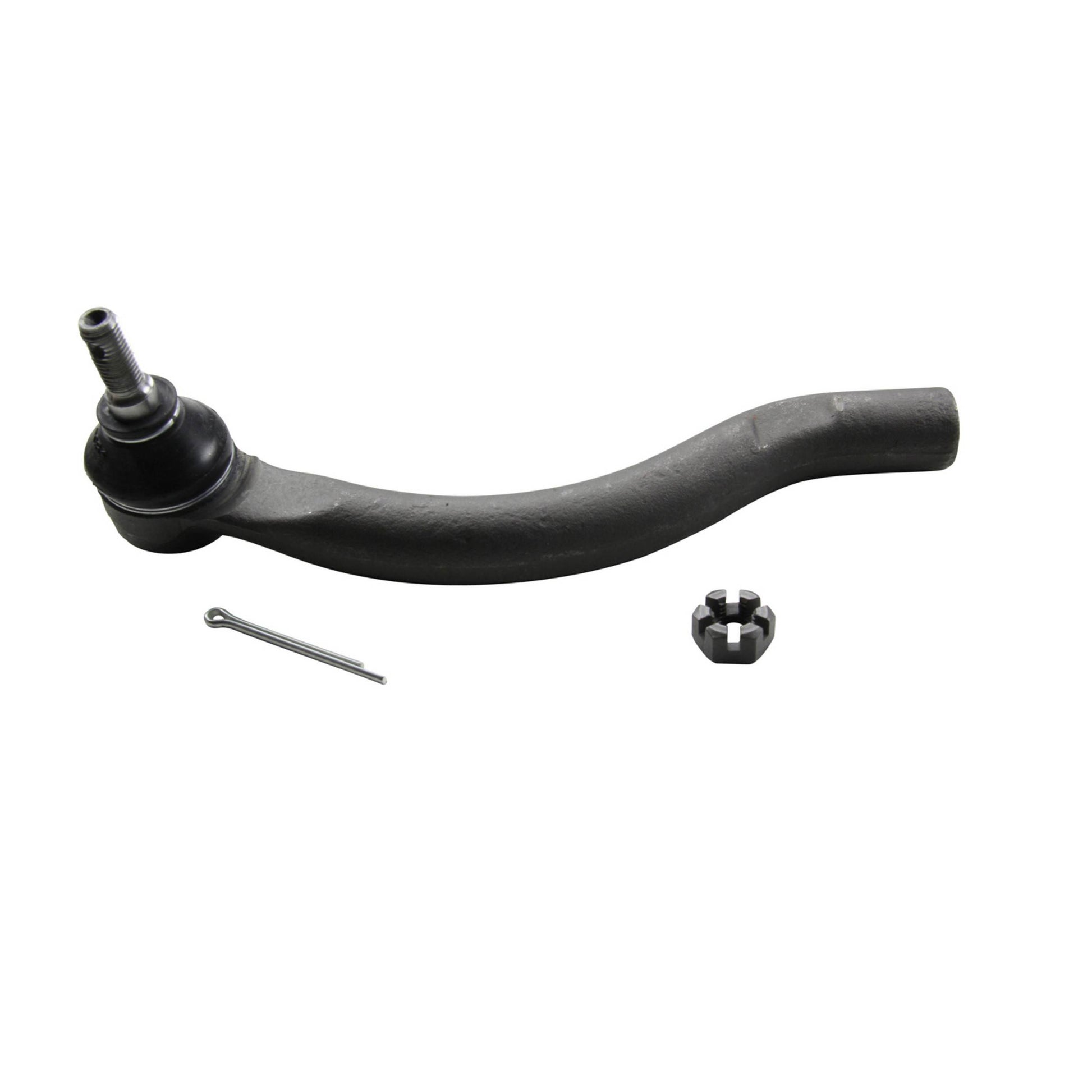

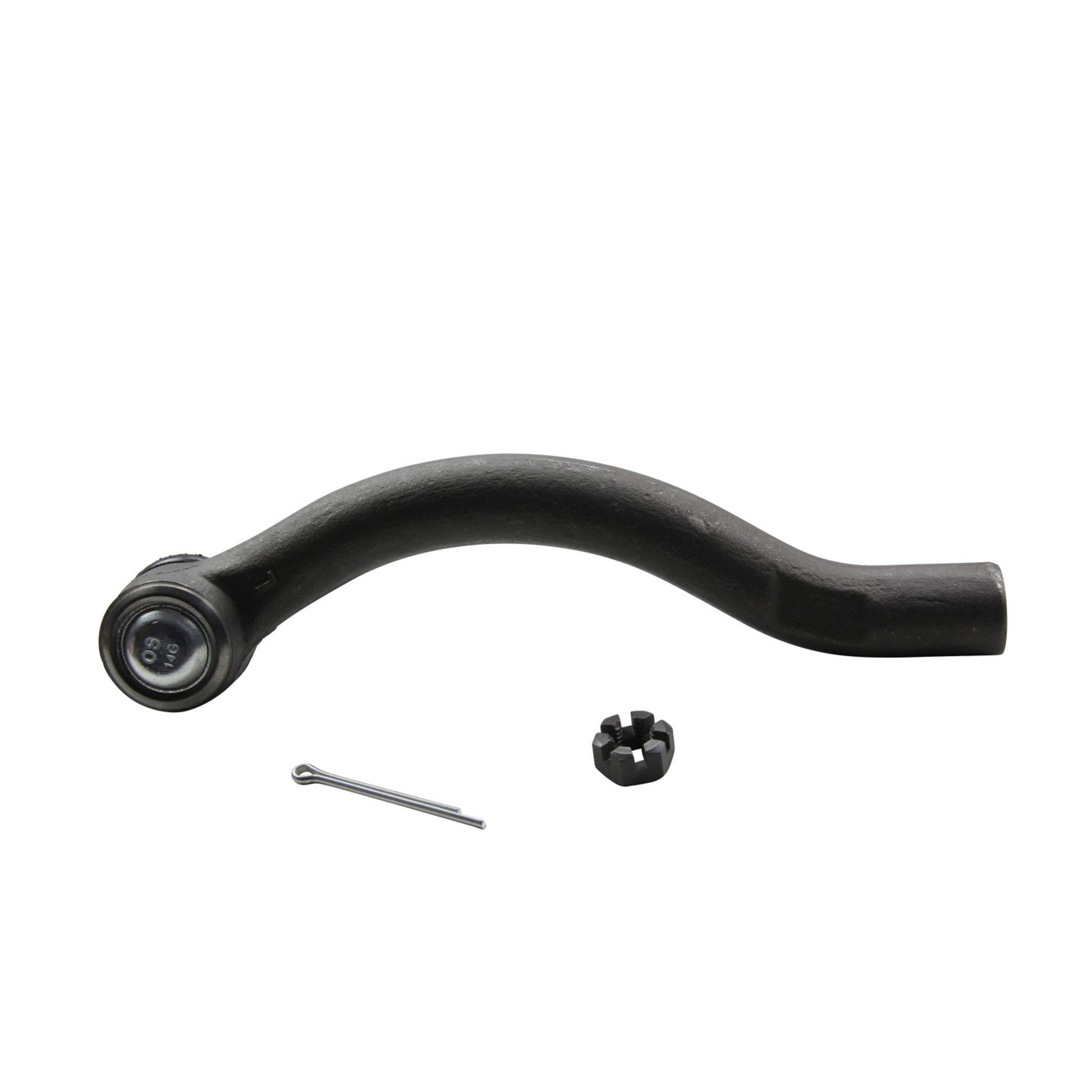

Moog Outer Tie Rod End

Moog Outer Tie Rod End

sku: 1EFX3 | mpn: ES80288
$59.10
$59.10
Sale Sold out

Shipping calculated at checkout.

65 in stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

  • Loose or worn chassis parts can lead to premature tire wear.
  • Exclusive cover plate protects against contaminants leaking into the bearing surface.
  • Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
  • Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
  • Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
  • Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.

Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 7.990
Rod Thread: M14X1.5
Configuration: OFFSET
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.500
Stud Diameter Dimension (bottom in.): 0.555
Stud Thread: M10X1.25
Rack End Thread: M10X1.25
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 10.0
End 2 Thread Pitch (MM):1.25


Vehicle Fitments:

Year Make Model Submodel
2004 - 2008 Acura TSX Base
2003 Honda Accord Coupe
2003 - 2005 Honda Accord DX
2003 - 2007 Honda Accord EX, LX
2007 Honda Accord EX-L, Special Edition, LX SE
2005 - 2007 Honda Accord Hybrid
2006 Honda Accord LX Special Edition
2005 Honda Accord SE
2006 - 2007 Honda Accord Value Package
