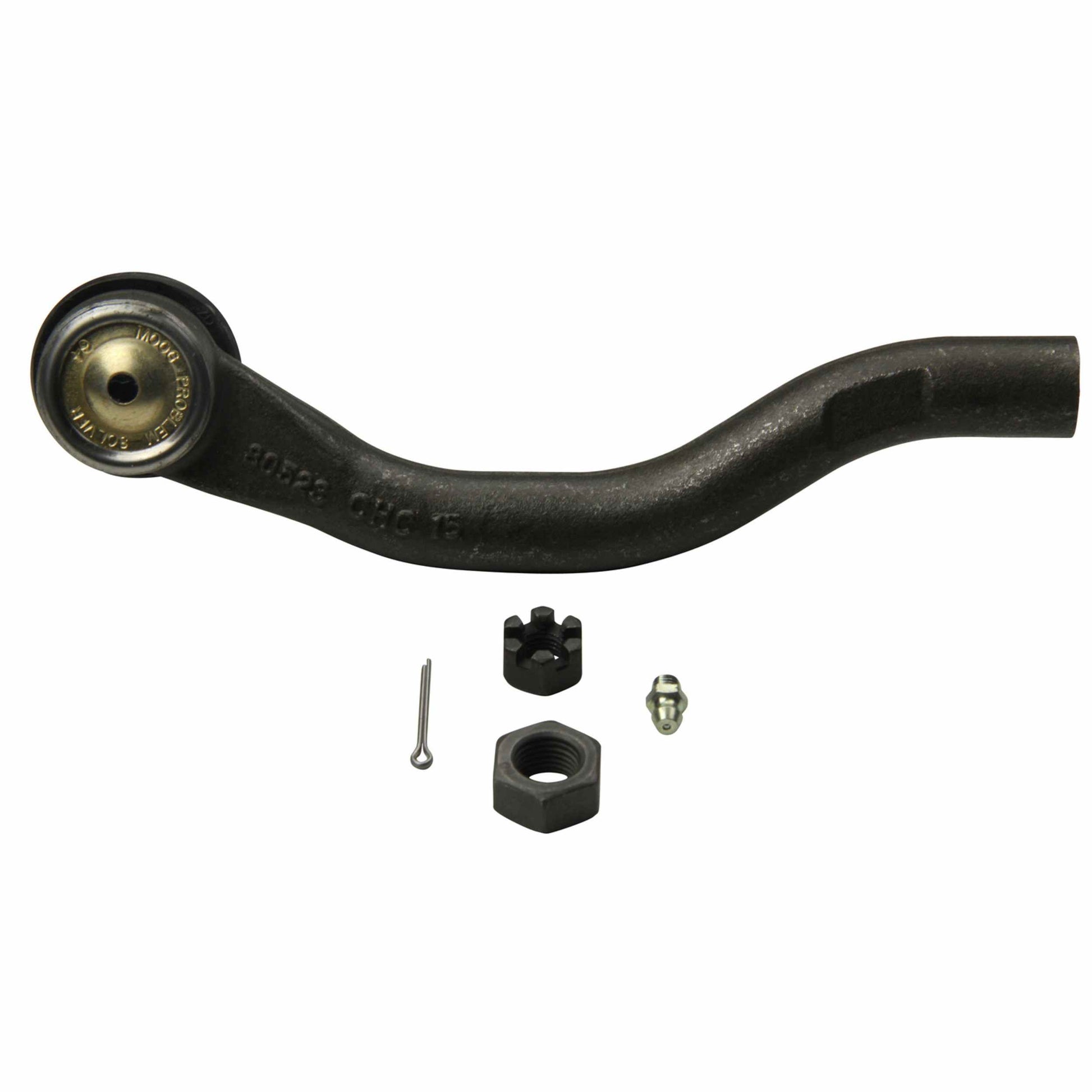

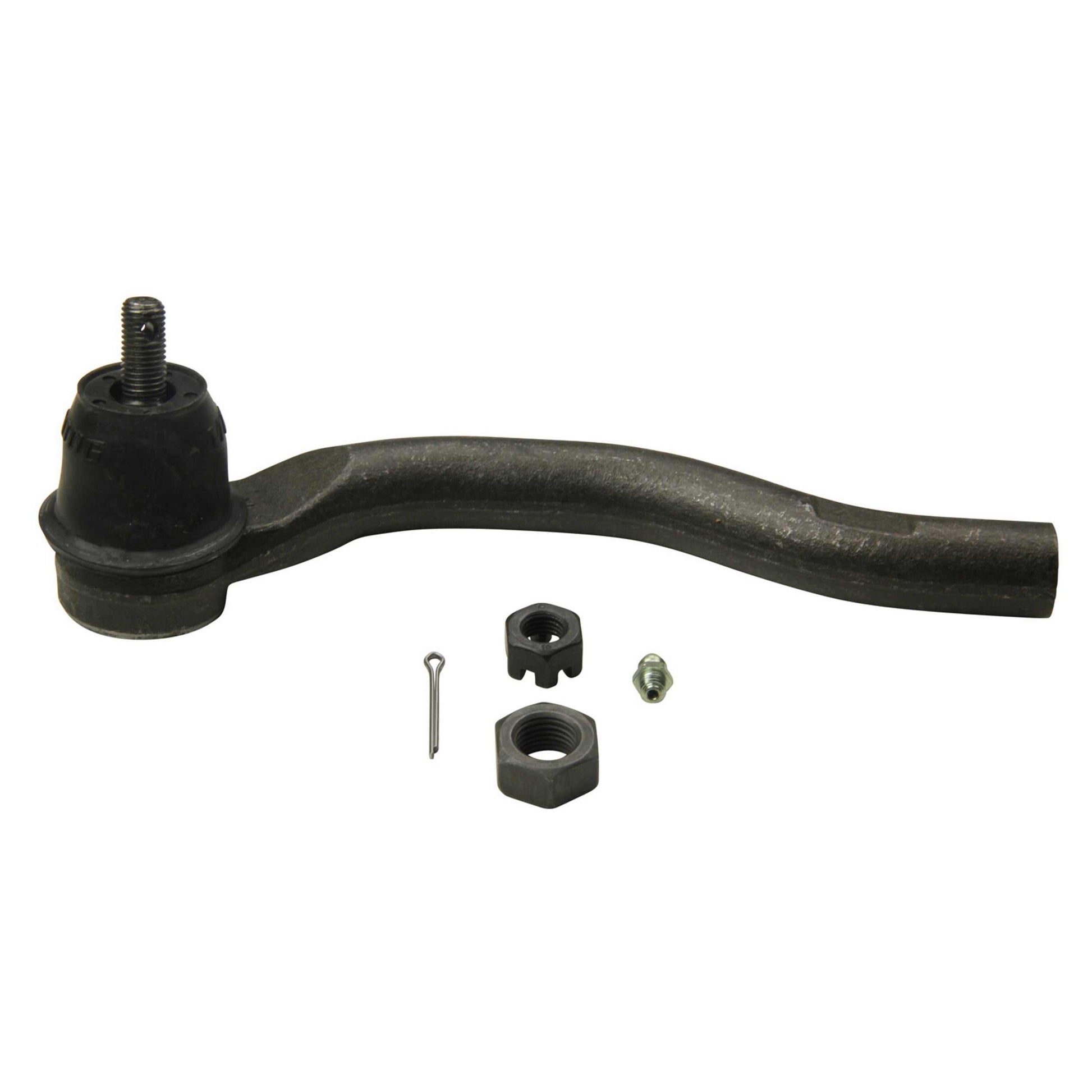

Moog Outer Tie Rod End
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 7.990
Rod Thread: M14 X 1.50
Configuration: BENT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.500
Stud Diameter Dimension (bottom in.): 0.555
Stud Thread: M10 X 1.25
Rack End Thread: M10 X 1.25
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 10.0
End 2 Thread Pitch (MM): 1.25
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2008 | Acura | TSX | Base |
| 2003 | Honda | Accord | Coupe |
| 2003 - 2005 | Honda | Accord | DX |
| 2005 - 2007 | Honda | Accord | Hybrid |
| 2006 | Honda | Accord | LX Special Edition |
| 2003 - 2007 | Honda | Accord | LX, EX |
| 2005 | Honda | Accord | SE |
| 2007 | Honda | Accord | Special Edition, LX SE, EX-L |
| 2006 - 2007 | Honda | Accord | Value Package |
Moog Outer Tie Rod End
Sale price$37.25 USD
