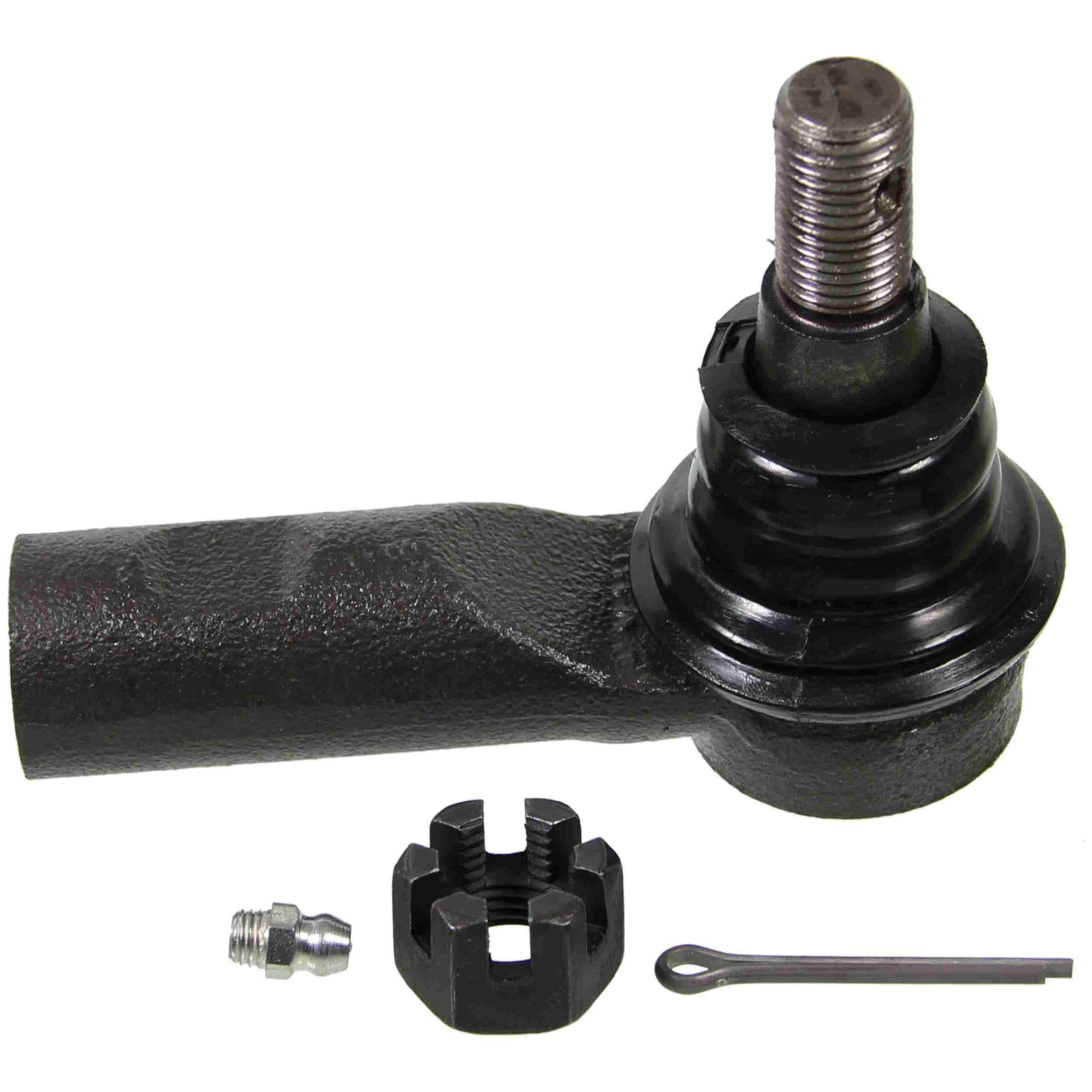

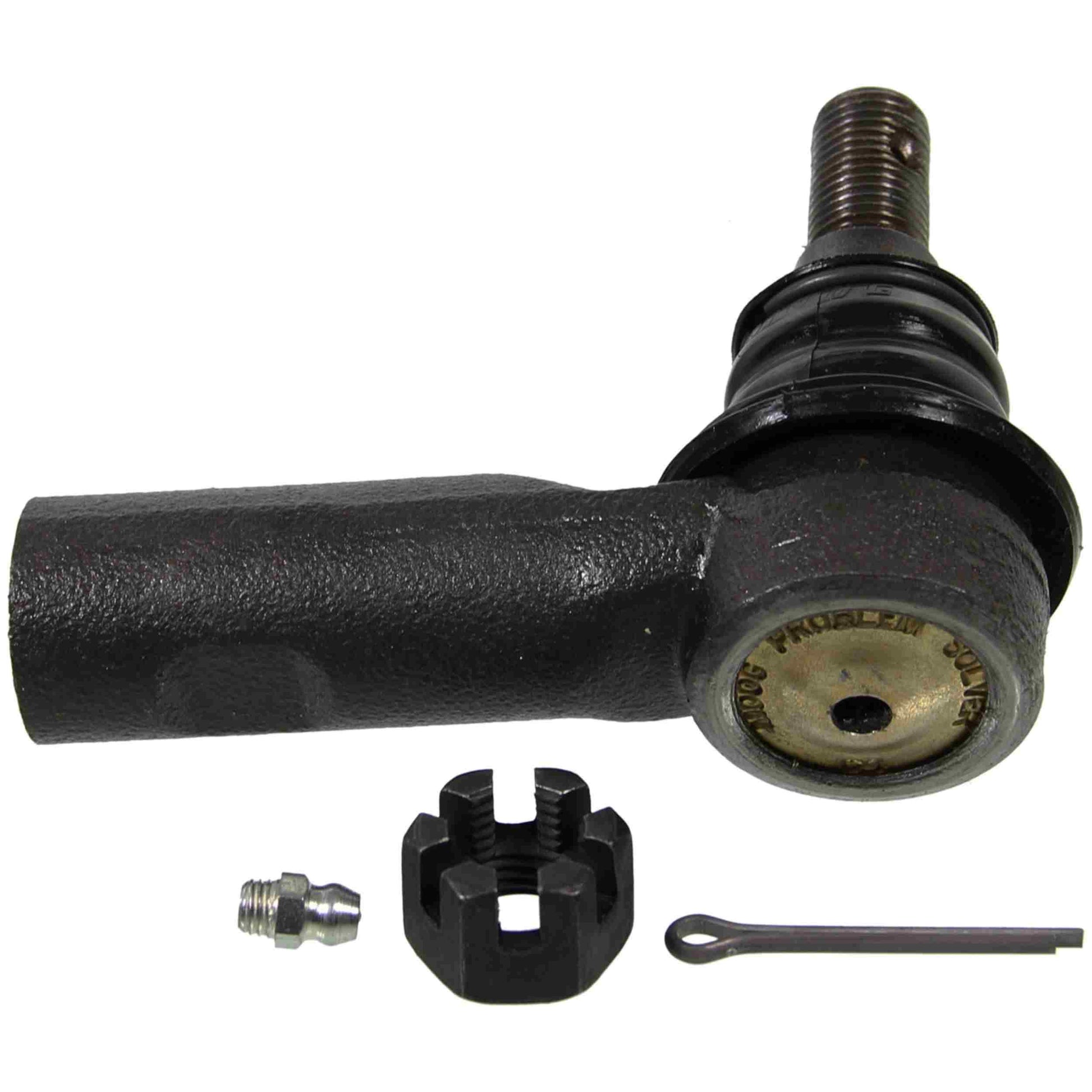

Moog Outer Tie Rod End
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.530
Rod Thread: M14 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.658
Stud Diameter Dimension (bottom in.): 0.815
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 16.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2009 | Dodge | Sprinter 2500 | Base |
| 2007 - 2009 | Dodge | Sprinter 3500 | Base |
| 2007 - 2021 | Freightliner | Sprinter 2500 | Base |
| 2007 - 2021 | Freightliner | Sprinter 3500 | Base |
| 2019 - 2021 | Freightliner | Sprinter 3500XD | Base |
| 2010 - 2021 | Mercedes-Benz | Sprinter 2500 | Base |
| 2010 - 2021 | Mercedes-Benz | Sprinter 3500 | Base |
| 2018 - 2021 | Mercedes-Benz | Sprinter 3500XD | Base |
| 2019 - 2020 | Mercedes-Benz | Sprinter 4500 | Base |
Moog Outer Tie Rod End
Sale price$41.70 USD
