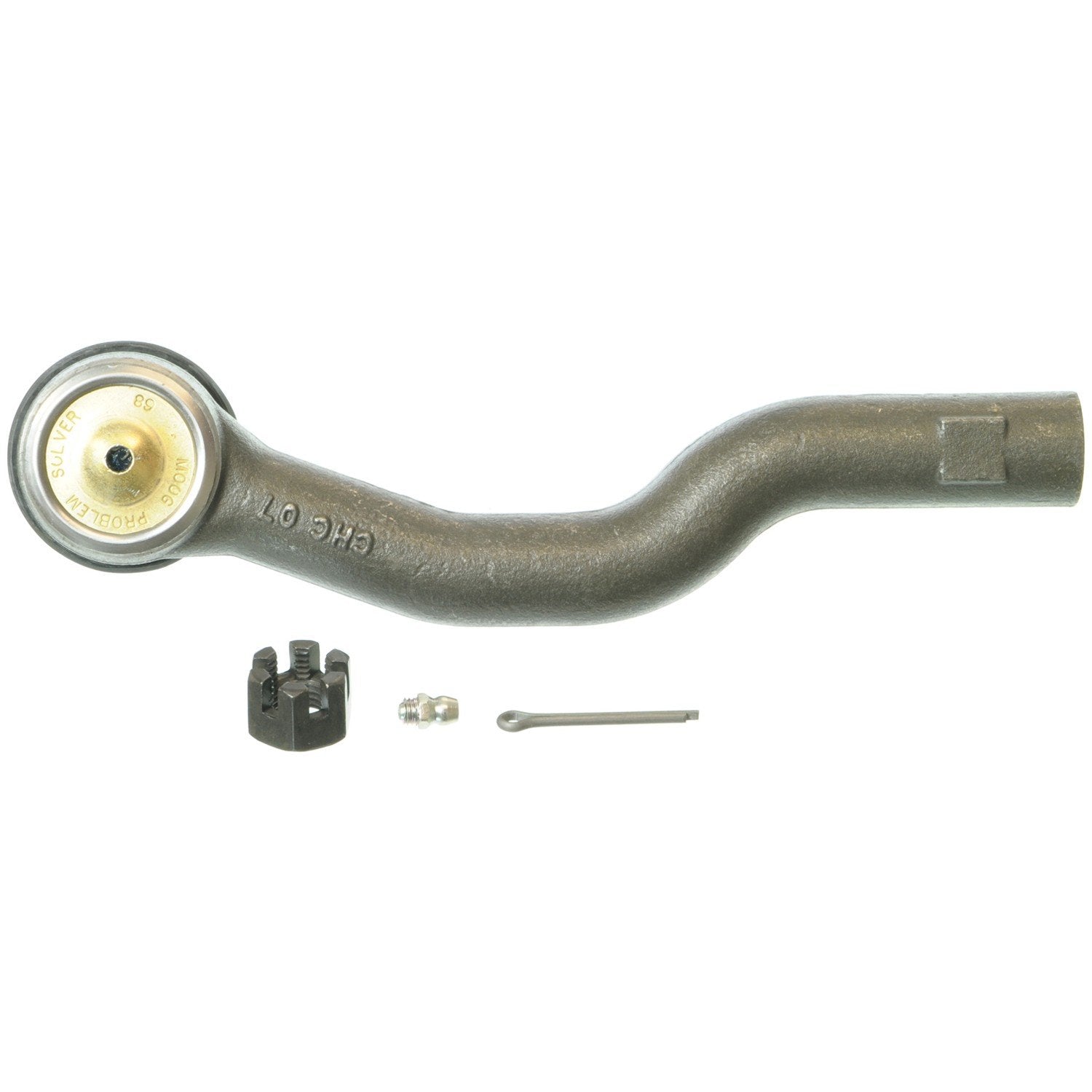

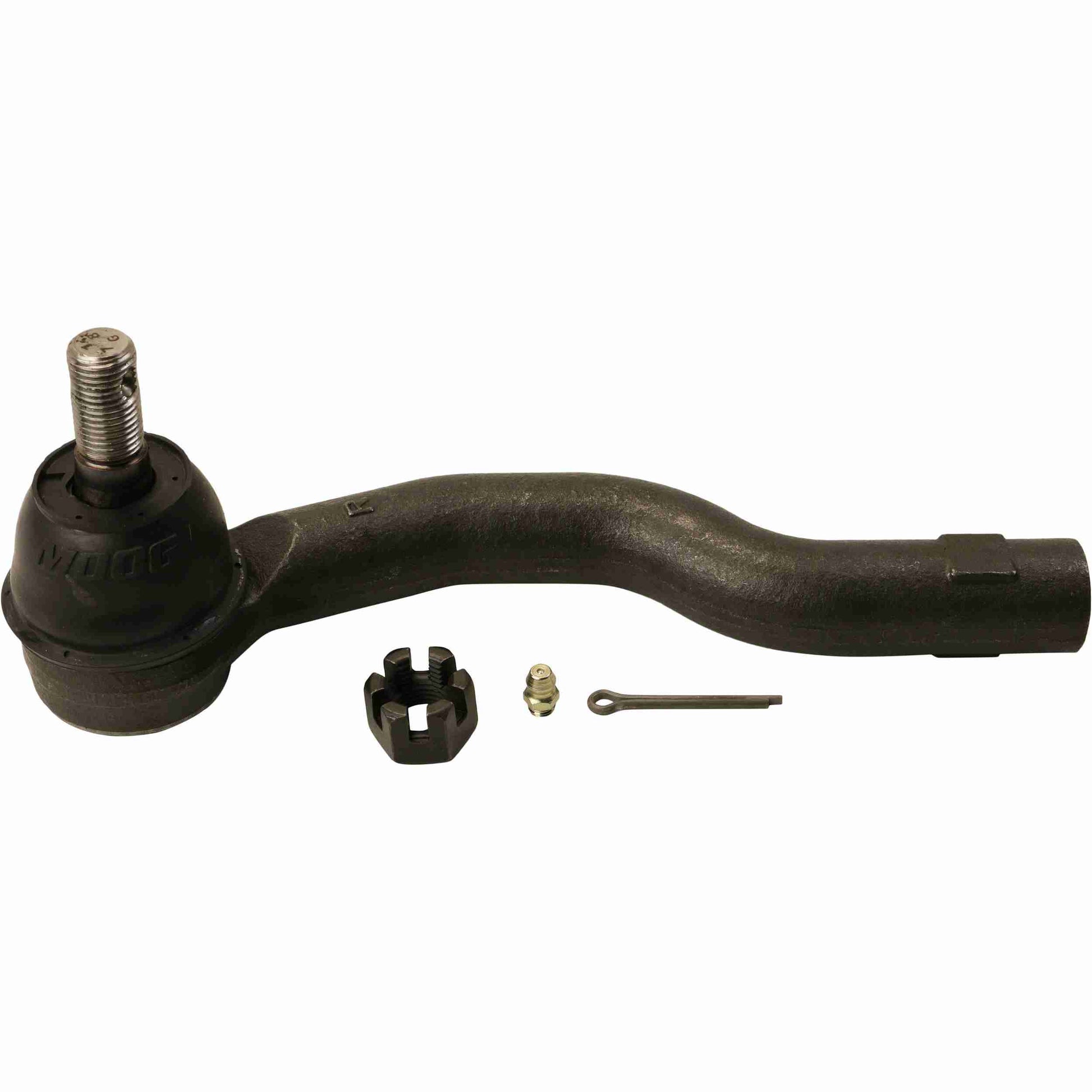

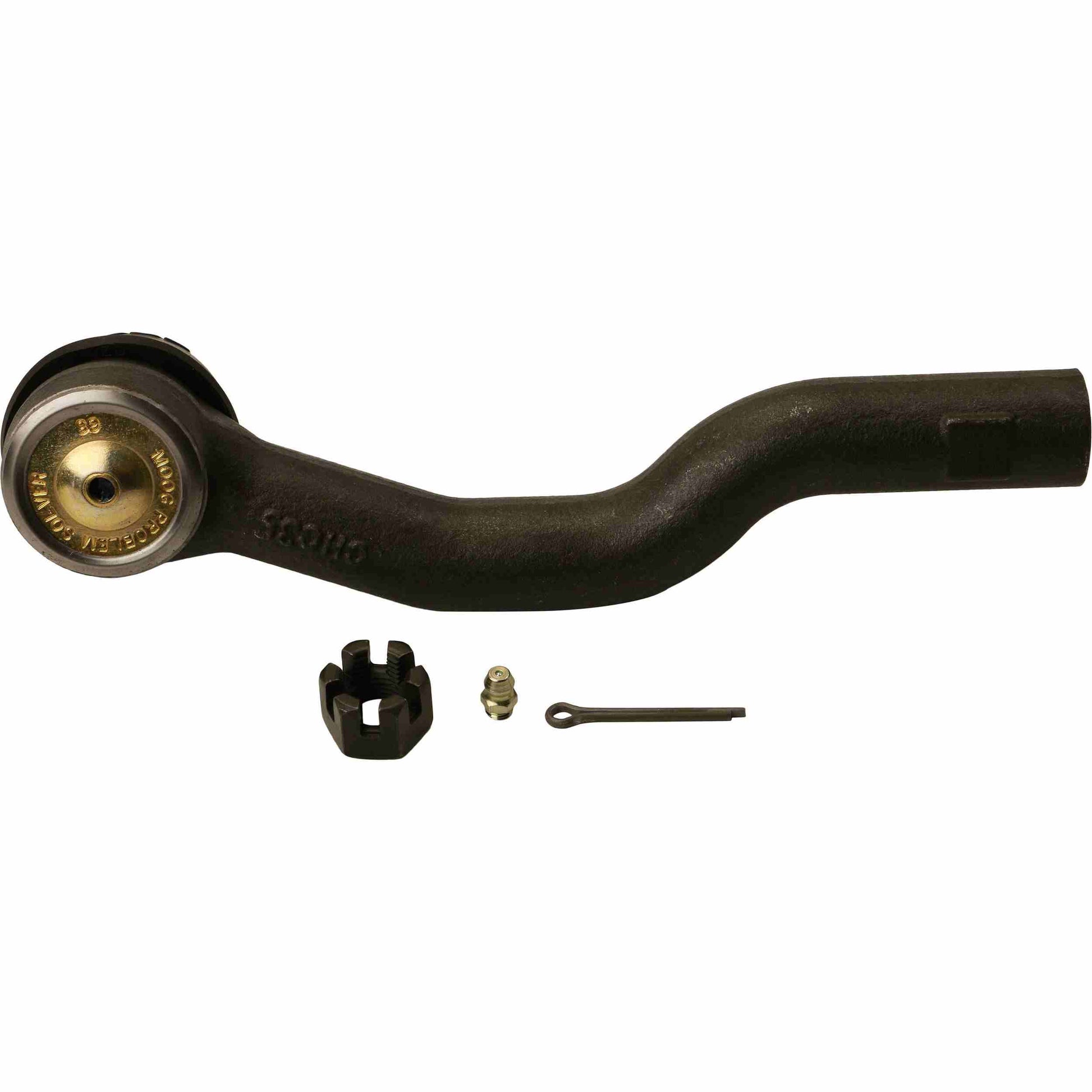

Moog Outer Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications
Tie Rods
Greasable: Yes
Stud Center to End (in): 8.160
Rod Thread: M16 X 1.50
Configuration: BENT
Rod Type (Male / Female):FEMALE
Stud Diameter Dimension (top in.):0.580
Stud Diameter Dimension (bottom in.): 0.700
Stud Thread: M14 X 1.50
Rack End Thread: M14 X 1.50
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 16.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 14.0
End 2 Thread Pitch (MM): 1.5

Applications
Infiniti QX56 2013-2004 Right Outer
Nissan Armada 2015-2005 Right Outer
Nissan Pathfinder Armada 2004 Right Outer
Nissan Titan 2015-2004 Right Outer
