ORACLE Lighting Oracle In-Line LED RGB Controller 1614-504
ORACLE Lighting Oracle In-Line LED RGB Controller 1614-504
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 7 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyORL Remote/Controllers
Accessory Power Module Connector
Universal

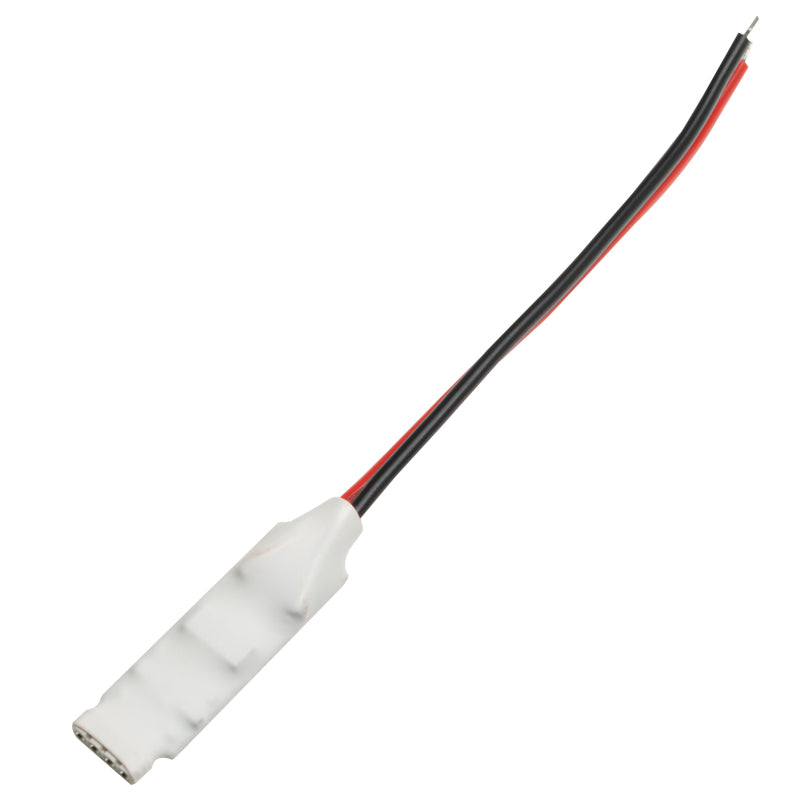

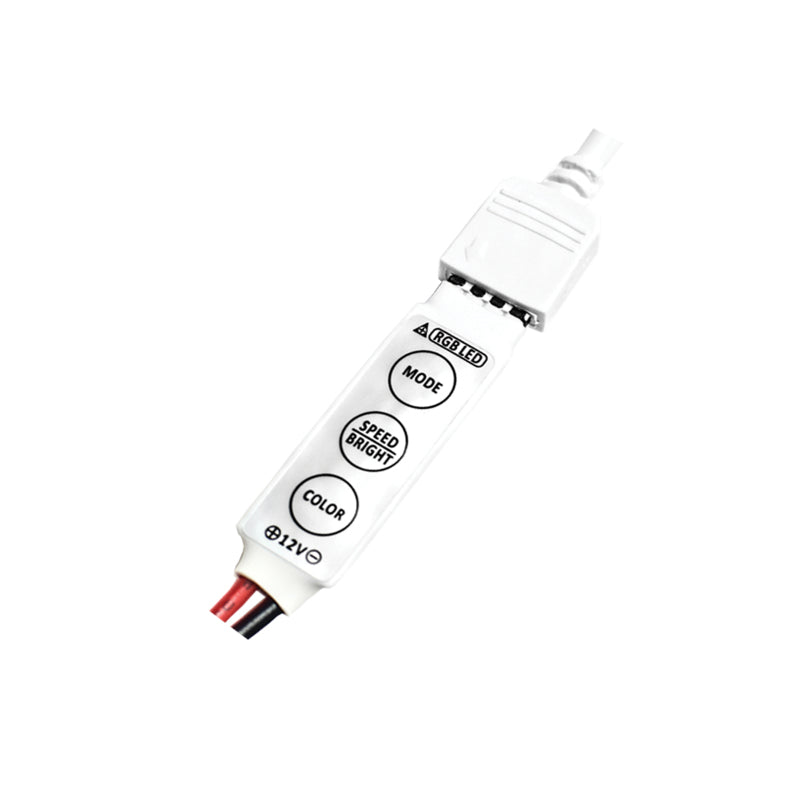

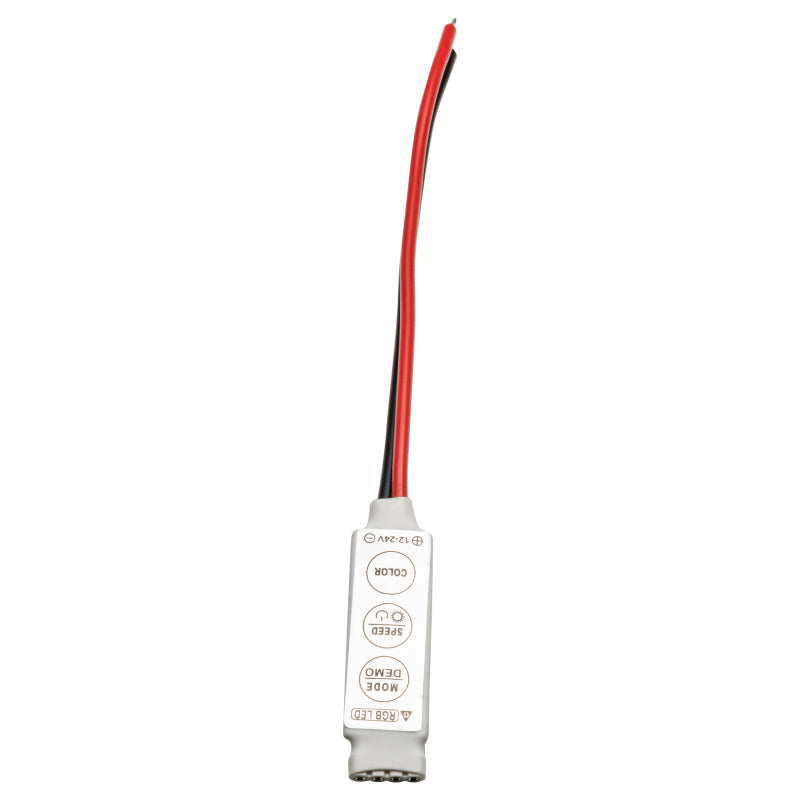

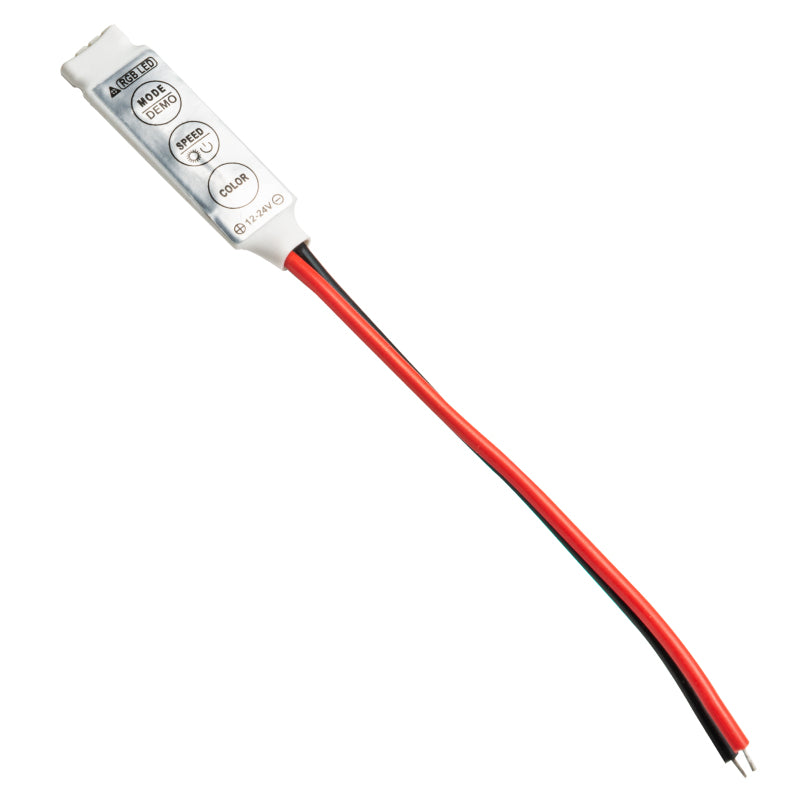

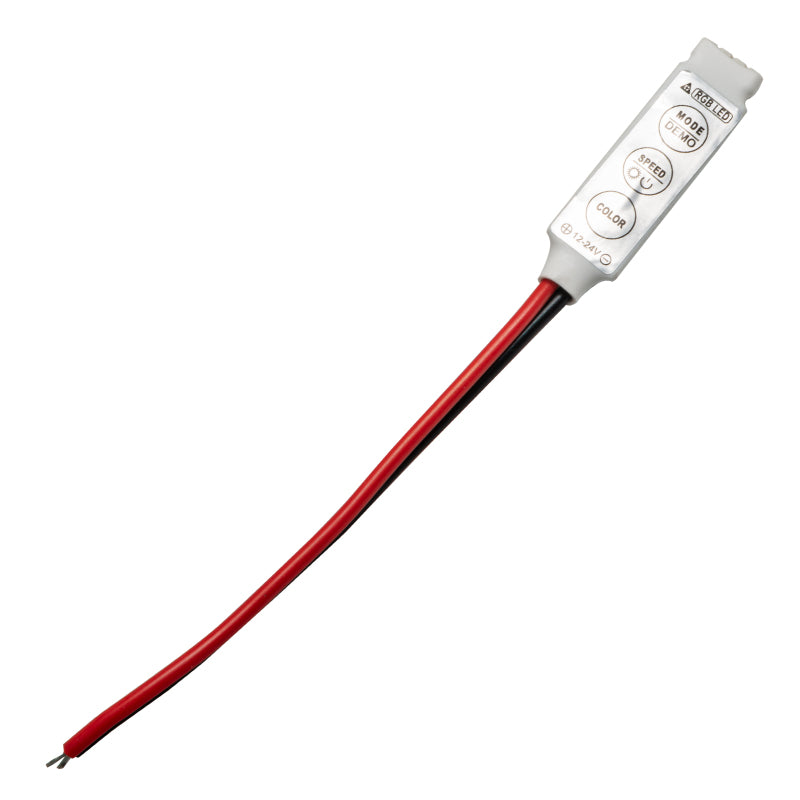

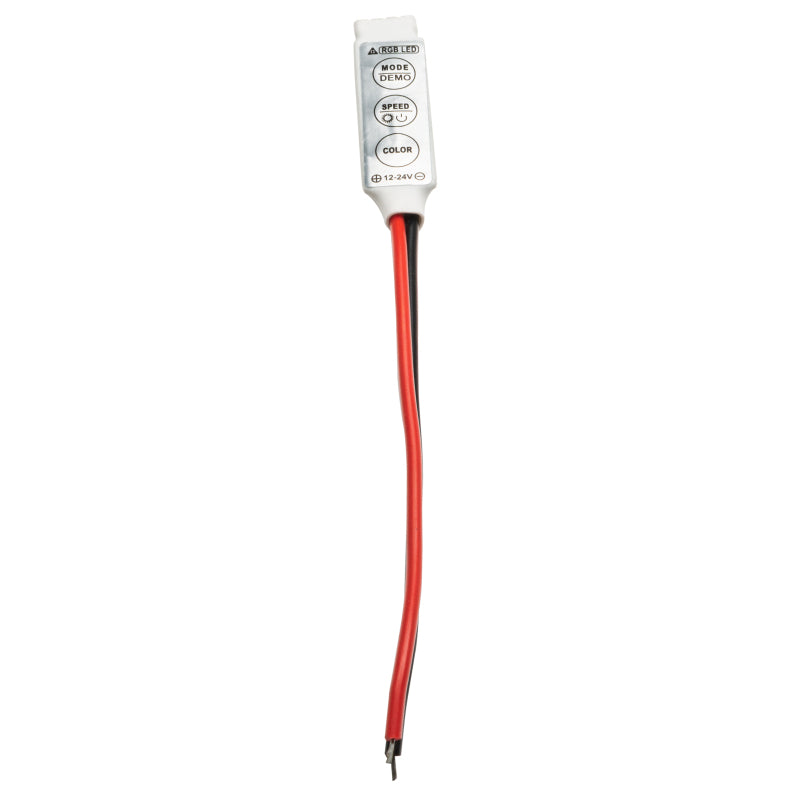

Easy to install LED controller from ORACLE Lighting. The In-Line LED Controller wires directly between a power source and an LED product such as our Flex Strips. For simple control over RGB flex strips. Connect one end to power source. With supplied RGB plug, connect the other end to color coded wires on RGB flex strip. Modes include: - Breathing Mode - Heartbeat Mode - Primary and Secondary Strobe Modes - Control Dimming Mode - Color Control Also included:- Speed Variable Button - Visible markings for the + and - 12V and LED sources. Specifications:- Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F - Static power consumption: < 1 Watt - Output Power: 144 Watts - Color Control: 20 Static Colors - Dynamic Modes: 5 - Levels of Control: 256- Levels of Speed: 6- Levels of Brightness of Static Color:8- RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
Product used to wire between power source and flex strips. Has visible markings for both the positive and negative sources.
