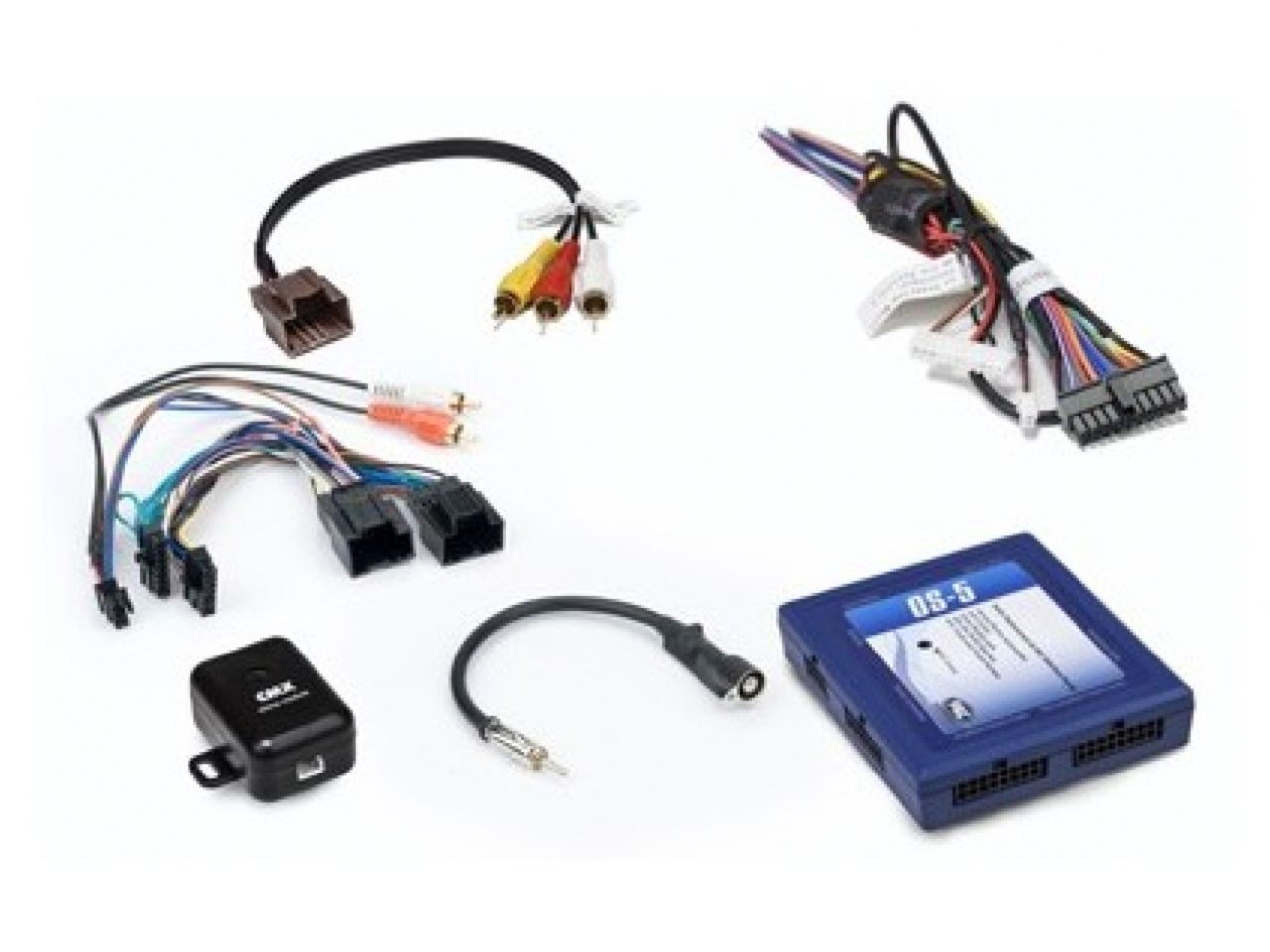

Pac Onstar Radio Replacement 29-Bit
Retains OnStar® system functionality and the Bose factory-installed amplifier (if present) when the factory radio is replaced in a 29-bit GMLAN vehicle. Generates all safety warning chimes and audible turn signal indicators.
- Retains OnStar® when the factory radio is replaced
- Retains Factory Bluetooth (2009+ model vehicles)
- Retains rear seat audio controls
- Retains factory XM
- Retains all warning chimes (chime module included)
- Retains back-up sensors/park assist
- Retains back-up camera signal
- Retains factory BOSE audio systems
- Retains factory premium BOSE audio (Y91 digital. does not support fading)
- Supports non-amplified audio systems
- Steering wheel control harness (pre-wired)
- Dual zone function
- Chime volume adjustment (factory buttons)
- Rear seat audio and video (GMRVD) required
- OnStar volume adjustment
- Retained accessory power output (R.A.P.)
- Reverse Wire output
- VSS (Vehicle Speed Sense) output
- Illumination output
- Parking brake output
- Includes antenna adaptor
NOTE: Fading is not supported in Premium amplified systems.
APPLICATION GUIDE
2008-2014 BUICK ENCLAVE ALL TRIM LEVELS
2006-2011 BUICK LUCERNE ALL TRIM LEVELS
2006-2010 CADILLAC DTS ALL TRIM LEVELS
2007-2014 CADILLAC ESCALADE ALL TRIM LEVELS
2007-2014 CADILLAC ESCALADE ESV ALL TRIM LEVELS
2007-2014 CADILLAC ESCALADE EXT ALL TRIM LEVELS
2007-2009 CADILLAC SRX ALL TRIM LEVELS
2007-2013 CHEVROLET AVALANCHE ALL TRIM LEVELS
2007-2009 CHEVROLET EQUINOX ALL TRIM LEVELS
2008-2013 CHEVROLET EXPRESS VAN ALL TRIM LEVELS
2006-2013 CHEVROLET IMPALA ALL TRIM LEVELS
2006-2007 CHEVROLET MONTE CARLO ALL TRIM LEVELS
2007-2013 CHEVROLET SILVERADO ALL TRIM LEVELS
2007-2014 CHEVROLET SUBURBAN ALL TRIM LEVELS
2007-2014 CHEVROLET TAHOE ALL TRIM LEVELS
2009-2014 CHEVROLET TRAVERSE ALL TRIM LEVELS
2007-2014 GMC ACADIA ALL TRIM LEVELS
2008-2013 GMC SAVANA ALL TRIM LEVELS
2007-2013 GMC SIERRA ALL TRIM LEVELS
2007-2013 GMC SIERRA HD ALL TRIM LEVELS
2007-2014 GMC YUKON ALL TRIM LEVELS
2007-2014 GMC YUKON XL ALL TRIM LEVELS
2008-2009 HUMMER H2 ALL TRIM LEVELS
2007-2009 PONTIAC TORRENT ALL TRIM LEVELS
2007-2010 SATURN OUTLOOK ALL TRIM LEVELS
2008-2010 SATURN VUE ALL TRIM LEVELS
2007-2008 SUZUKI XL-7 ALL TRIM LEVELS
