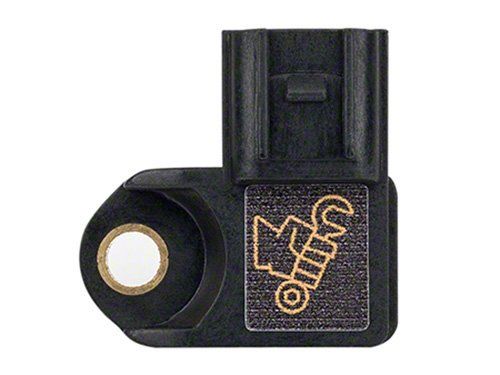

Omni Power MAP Sensor 3 Bar Honda B Series Engines

SKU: 0J4BY | MPN:  map-bdhf-3br
Only 1 unit left
Sale price$109.99 USD Regular price$119.99 USD
Save $10.00

MAP Sensor 3 Bar B Series Engines
Omni Power USA 2.5, 3, 4 & 7 Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip. Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes.

The unique ability to compensate for temperature changes allows the Omni Power USA MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale. With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors.

Other sensors on the market don't have true linear scaling which can cause your engine to go out of tune with elevation changes, often resulting in idle problems, poor driveability, and catastrophic engine damage.

Omni Power 4 bar MAP sensors can precisely calculate boost pressure from 1-43+ psi (7 bar 1-80+ psi,) while still allowing smooth stock OEM drivability at any boost level. Conveniently packaged in an OEM dimensional housing for easy install and an OEM look.

Key features:
  • Cases are designed to withstand in excess of 130 PSI without leaking
  • 40 to 260 degrees Fahrenheit temperature operating range
  • Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
  • Automatic temperature compensation.
  • True linear scaling for perfect driveability at all boost and vacuum levels.
  • Compatible with all aftermarket engine management systems.
  • Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
  • Allows smoother engine operation, higher boost levels, and better driveability than competitors turbo MAP sensors.
  • Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
  • Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping.




Vehicle Fitments:

Year Make Model Submodel
1997 - 1998 Acura CL Base
1997 - 2001 Acura CL Premium
2001 Acura CL Type-S
1992 - 2001 Acura Integra GS-R
1990 - 2001 Acura Integra LS, GS
1990 - 1998 Acura Integra RS
1995 - 1996 Acura Integra Special Edition
1997 - 2001 Acura Integra Type R
1999 - 2003 Acura TL Base
2002 - 2003 Acura TL Type-S
1996 Honda Accord 25th Anniversary Edition
1998 - 2000 Honda Accord Coupe
1995 - 2002 Honda Accord EX-R
1994 - 2002 Honda Accord LX, DX, EX
1997 - 2002 Honda Accord SE
1996 - 2002 Honda Accord Value Package
1990 - 2000 Honda Civic EX
1997 - 2000 Honda Civic EX-R
1999 - 2000 Honda Civic EX-R SIR
1998 - 2000 Honda Civic GX
1996 - 2000 Honda Civic HX
1988 - 2000 Honda Civic LX, DX
1988 - 1991 Honda Civic RT 4WD, Base
1988 Honda Civic SE
1989 - 2000 Honda Civic Si, CX
1999 Honda Civic Value Package
1992 - 1995 Honda Civic VX
1988 - 1989 Honda Civic Wagovan
1993 - 1997 Honda Civic del Sol Si, S
1994 - 1997 Honda Civic del Sol VTEC
1998 - 2001 Honda CR-V EX
1997 - 2001 Honda CR-V LX
2000 - 2001 Honda CR-V SE
1989 - 1991 Honda CRX Base
1988 Honda CRX DX
1988 - 1991 Honda CRX Si, HF
1999 - 2001 Honda Odyssey Cargo
1995 - 2001 Honda Odyssey EX, LX
1995 Honda Prelude SE
1992 - 1994 Honda Prelude Si 4WS
1992 - 1996 Honda Prelude Si, S
1997 - 2001 Honda Prelude Type SH, Base
1993 - 1996 Honda Prelude VTEC
2000 - 2009 Honda S2000 Base
2008 - 2009 Honda S2000 CR
