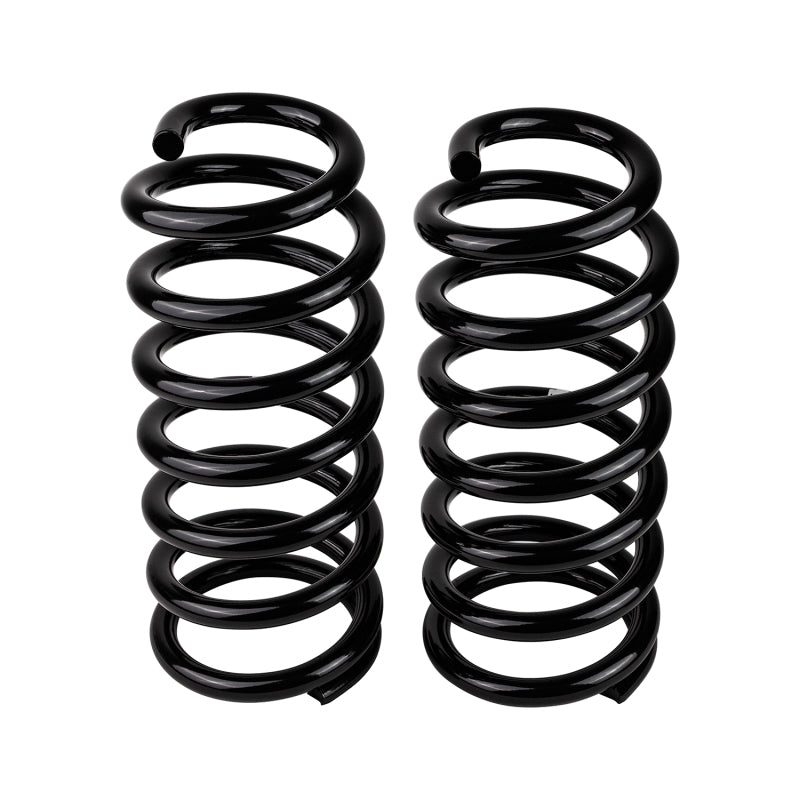

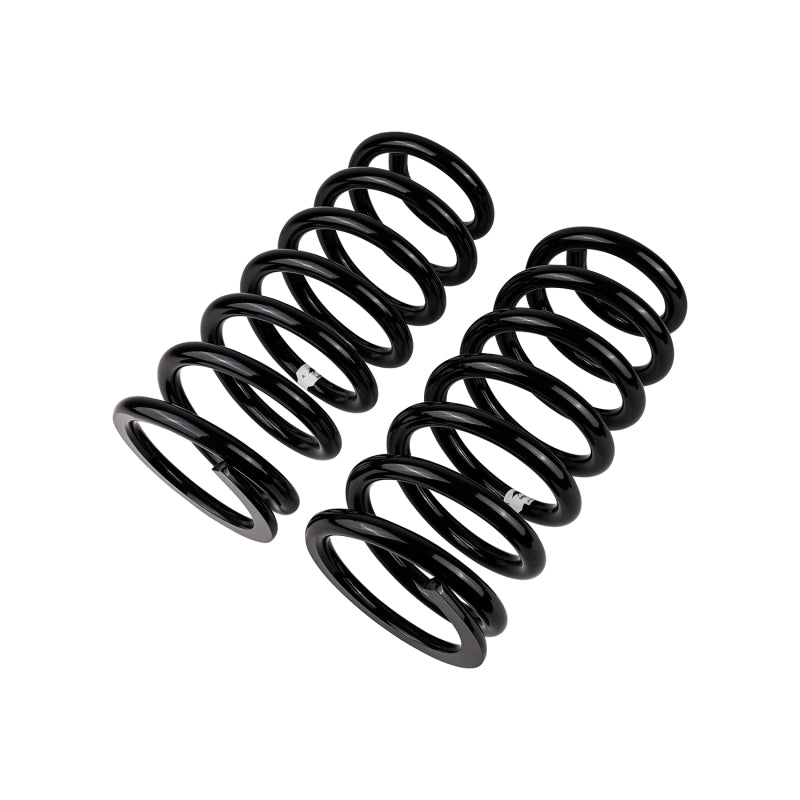

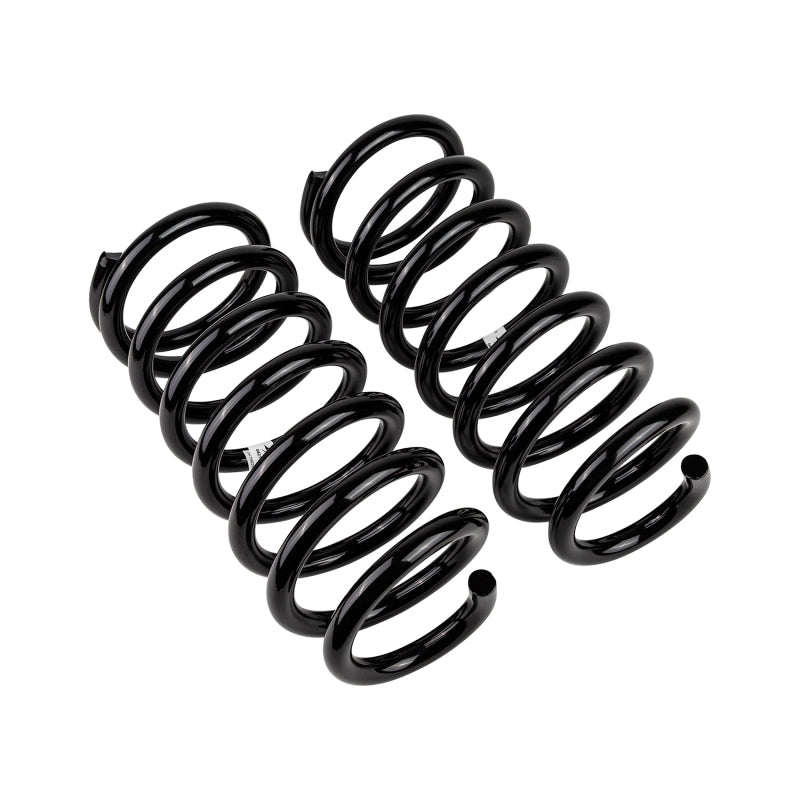

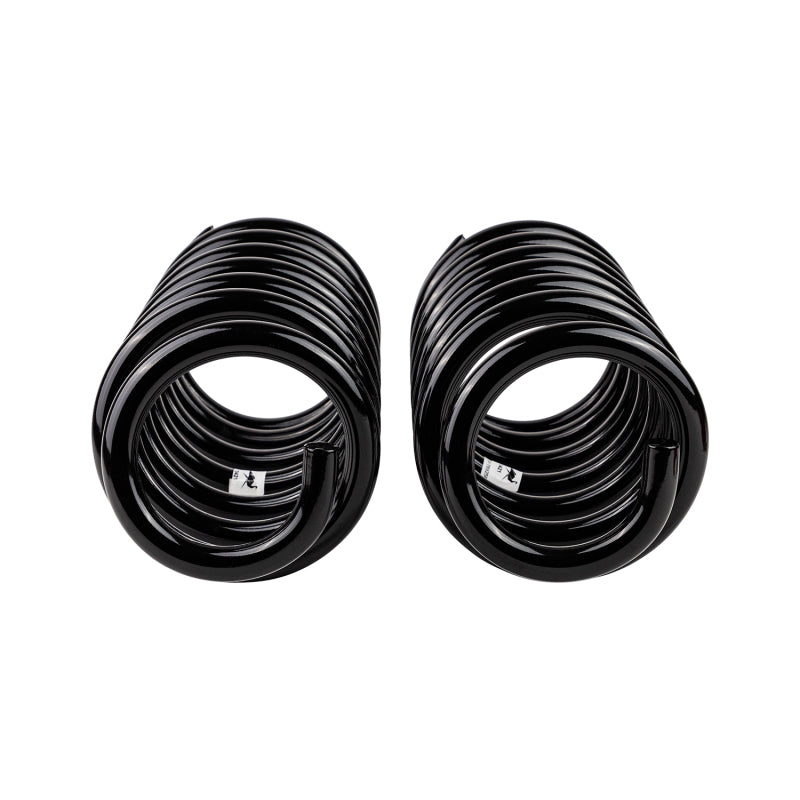

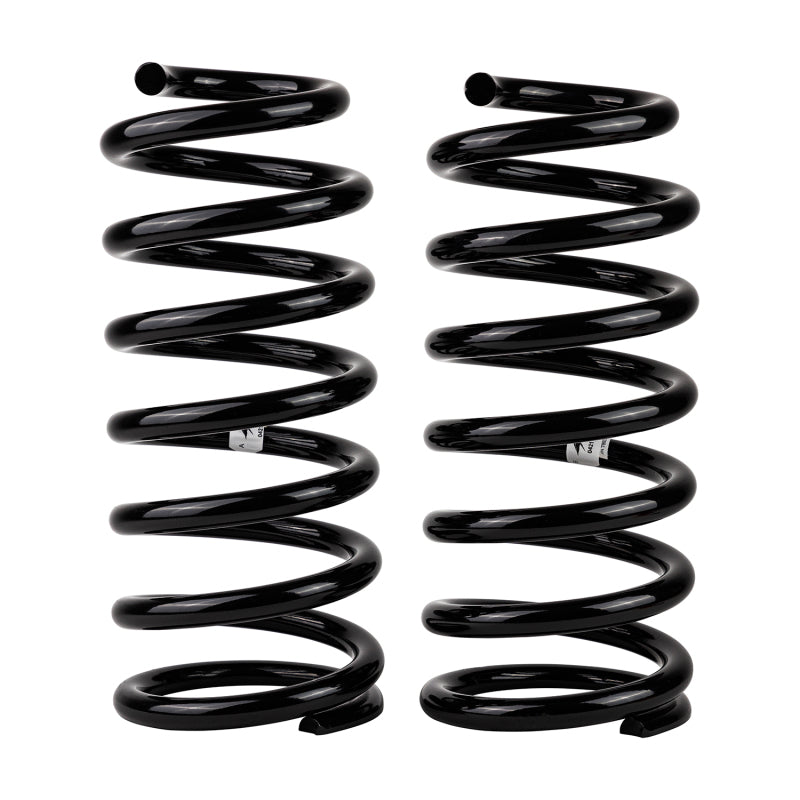

Old Man Emu ARB / OME Coil Spring Rear Lc 200 Ser- 2725

SKU: 8WA3P | MPN:  2725
Sale price$449.95 USD Regular price$450.00 USD
Sold outSave $0.05

Overview

When undertaking 4X4 remote area travel, the need to carry sufficient fuel, water, vehicle spares and safety equipment invariably means that your 4WD will be fully loaded, placing a lot of strain on suspension components. As part of their integrated 4WD suspension systems, Old Man Emu designs a range of coil springs for each vehicle, enabling the installer to match the most appropriate springs to the intended application. While ride height increases are attained, emphasis is placed on ride control improvements. Further fine tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle. ;

Features & Benefits

  • Manufactured micro-alloyed spring steel for strength & durability
  • Double scragged to reduce spring stress and enhance spring life
  • Constant variable rate coils available for multiple applications
  • Formed on computer-precision mandrels to ensure consistency
  • Designed to exact specifications, guaranteeing vehicle fitment
  • Finished in durable, hard wearing black powder coat
  • Designed and manufactured in Australia

Specifications

Color Black
Material X5K Micro-Alloyed Spring Steel
CA Prop 65 No
Coil Weight 11.6 kg
Free Height A: 445 mm / B: 435 mm
Spring Rate 440 lbf / in
Bar Diameter 22 mm
Number Of Turns 7.71
OE Spring Rate 170 lbs
Prop 65 No

Fitment

Year Make Model Submodel Liter Cylinders Fuel type Doors
2008-2011 Toyota Land Cruiser Base 5.7 8 GAS 4
2013 Toyota Land Cruiser Base 5.7 8 GAS 4
2014-2021 Toyota Land Cruiser Base 5.7 8 GAS 4
2020-2021 Toyota Land Cruiser Heritage Edition 5.7 8 GAS 4
2008-2011 Toyota Land Cruiser VX 5.7 8 GAS 4
2013 Toyota Land Cruiser VX 5.7 8 GAS 4
2014-2016 Toyota Land Cruiser VX 5.7 8 GAS 4
2017-2021 Toyota Land Cruiser VX-R 5.7 8 GAS 4
