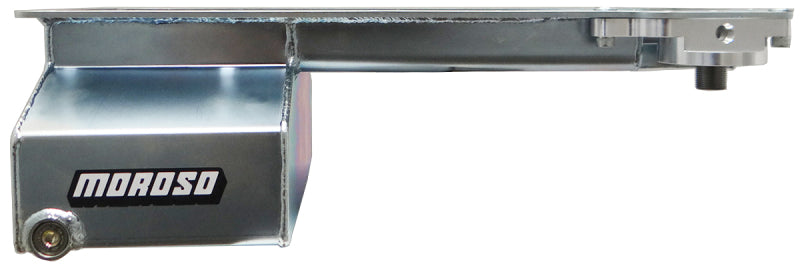

Moroso Oil Pan, Steel, Clear Zinc, Gm Ls, Front Sump, Road Race Baffled Swap

Chevrolet GM LS Series, Front Sump Swap Spin-on Oil Filter Adapter Wet Sump, 6.5 Quart Capacity, 6" Deep, 14" Wide, 6.75" Long, Baffled Engine Application: GM LS Series Fits: LS Engine Conversions that require a Front Sump Oil Pan with a Spin-On Filter provision (Check Measurements)

Steel, Wet Sump, 6.5 Quart Capacity, 6" Deep, 14" Wide, 6.75" Long, Baffled

Engine Application: GM LS Series

Fits: LS Engine Conversions that require a Front Sump Oil Pan with a Spin-on Filter provision(Check Measurements)

• Oil pan has a thick precision laser cut steel rail with a clear zinc finish
• Clears 4.25" stroke with most steel rods
• Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pick up area during Drifting, Road Racing and Drag Racing
• Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
• Accepts GM Part 12558253 Windage Tray with modification
• Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pick up, GM Part 12572654
• Features a detachable, billet aluminum Spin-On oil filter adapter with a 1/4" N.P.T. sensor port that accepts a 13/16" thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
• Dipstick Fitting for required oil pan mounted dipstick
• Magnetic Drain Plug
