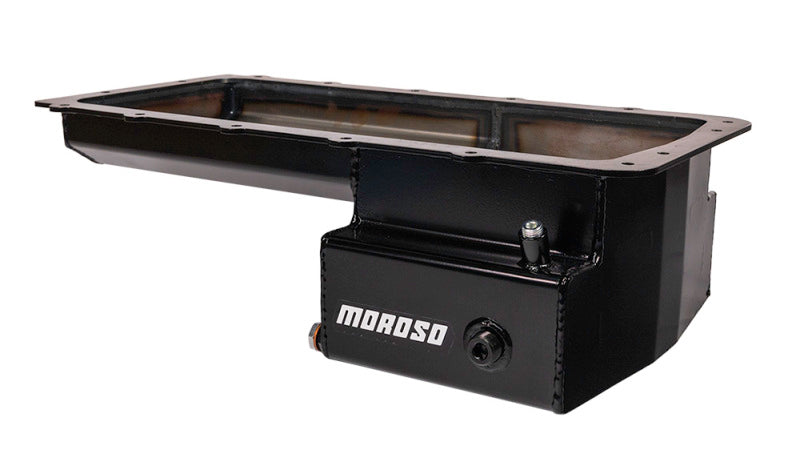

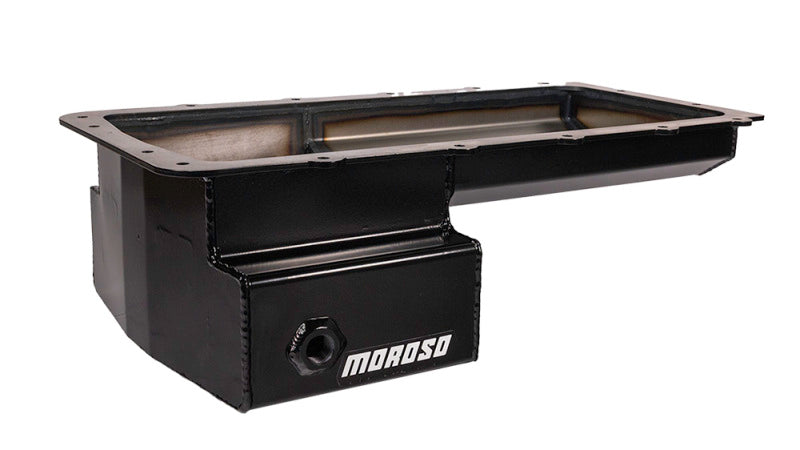

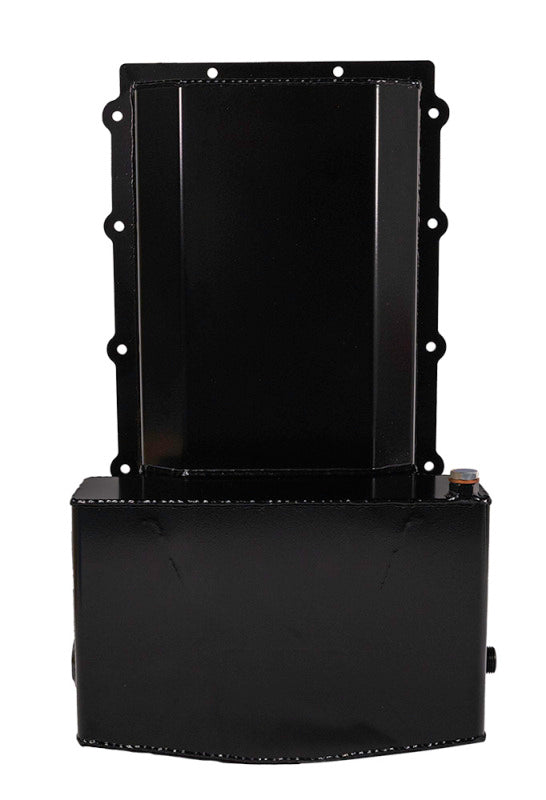

Moroso Oil Pan, Ford 5.0 Coyote, Road Race Baffled, Front T-Sump

Steel, Wet Sump, 7 Quart Capacity, 6-1/4" Deep

Engine Application: Ford 5.0 Modular "Coyote" Engines

Fits: Early Ford Chassis that require a front sump oil pan, check measurements

• For Ford 5.0 Coyote Engine Blocks
• Designed to install Ford 5.0 Coyote Engines into early Ford chassis that require a front sump oil pan
• Oil pan has a thick steel rail with a 6-1/4" deep, 12" wide by 8" long front sump and a 2-3/8" deep rear section
• Designed to be used with the 5.0 Coyote factory windage tray and dipstick

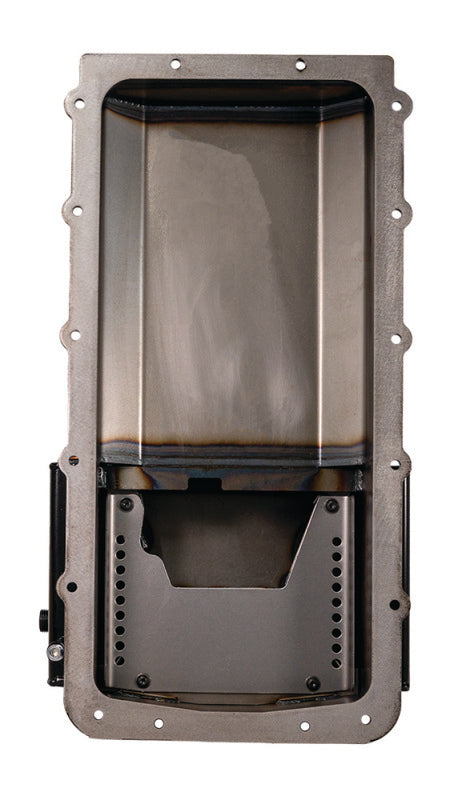

• Features a race proven trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• 1/2" NPT fitting for oil temperature sender and dipstick provision
• 20 mm fitting for the factory oil level sensor*
• Requires the use of Oil Pump Pickup No. 24573
