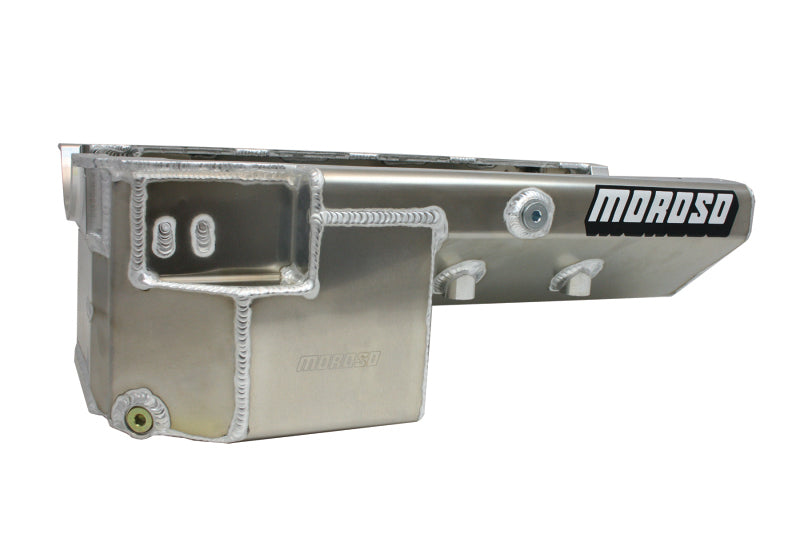

• Moroso Oil Pan BBC Gen IV 20486 Photo - Primary
1 1
Moroso Authorized Dealer

Moroso Oil Pan BBC Gen IV

Moroso Oil Pan BBC Gen IV

sku: 1ET5F | mpn: 20486
$1,079.99
$1,079.99 $1,079.99
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Aluminum, Divided Tray, External Pickup Fits: Competition Eliminator, Super Gas, Super Comp and Bracket Cars. Installation may require modifications to cross-member Check dimensions carefully before ordering Engine Application: Mark IV style (except Gen V and Gen VI)

Aluminum, Wet Sump, 7 Quart Capacity, 8" Deep

Engine Application: Mark IV style (except Gen V and Gen VI)

Fits: Fits: Competition Eliminator, Super Gas, Super Comp and Bracket Cars. Installation may require modifications to cross-member; check dimensions carefully before ordering

  • Designed to be used with a External Oil Pump, oil pan has a sump mounted billet aluminum pickup that accepts a -16AN Male Fitting
  • Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
  • Utilizes "race" pan rail bolt pattern, recommended oil pan gasket, Moroso No. 93156
  • Double kick-out design ensures up to 4.75" stroke with aluminum rods, wide main cap clearance and maximum horsepower
  • Full length solid louvered windage tray with main cap partitions for maximum power and oil control
  • Features one O-ring magnetic drain plug, two -8AN drain backs, alternator notch
  • For use with 168-tooth flywheel combination
