Tomei Oil Pan Baffle Plate 4G63 EVO 4-7

Oil Pan Baffle Plate 4G63

One product that serves various purposes, oil baffle and oil cut! The most ideal product for oil management today.

Keeping track of proper oil function inside an engine assembly is vital, especially during high performance driving. This product in essence serves the same purpose as the standard 4G63 baffle except that it has been redesigned for increased efficiency, preventing catastrophic problems such as oil pressure drop. It also serves as a oil cutter which eliminates friction loss and is recommended for anyone who wants to take their 4G63 to the next level.

Baffle Function

• Safely shelters the oil in the pan after blocking unnecessary amount of oil scooped from the crank.

• Stabilizes oil pressure inside engine.

• Prevents oil cavitations in passages.

• Securely supplies oil pressure to related components.

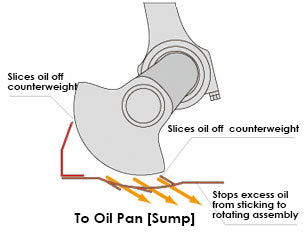

Oil Cutter Function

• Literally slices off the excess oil accumulated on the crankshaft.

• Prevents unwanted friction caused by crankshaft oil slushing.

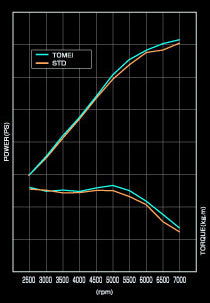

• Increased power output at higher RPM band.

• Increased torque output throughout entire RPM band

Specifications

Category: Oil Lubrication Oil Pan Baffle Plate

Engine: 4G63

Weight (lb): 2

Dimension (Inch): 9x14x3

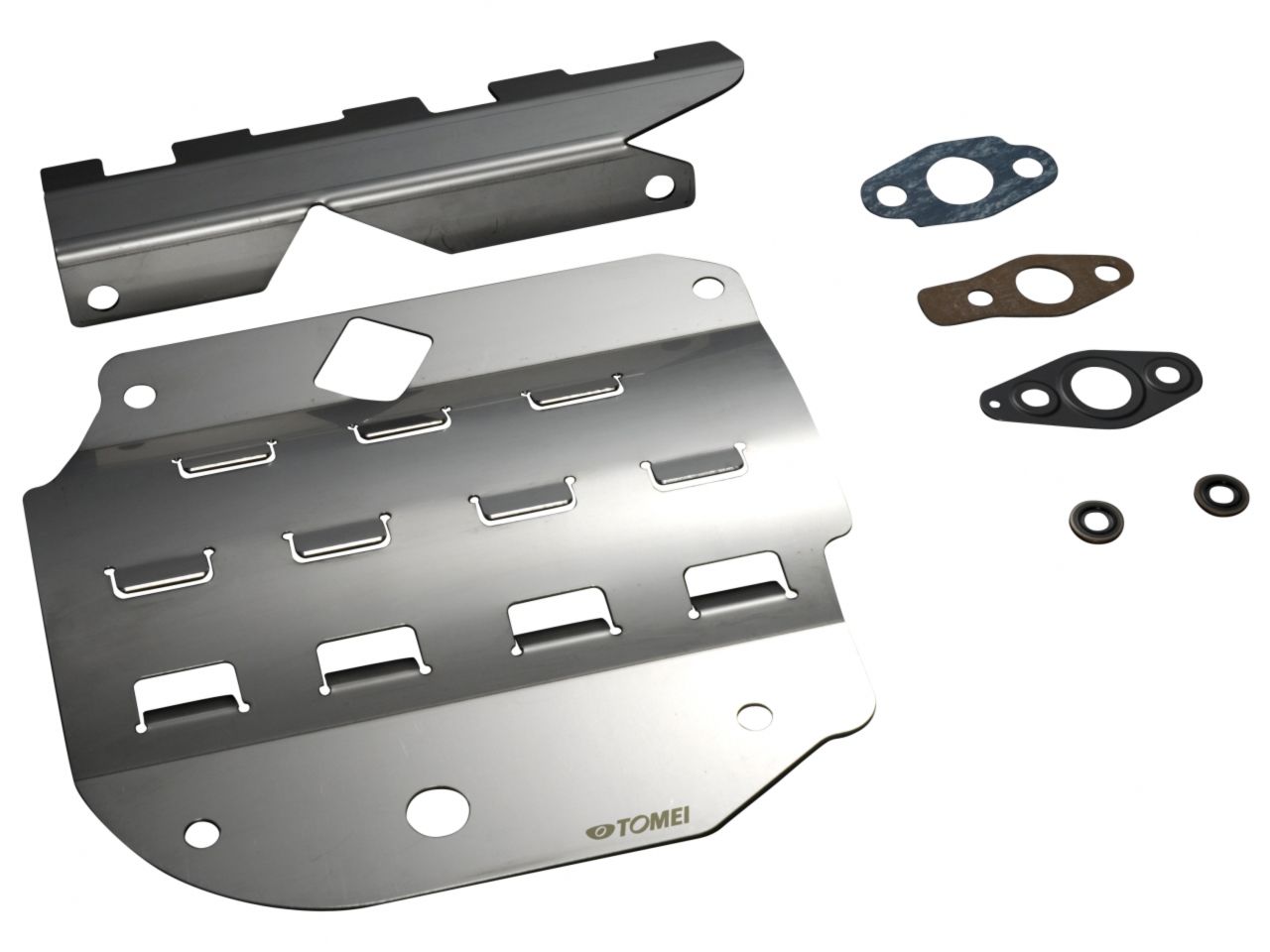

Kit Contents
/EVO IV-VI : CENT/RH Plate, Gaskets
/EVO VII-IX : CENT/RH/LH Plates, Gaskets, Hardware

Application:
* This will fit on OEM 2.0L, Tomei 2.2L & Tomei 2.3L Stroker Kits.
