GReddy OIL COOLER KIT STD VA (D-F) 13ROW JDM SPEC CIRCUIT SPEC 12064610
GReddy OIL COOLER KIT STD VA (D-F) 13ROW JDM SPEC CIRCUIT SPEC 12064610
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Purchase information
Returns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Engine Oil Cooler Kit
- Category
- Oil Coolers
- Item condition
- New
- Shipping dimensions (L × W × H)
GReddy Oil Cooler Kit Standard MC Rear Inner Fender 13row Circuit Spec "Kouki"
Product Features
■ As the second part of the VAB oil cooler kit, we have added a circuit-spec inner fender type.

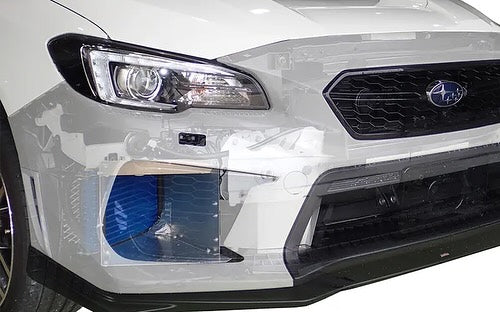

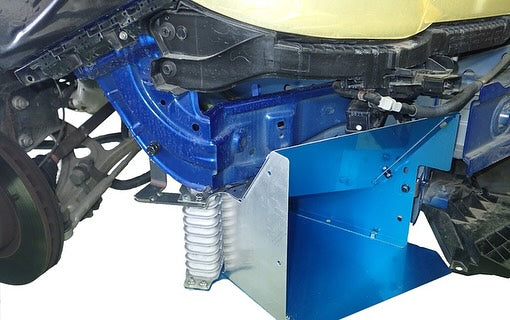

■ By installing the oil cooler core in the inner fender, the cooling air to the radiator is not blocked, and stable cooling performance
is demonstrated even under harsh usage conditions such as circuit driving.
■ The oil line around the exhaust manifold uses a steel pipe designed specifically for horizontally opposed with safety in mind, preventing problems caused by heat.

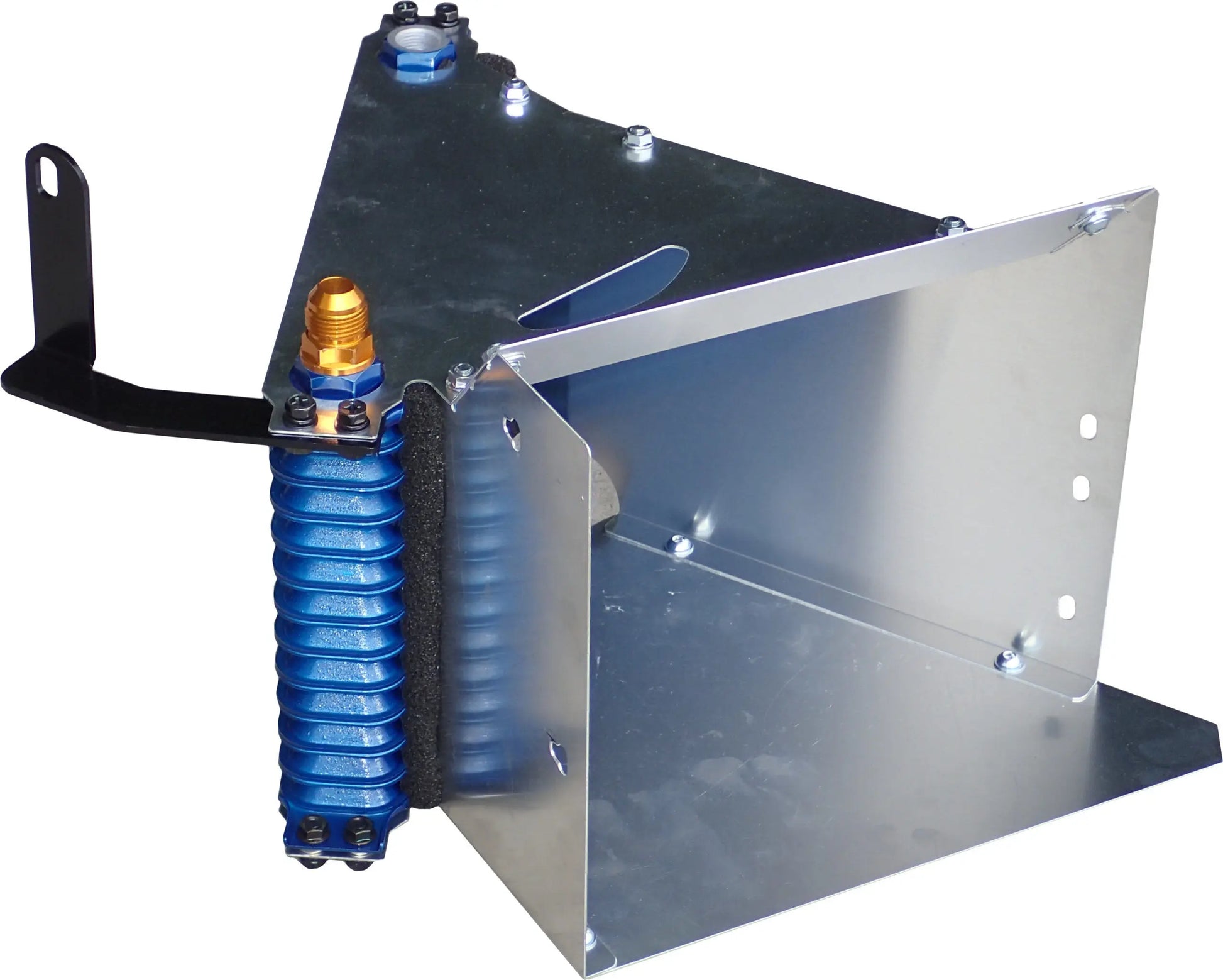

■ An inlet duct (wind guide plate) to efficiently guide the running wind to the oil cooler core and an outlet net to exhaust the air that has passed through the core to the tire house are included.
It was. * To install the outlet net, it is necessary to process the mudguard front.

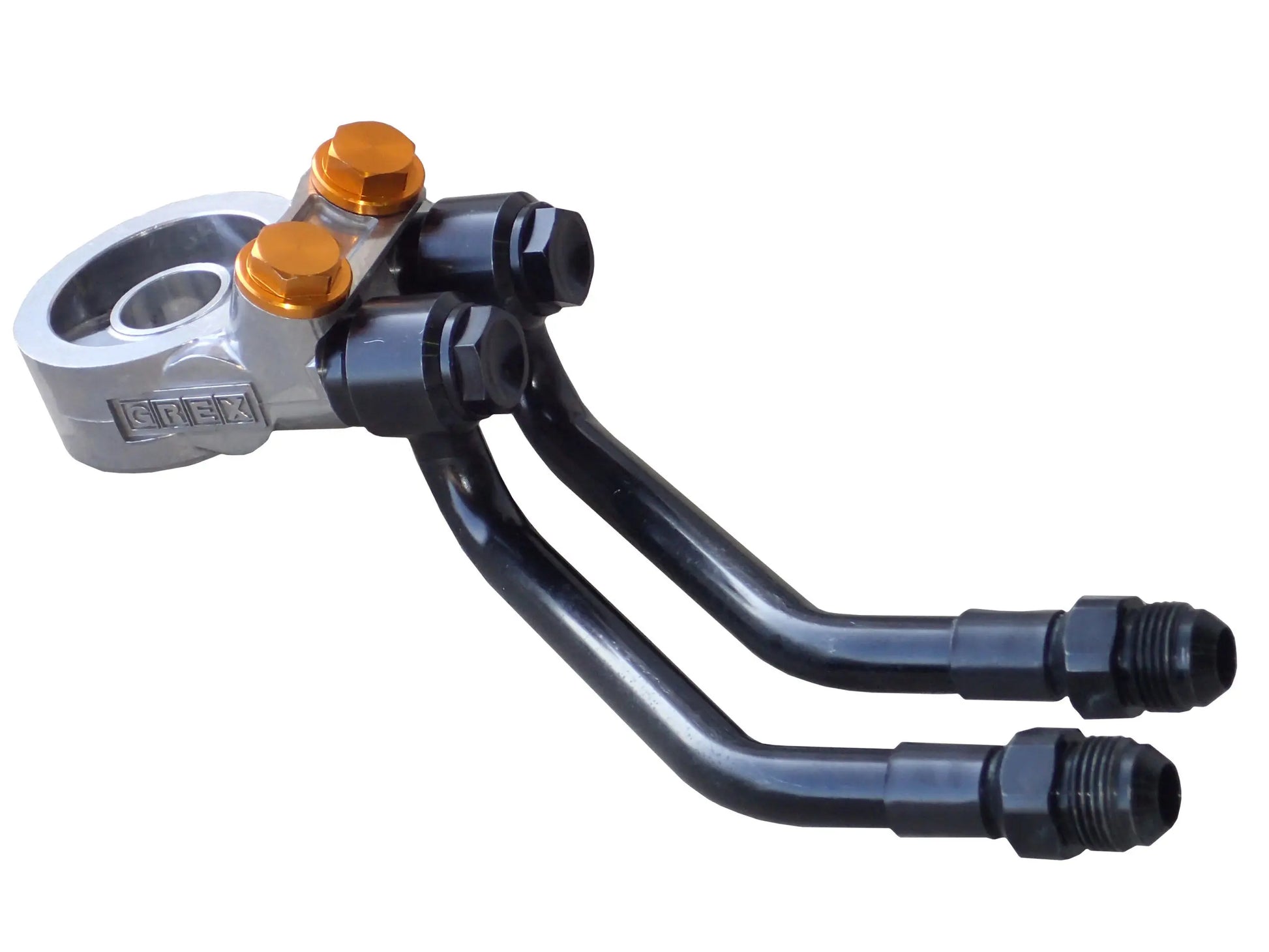

oil line pipe

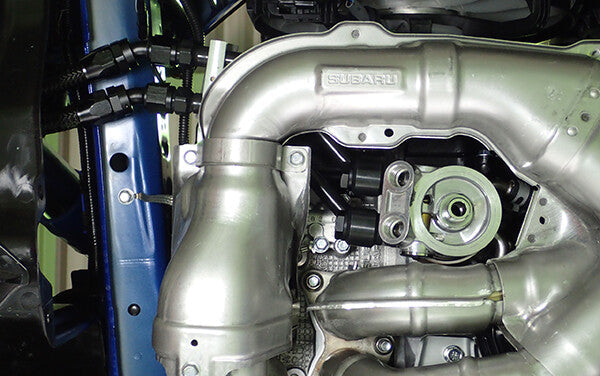

The oil cooler kit has a structure in which a block is placed at the oil element installation part to take out the oil.

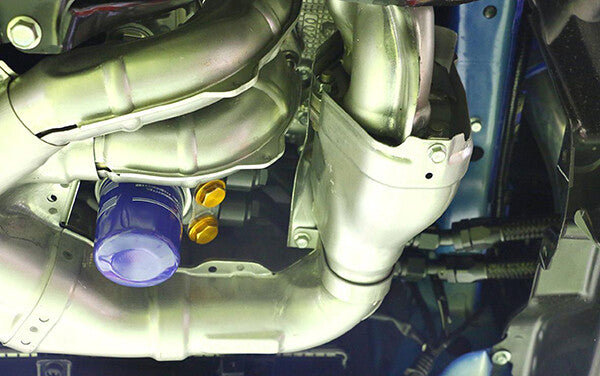

However, the oil outlet of the EJ engine is surrounded by the exhaust manifold, making it extremely susceptible to heat. In the worst-case scenario, we have determined that the mesh hose that comes with the regular kit is extremely dangerous, as the hose may be damaged.
Therefore, we have developed a kit that can be used safely even on the harshest circuits by using a metal pipe instead of the usual mesh hose.
Specification
・Core position: In the right inner fender
・Thermostat: Built-in (Operating temperature 75°C~82°C ±2°C)
・Hose: Nylon mesh hose
・Fitting: Trust original fitting (black anodized finish)
* The resonator must be removed.
* Cannot be installed at the same time as the GReddy intercooler.
* Undercover, mudguard, bracket - front center LWR needs to be processed.
Reference working time : 5.0H

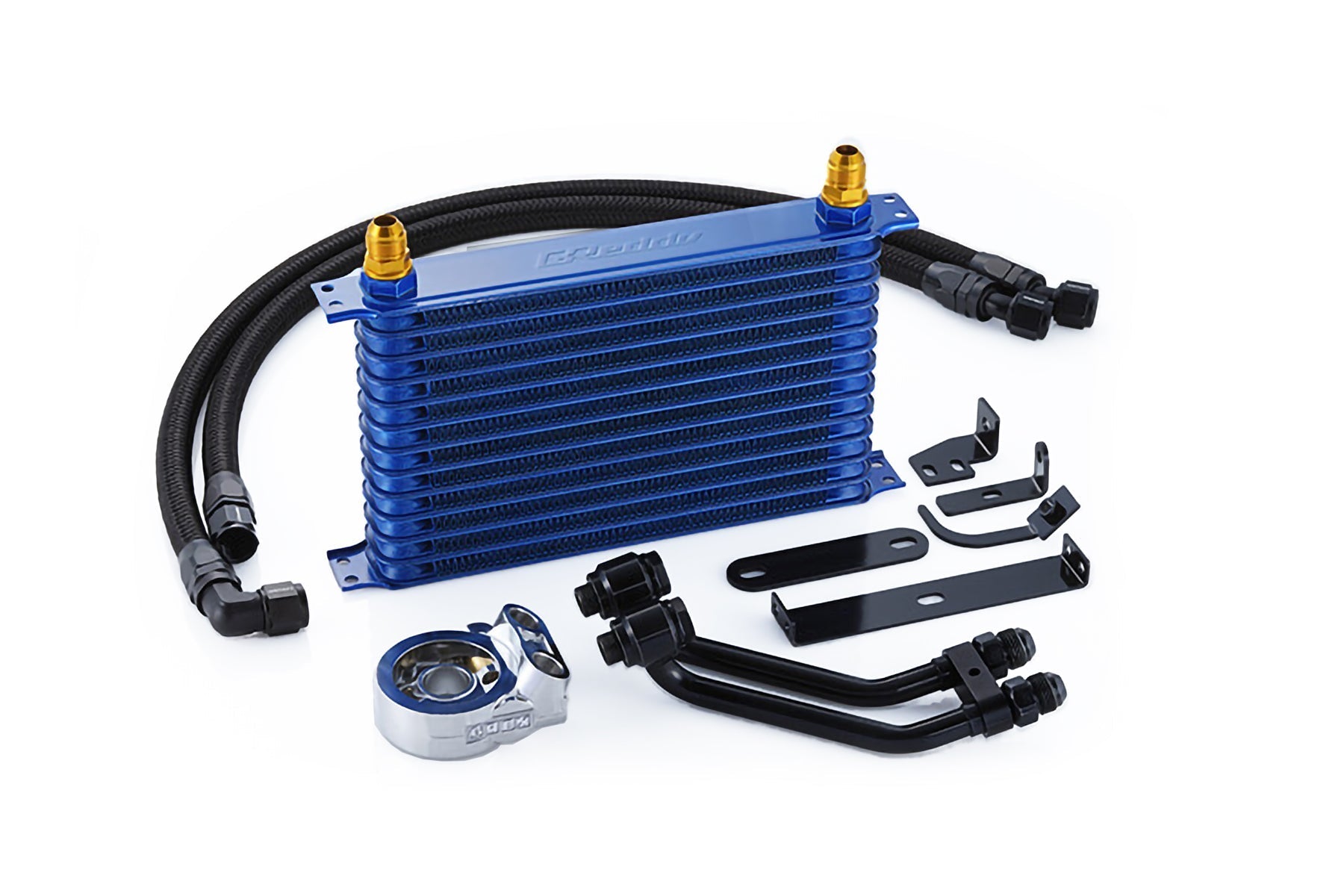

[Product composition]
・Core body (13 stages)
・Hose (770mm / 540mm)
・Fitting (90°/45°/45°/180°)
・Oil block (TYPE-E)
・Inlet duct (wind guide plate)
・Outlet net
・ Pipe set for oil line removal
・ Dedicated stay set
・ Center bolt M20 x P1.5 engines require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01 1500, OX-02 1600, OX-03 1500 are applicable).
[Compatible models] Subaru WRX STi
Compatible model: VAB (D-F) "Kouki"
Engine model:
EJ20 Year: 17.06-20.04
p/n: 12064610
