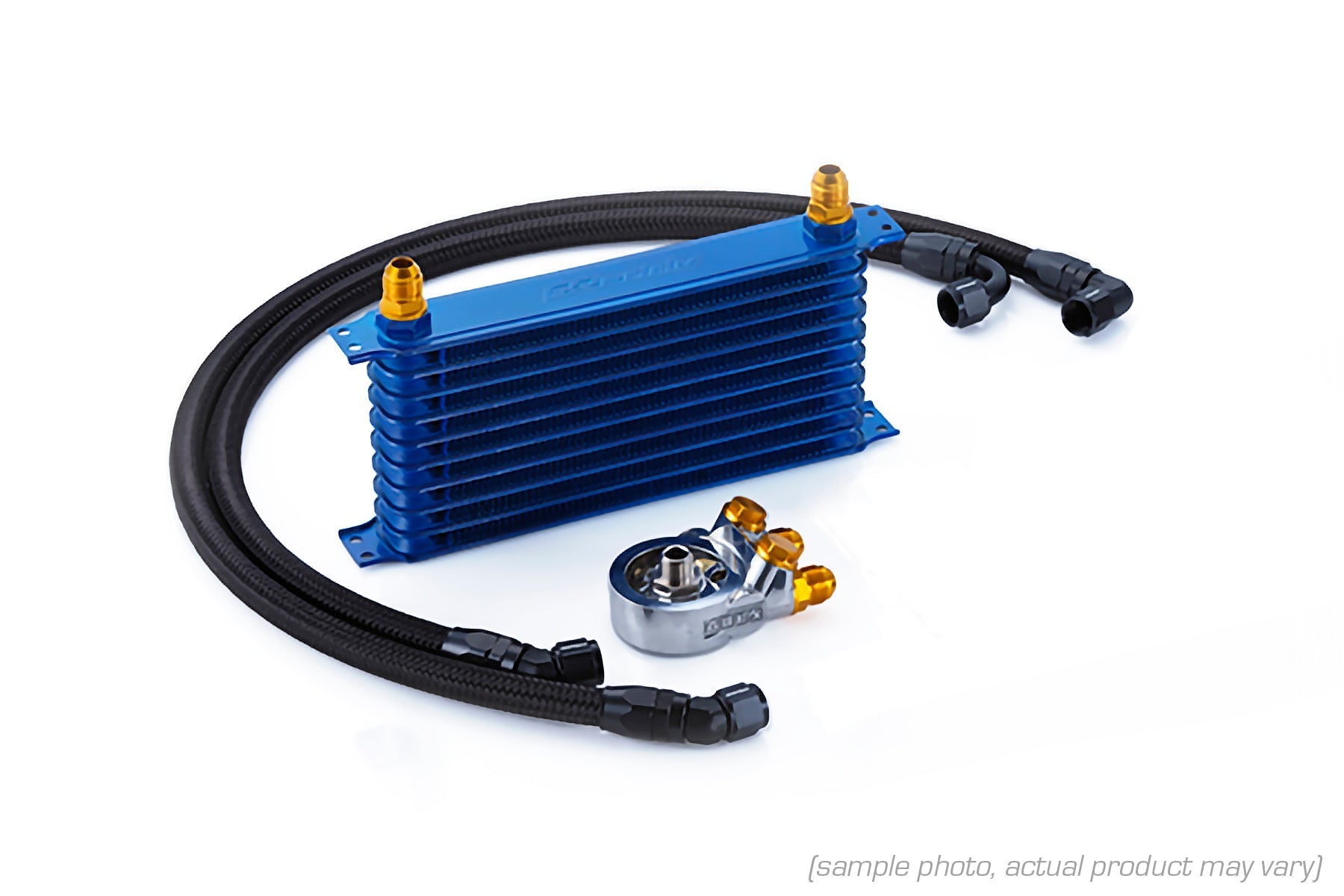

GReddy OIL COOLER KIT NS1010G/STD ND MIATA 12044607

Oil cooler kit STD 10row for JDM ND Miata

Product Features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1010G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Center bolt size: M20 x P1.5

Compatible models: MAZDA MIATA

• Vehicle model: ND5RC
• E/G model: P5-VP
• Year: 15.50 ~
• CODE: 12044607

Remarks

• Engines with center bolt M20 x P1.5 require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
• Undercover processing required.
