GReddy OIL COOLER KIT NS1010G/STD FD2 Civic 12054611

GReddy OIL COOLER KIT NS1010G/STD FD2 Civic 12054611

sku: 9IW5F | mpn: 12054611
$820.00
$0.00 $820.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

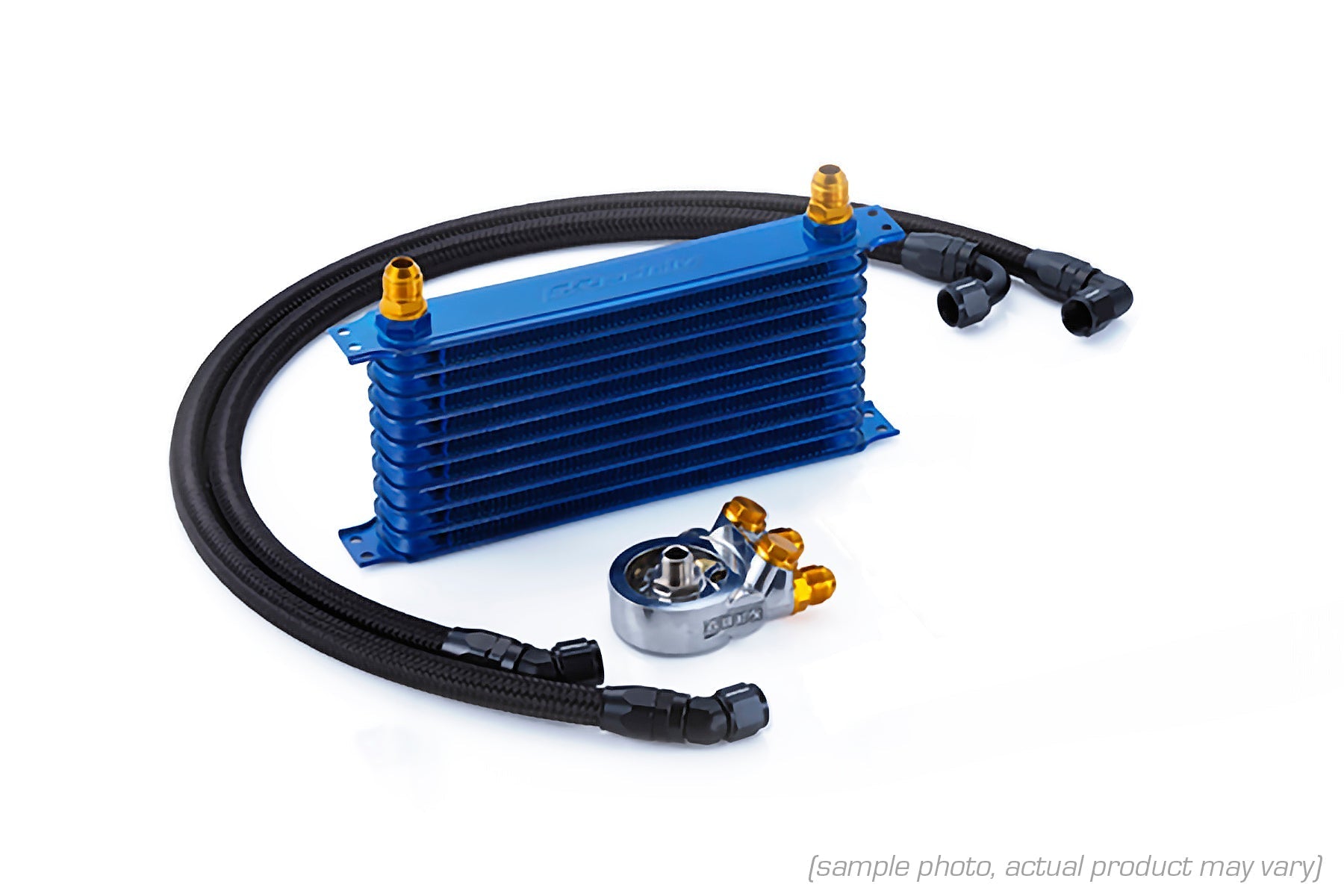

Oil cooler kit STD 10row for JDM FD2 Civic

Product Features

  • This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
  • A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

  • Core type: NS1010G
  • Thermostat: Built-in block
  • Core installation position: Inside front bumper
  • Center bolt size: M20 x P1.5

Compatible models: HONDA CIVIC

  • Vehicle model: FD2 Civic Type-R
  • E/G model: K20A
  • Year: 07.03 ~
  • CODE: 12054611

Remarks

  • Cannot be installed on VGS (Variable Gear Steering) vehicles.
  • Engines with center bolt M20 x P1.5 require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
  • Undercover processing required.
