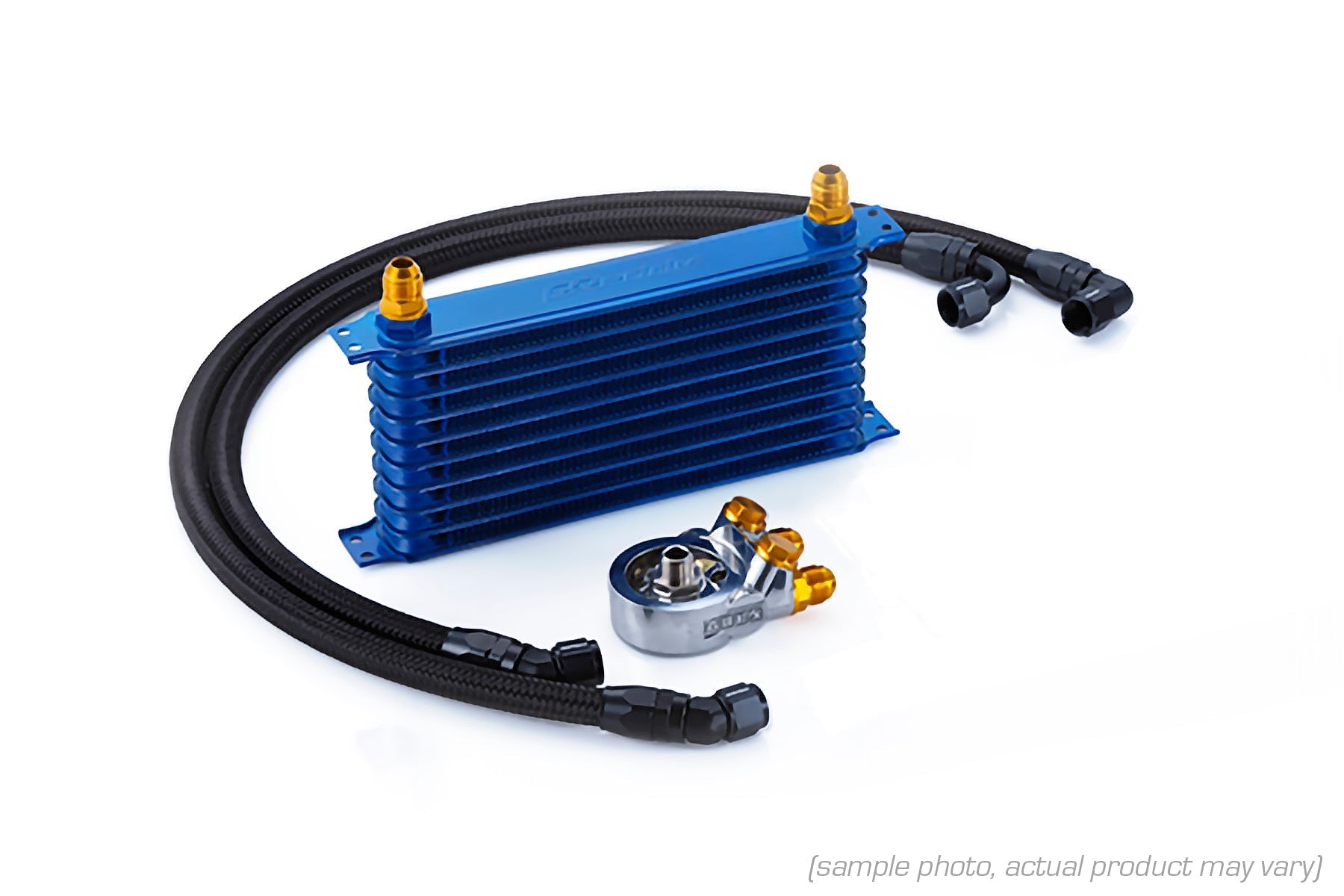

GReddy OIL COOLER KIT NS1010G/STD AE111 Corolla 12014606

Oil cooler kit STD 10row for AE111 Corolla (4A-GE)

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1010G
• Thermostat: Built-in block
• Core installation location: In front of Radiator
• Center bolt size: 3/4-16UNF

Compatible models: JDM AE111

• Vehicle model: Corolla
• E/G model: 4A-GE
• Year: 1995 05 〜 2000 08
• CODE:12014606

remarks:

• Reinforce requires cutting modification
• Radiator upper air guide plate requires modification.

• Engines with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
