Earl's Oil Cooler Adapters

Oil Cooler Adapters

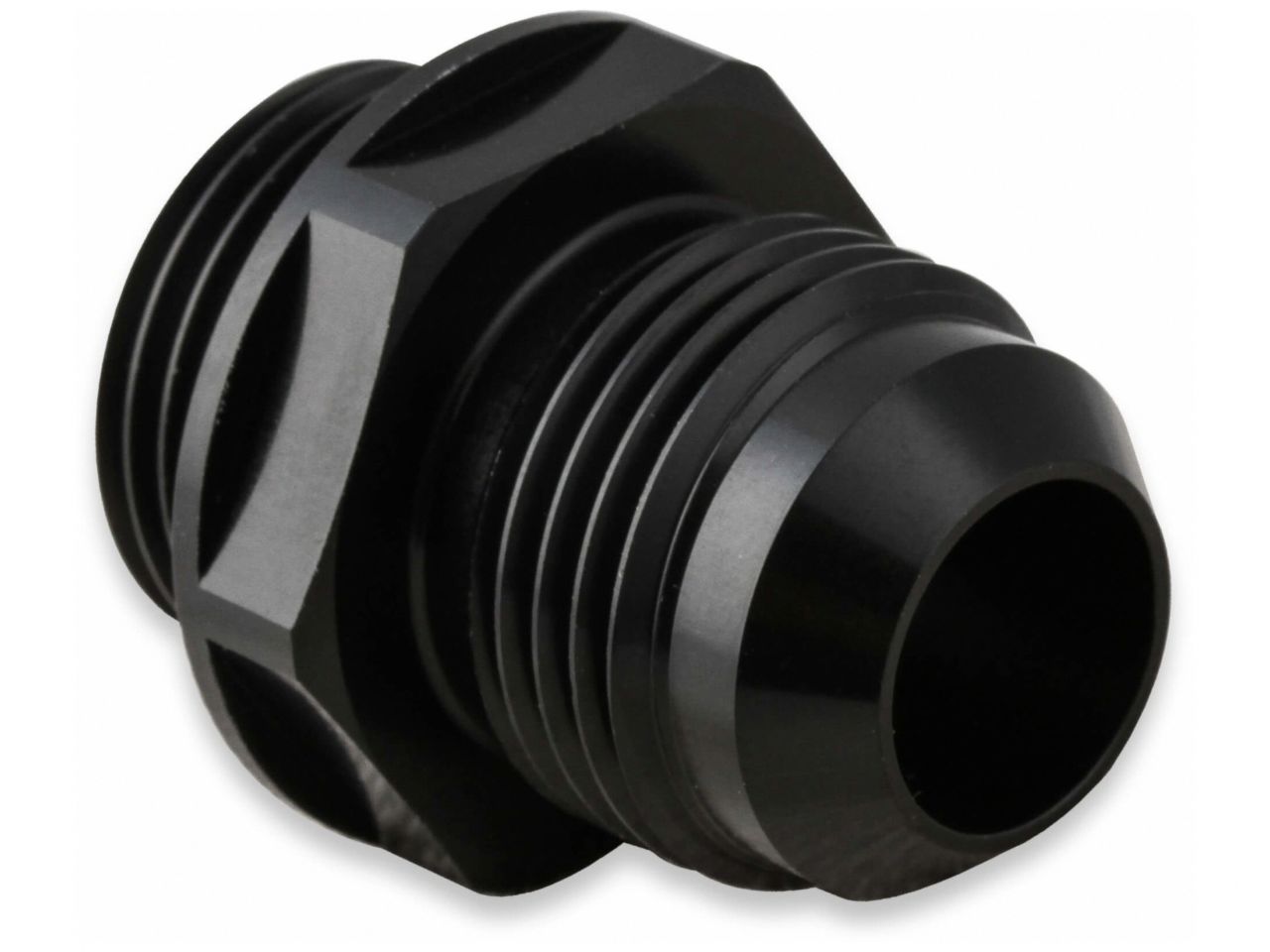

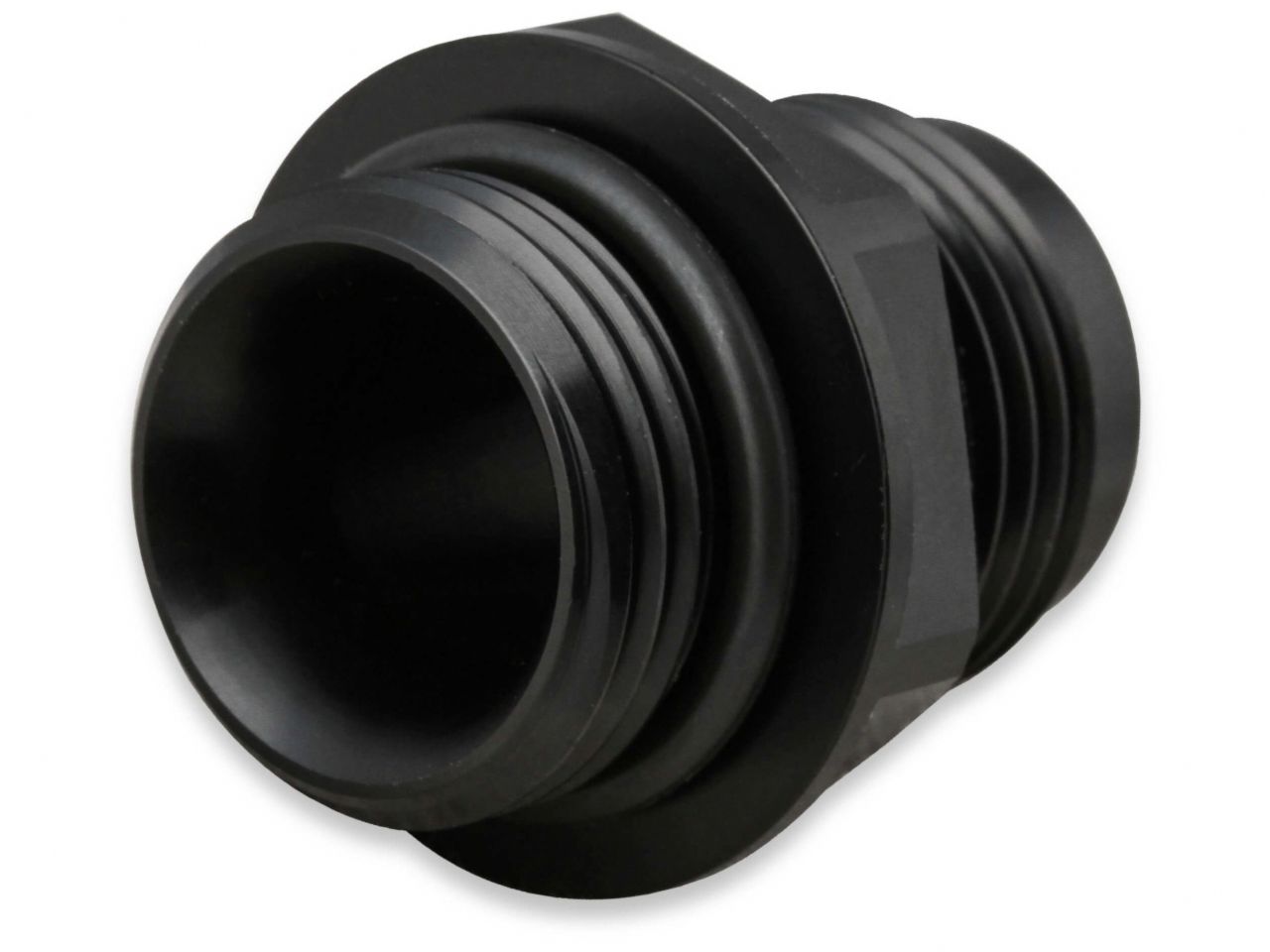

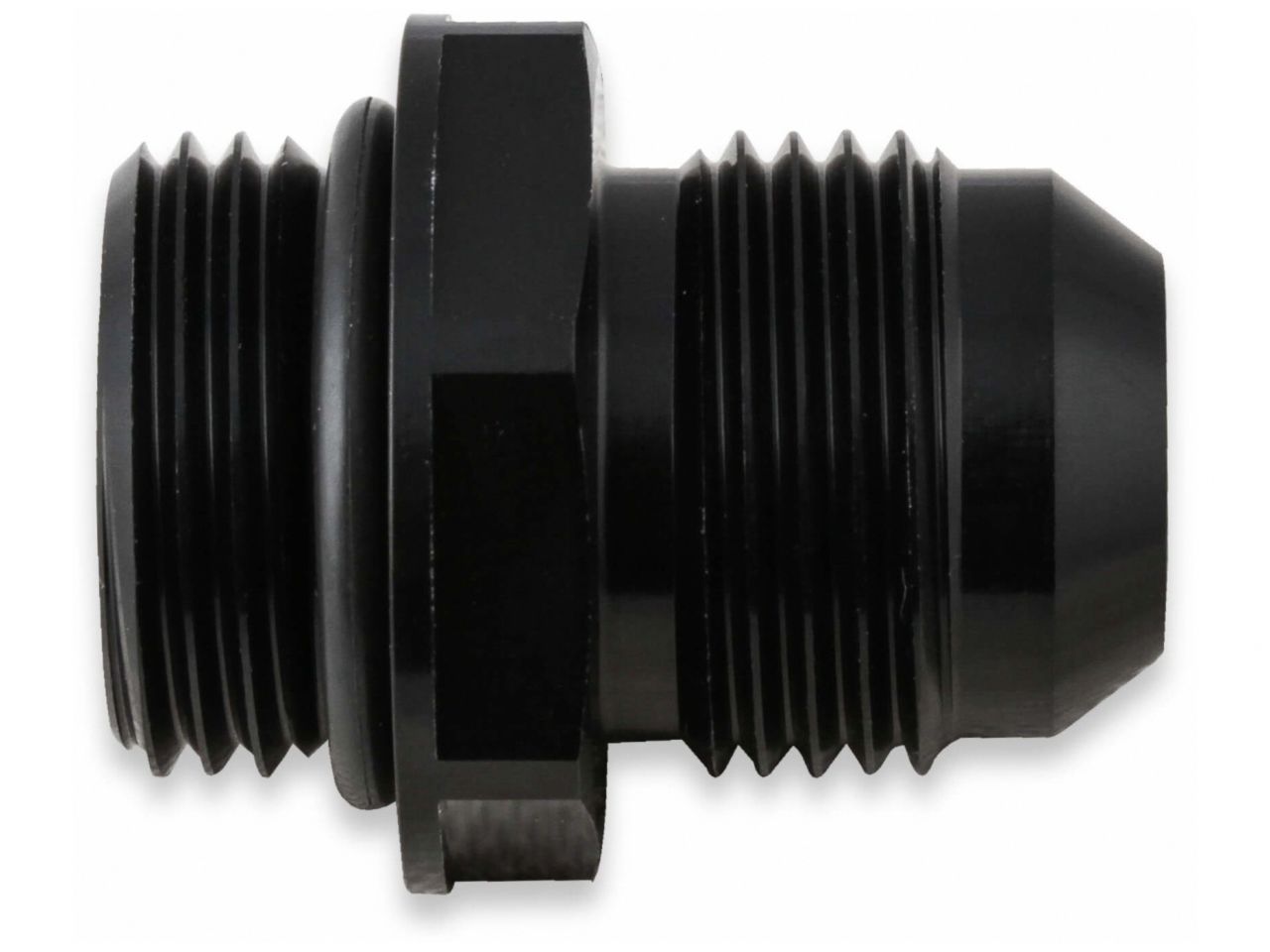

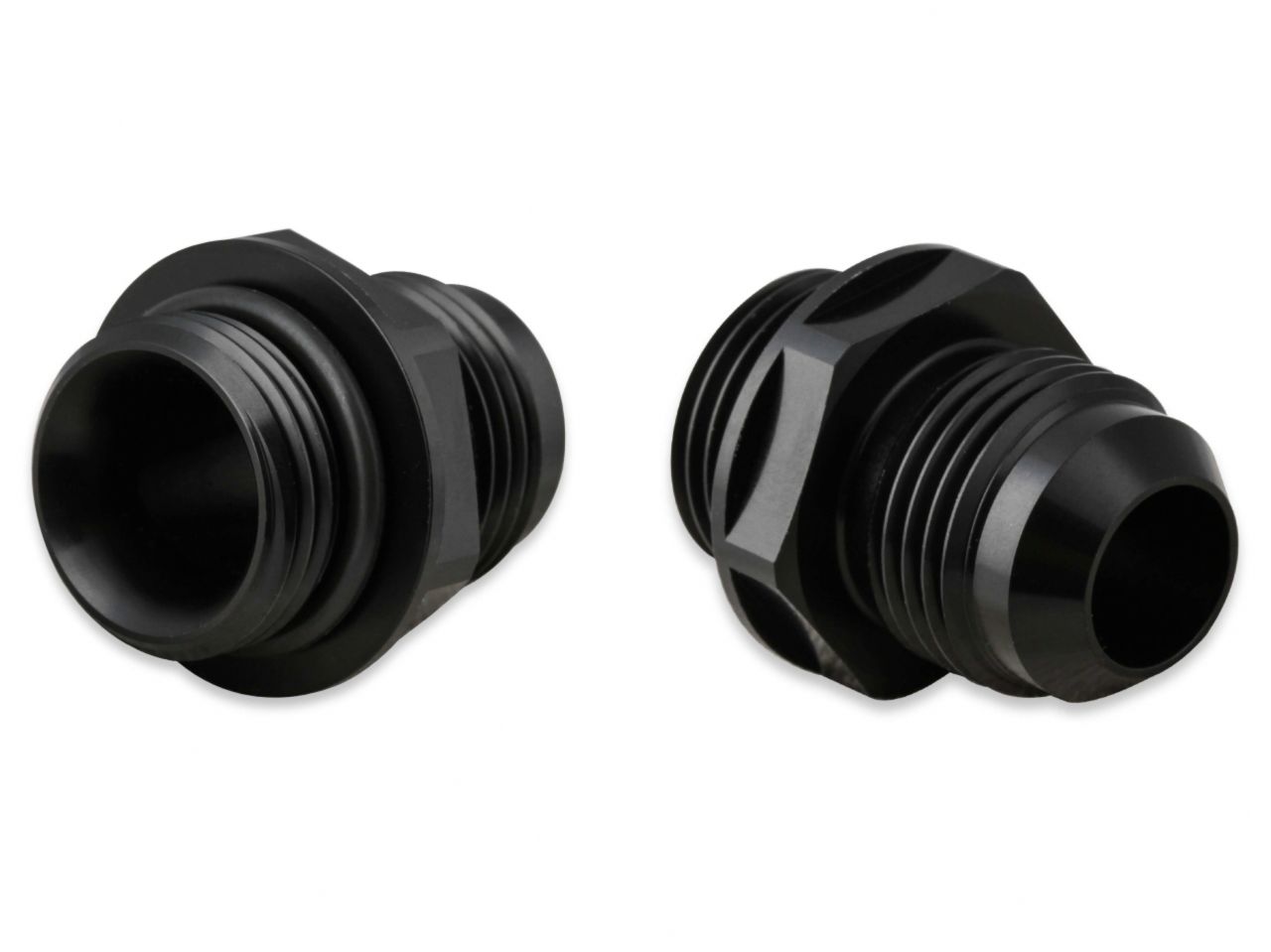

These AN port style fittings are designed for use with Earl's UltraPro and Temp-A-Cure oil coolers. The O-ring port threads are slightly shorter than most ORB fittings to avoid bottoming out inside the cooler and to improve oil flow. These fittings are available w/ -6, -8, -10, and -12 AN male Flare (the ORB end is -10 AN). Sold in packages of 2 pieces.

Features:

• Earl’s Oil Cooler Adapter Fittings are Now Available w/ Black Anodized Finish

• Designed for Use w/ Earl’s UltraPro & Temp-A-Cure Oil Cooler

• Material: 2024 Aluminum

• Choose from -6, -8, -10, or -12 AN Male Flare (-10 AN O-Ring Male on Cooler End)

• (2) Pieces Per Package

• Improved Appearance When Used w/ Earl’s Black Oil Coolers

Specifications

Adapter AN Size (A): 10 AN MALE

Adapter AN Size (B): 7/8-14 (AN 10) O-Ring

Adapter Port Size (B): 7/8-14 (AN 10) O-Ring

Adapter Type: AN Port Adapter

Emission Code: 5

Finish: Anodized Black

Material: 2024 Aluminum

Port Size: 7/8-14 Male (-10 O-Ring Boss)

Product Line: Premium

Product Type: Oil Cooler

Quantity Per Pkg.: 2
