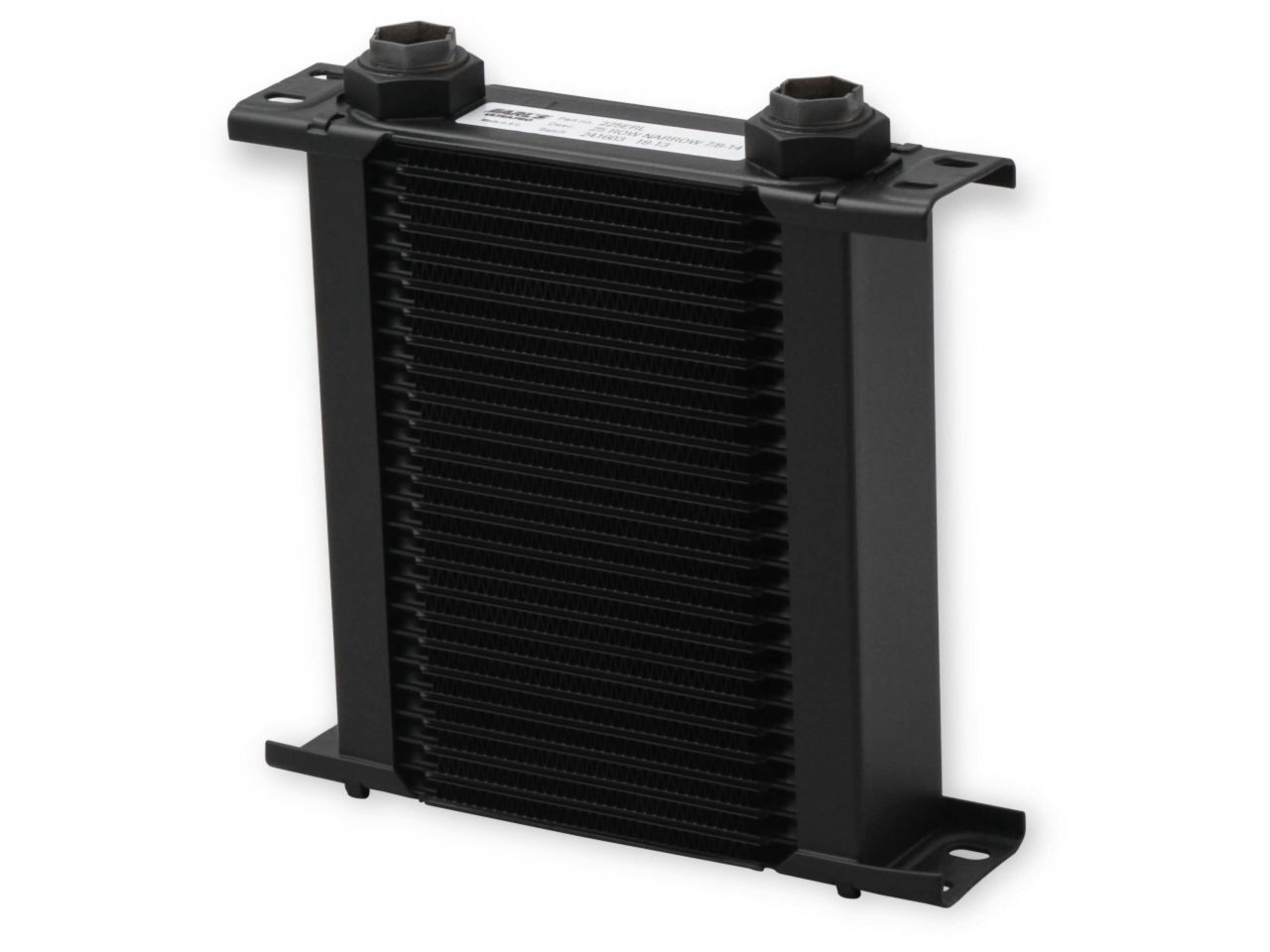

Earl's 25 Row Oil Cooler Core Black

Earls new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.

Features:

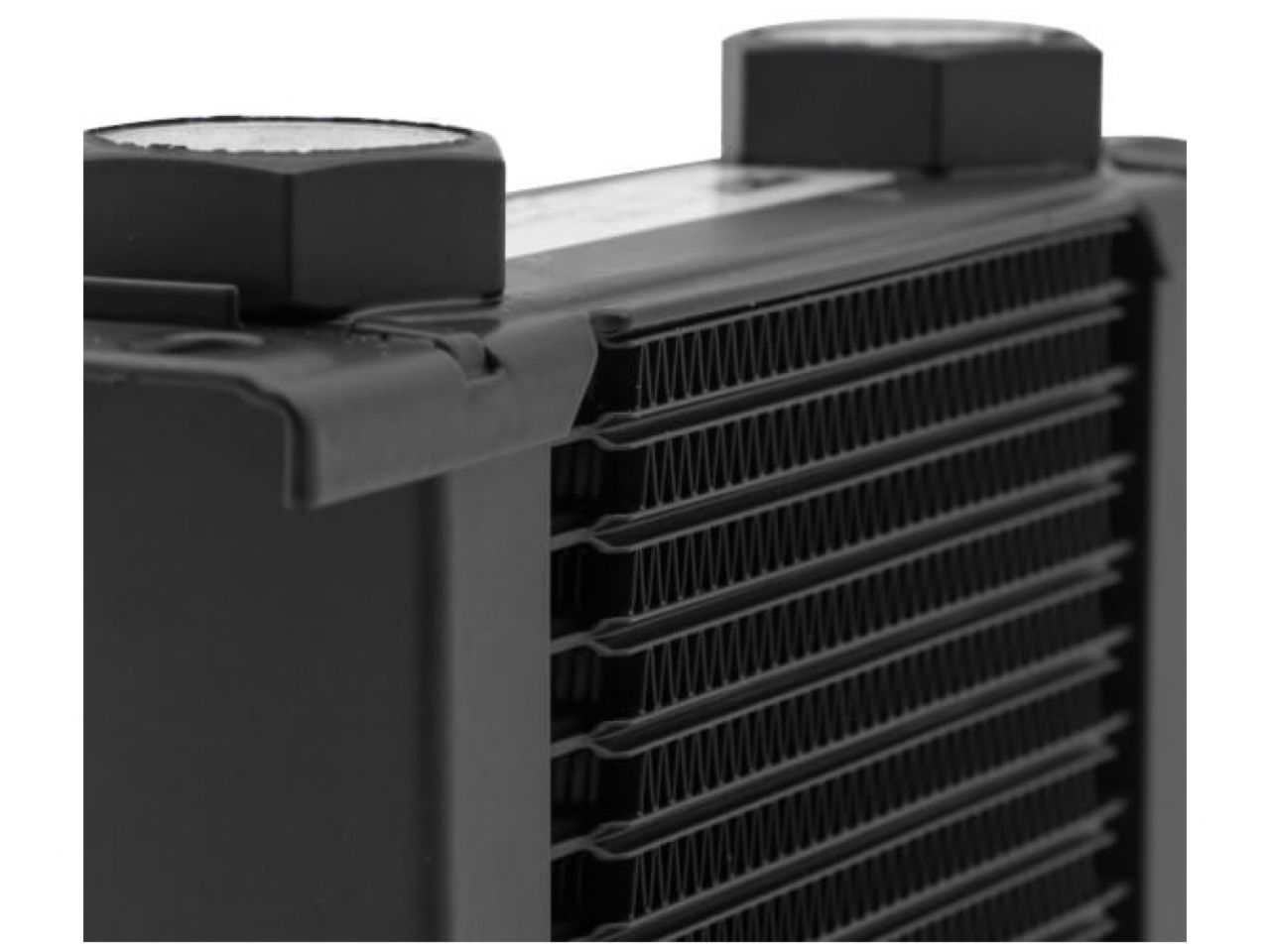

• Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
• Made Using State of the Art Brazing Technology
• Highly Efficient Design w/ Minimal Pressure Drop
• Extremely Durable Lightweight Aluminum Construction w/Black Finish
• (3) Width Options – Narrow 8.25”, Wide 12.99”, and Extra Wide 15.94” Overall Width
• (10) Height Options - w/ 7 to 60 Rows (2.09” to 18.31” Tall)
• (3) Fan Pack Style Coolers Include the Oil Cooler, Spal® Cooling Fan(s) & Shroud
• Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports
• (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order)
• Optional Mounting Brackets – Sold Separately

Specification

• Body Width (Overall): 8.250"
• Brackets Included: No

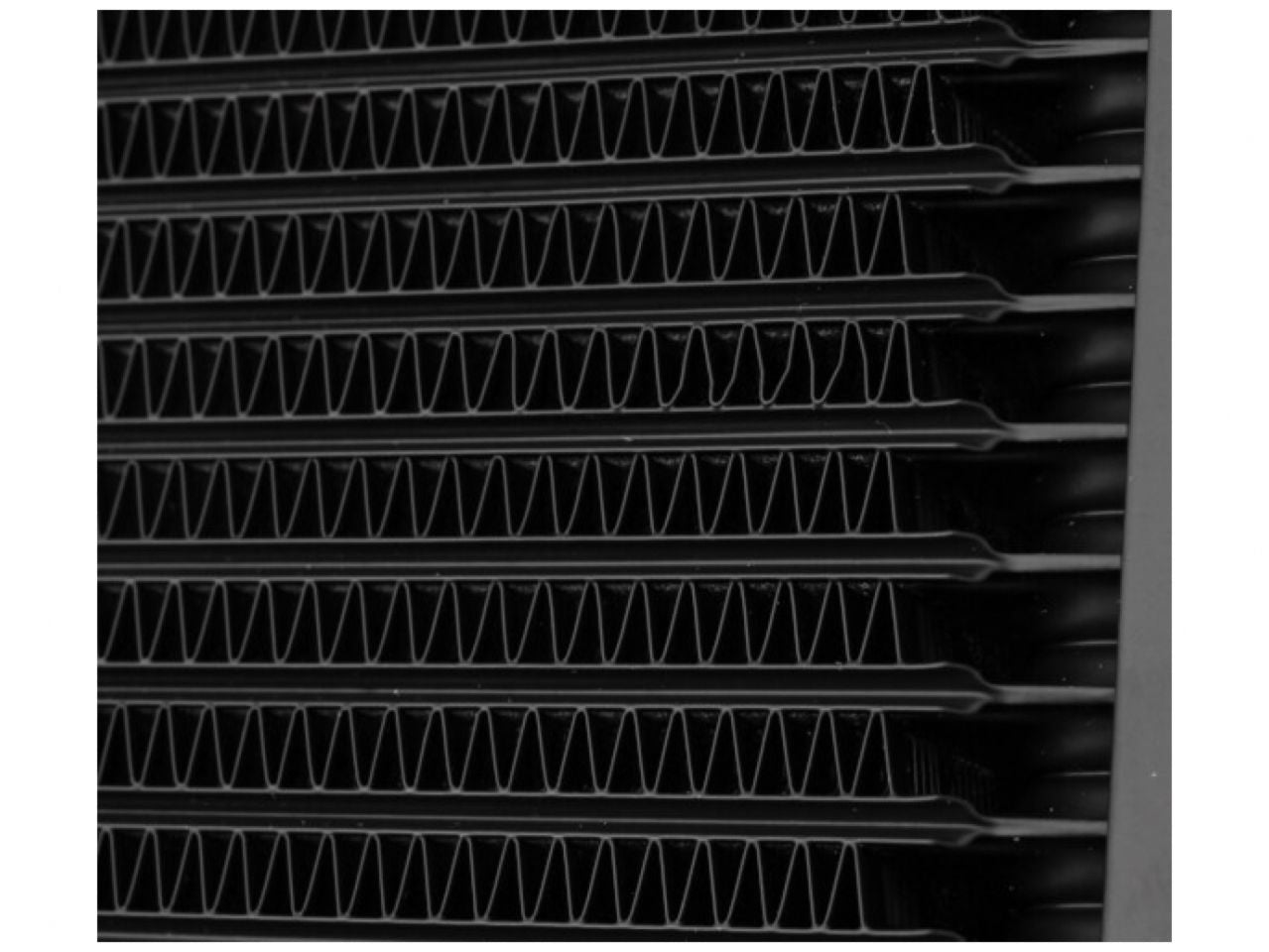

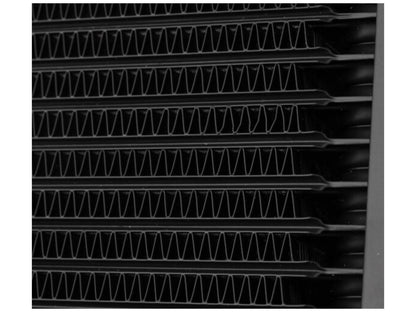

• Construction: Stacked Plate - Brazed
• Cooler Fittings Included: No
• Emission Code: 5
• Engine Oil BTU Range: 17,000-22,000
• Finish: Black
• Fitting Centers: 4.800"
• Height: 7.600"
• Material: Aluminum
• Mounting Bracket Width: 7.500"
• Mounting Brackets: 200ERL

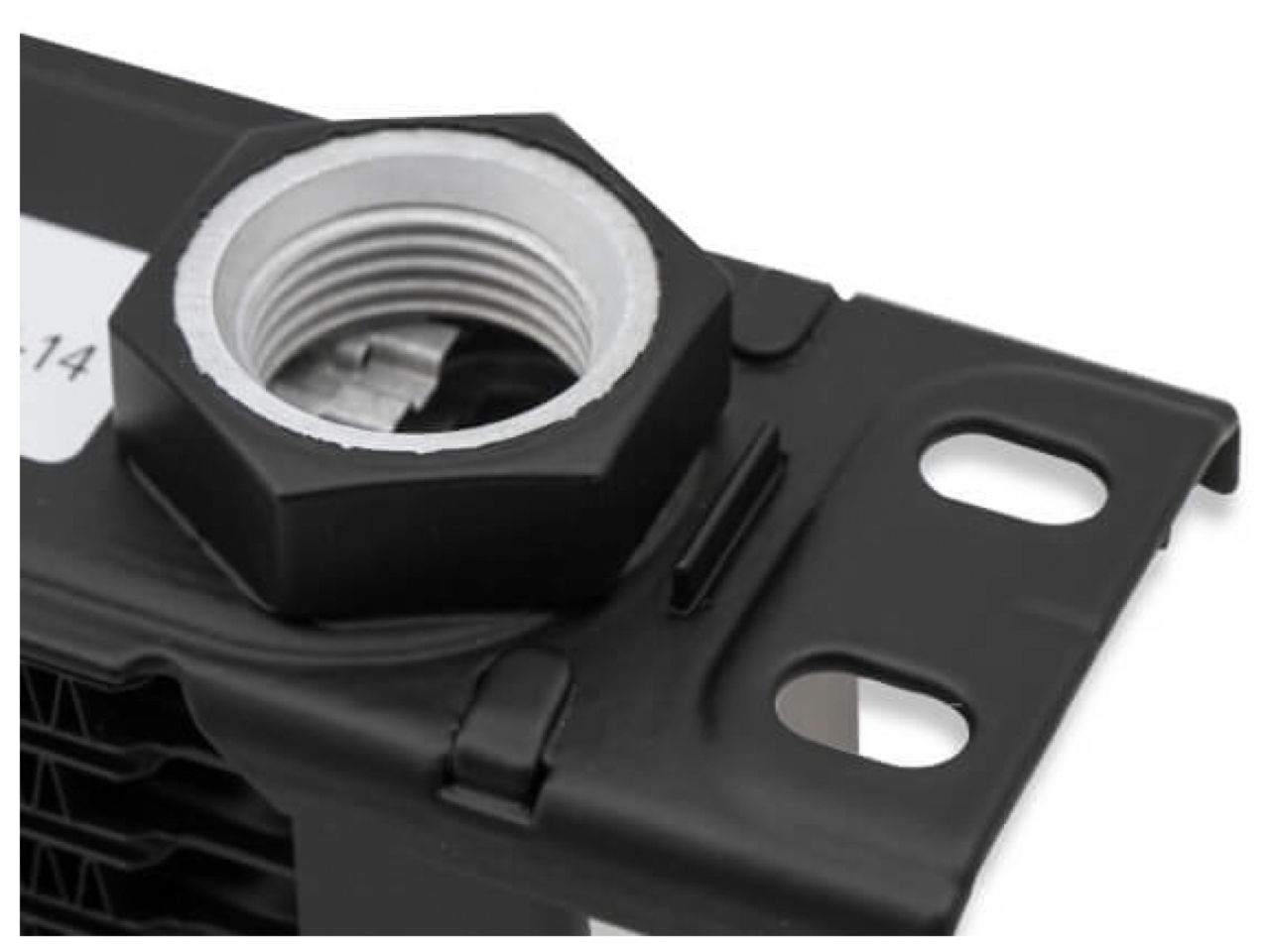

• Port Size: 7/8-14 Female (-10 O-Ring Boss)
• Product Line: UltraPro
• Product Type: Oil Cooler
• Rows: 25 Rows
• Temperature Range: -40° F to 302° F
• Thickness: 2.000"
• Volume: .28 Quarts
• Weight: 2.00 Lbs
• Width: Narrow Cooler
• Width (Less Mounting Ears): 6.438"
