GKTech OEM length to +30mm

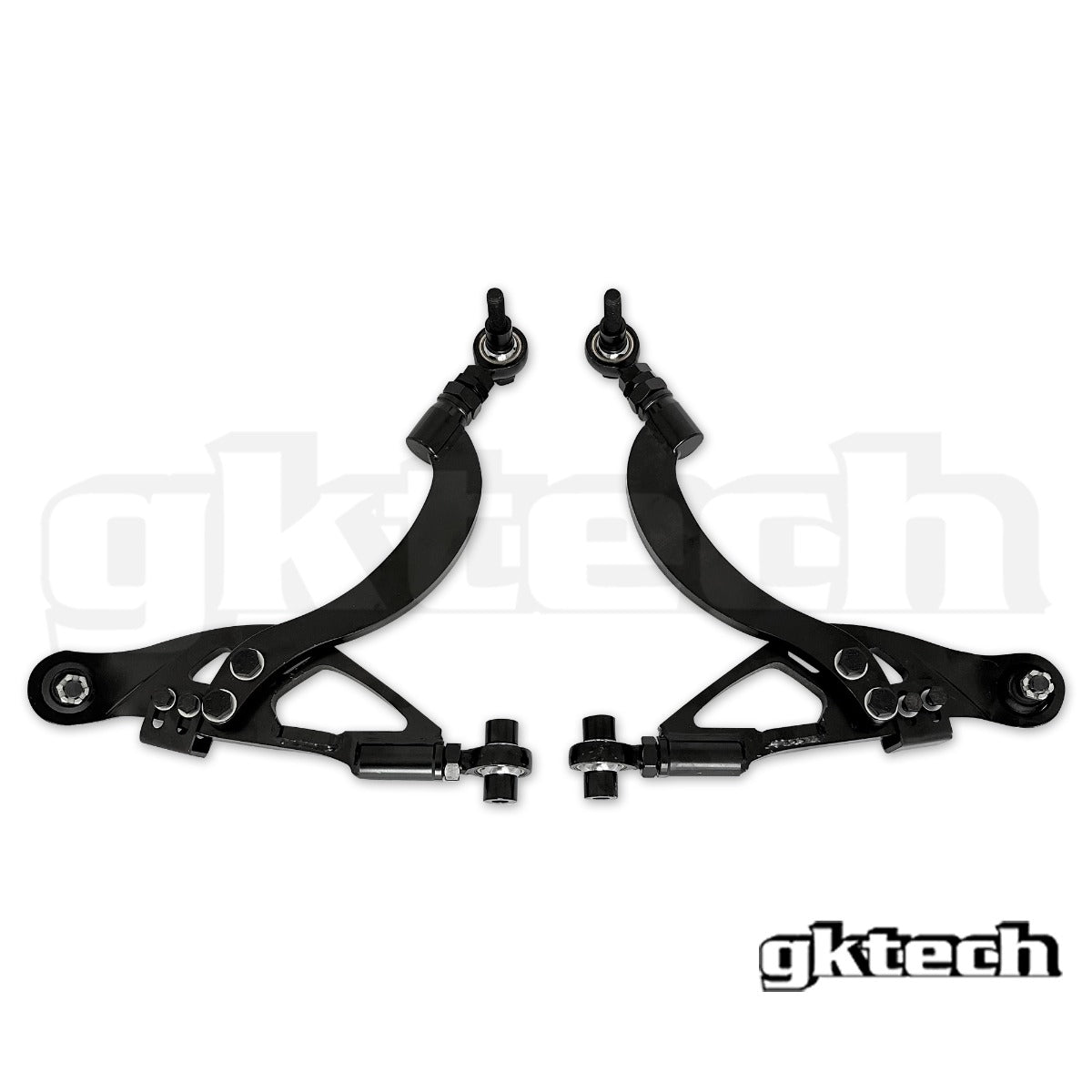

The GKTECH Super Lock front lower control arms simplify, improve and replace the front lower control arm and caster rods on the FR-S / GR86 or BRZ, while also supporting around 65+ degrees of steering lock.

These arms are designed based off CMM data, they are CAD designed, FEA tested, have CNC machined ends and the main body is laser cut and bent from 4130 Chromoly Steel.

Adjustable, at their minimum length they start at OEM length and adjust out to +30mm from OEM (also available in an +40mm through to +70mm)

Designed with the OEM knuckle in mind, meaning they will work with our bolt on steering kit which uses the OEM knuckle.

As we do all our arms, common sized PTFE bearings throughout the arm, which can be found locally, however, we do have them on the shelf should you wish to carry spares. We also use our high misalignment rose/ heim joints to allow the arm to rotate freely.

Dust boots to protect the rose/ heim joints are included and have lock stops built into the arm for those that want to dial down the fun.

Finally, the arms are E-coated (electrophoresis coating) for rust prevention.

- Allow for 65+ degrees of steering lock
- Adjustable from OEM length through to +30mm
- Designed to be used with OEM knuckle
- Adjustable lockstop
- 3 swaybar mounting positions for adjustment
- On car caster adjustment (6.75 default, max 10.2, min 4)
- High misalignment rose/ heim joints
- CMM measured, CAD designed, FEA tested
- CNC machined ends
- Laser cut 4130 Chromoly steel design

Vehicle Compatibility:
- Scion FR-S
- Toyota ZN6 GT86
- Toyota ZN8 GR86
- Subaru ZC6 BRZ
- Subaru ZD8 BRZ
