GReddy UNIVERSAL GREDDY OIL COOLER KIT W/ FILTER RELOC. 120044XX
GReddy UNIVERSAL GREDDY OIL COOLER KIT W/ FILTER RELOC. 120044XX
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Purchase information
Returns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Engine Oil Cooler Kit
- Category
- Oil Coolers
- Item condition
- New
- Shipping dimensions (L × W × H)

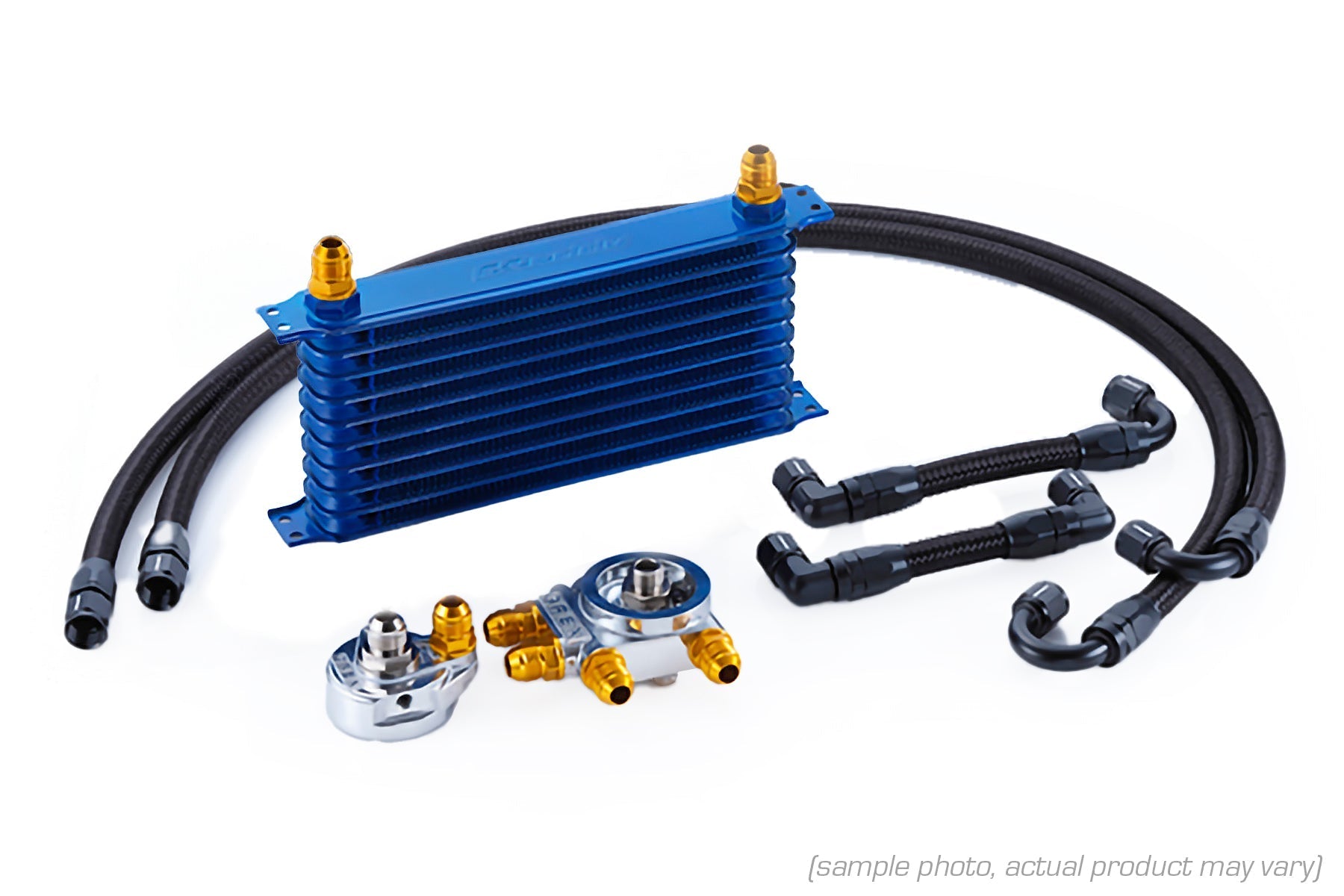

Universal oil cooler kit with filter relocation
includes: AN10: 1x 3m hose, 4x straight fittings, 2x 45°, 2x 90°
* All kits listed below must use a 3/4-16UNF Oil Filter (GReddy OX-1, OX-3 type)

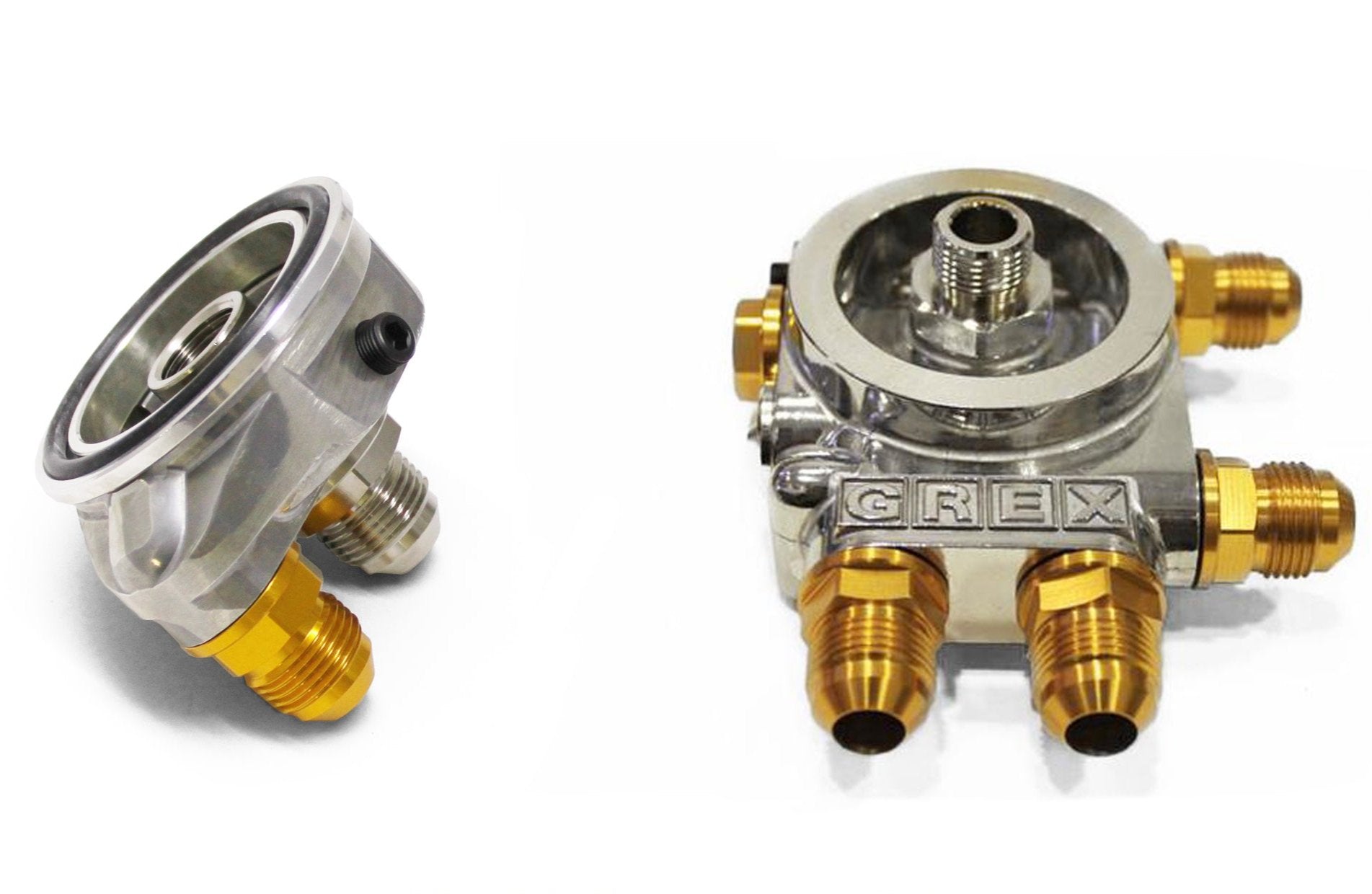

** Optional Reloc. (Type-I) 12401182CB replacement M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)
| Center Bolt Size | O-ring size | Core Type | Number of Cores | Hose Fittings | thermostat | CODE | remarks |
|---|---|---|---|---|---|---|---|
| 3/4-16UNF | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004400 | |
| GR1208G | 12 levels | AN8 | Built-in block | 12004430 | |||
| NS1310G | 13 steps | AN10 | Built-in block | 12004402 | |||
| NS1610G | 16 levels | AN10 | Built-in block | 12004403 | |||
| 62φ | NS1010G | 10 levels | AN10 | Built-in block | 12004410 | ||
| NS1310G | 13 steps | AN10 | Built-in block | 12004411 | |||
| NS1610G | 16 levels | AN10 | Built-in block | 12004412 | |||
| M20×P1.5 | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004405 | *1 |
| GR1208G | 12 levels | AN8 | Built-in block | 12004431 | *1 | ||
| NS1310G | 13 steps | AN10 | Built-in block | 12004407 | *1 | ||
| NS1610G | 16 levels | AN10 | Built-in block | 12004408 | *1 | ||
| 62φ | NS1010G | 10 levels | AN10 | Built-in block | 12004414 | *1 | |
| NS1310G | 13 steps | AN10 | Built-in block | 12004415 | *1 | ||
| NS1610G | 16 levels | AN10 | Built-in block | 12004416 | *1 |
*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.
