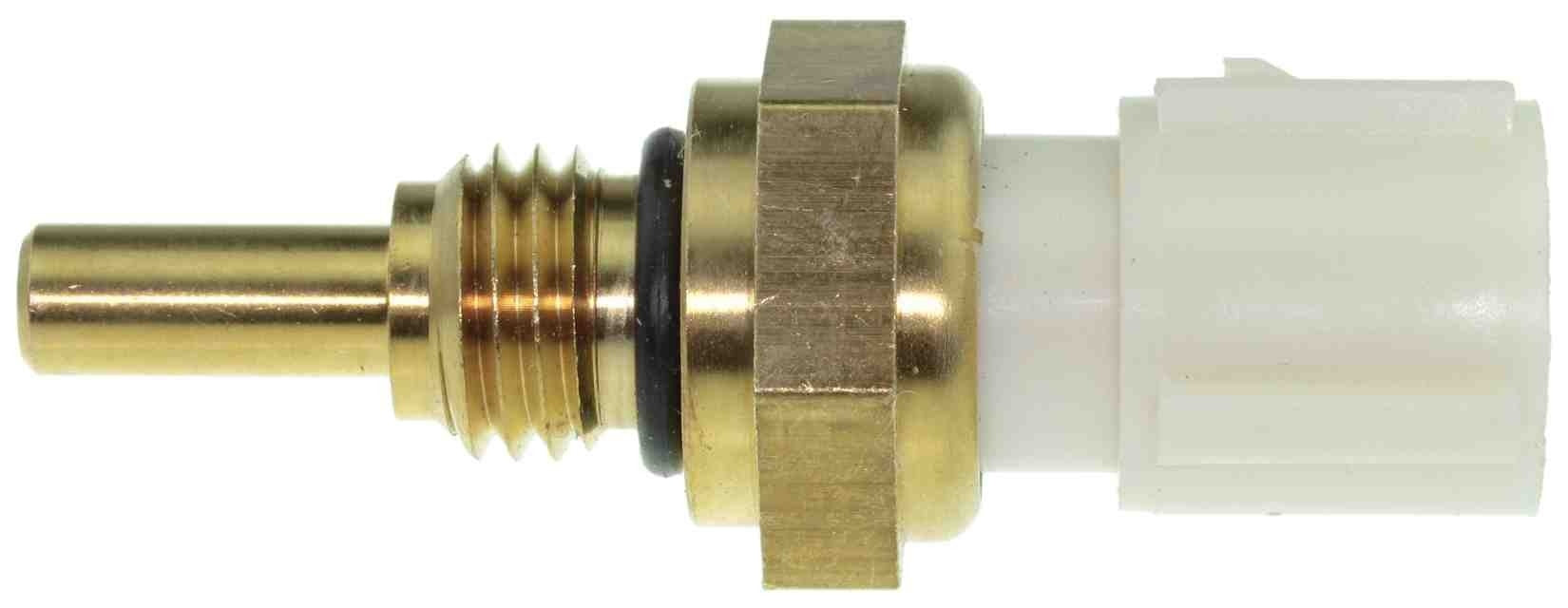

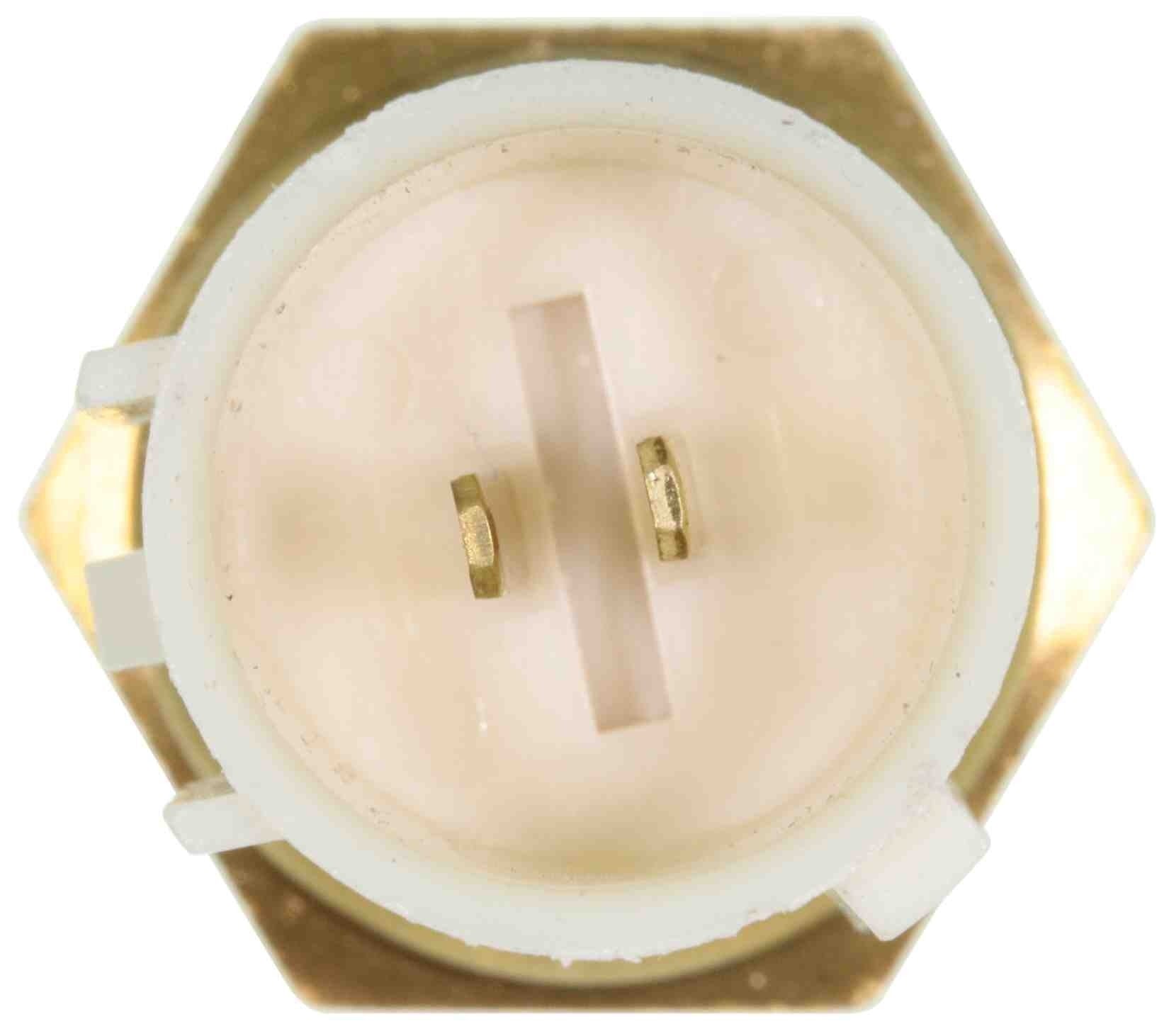

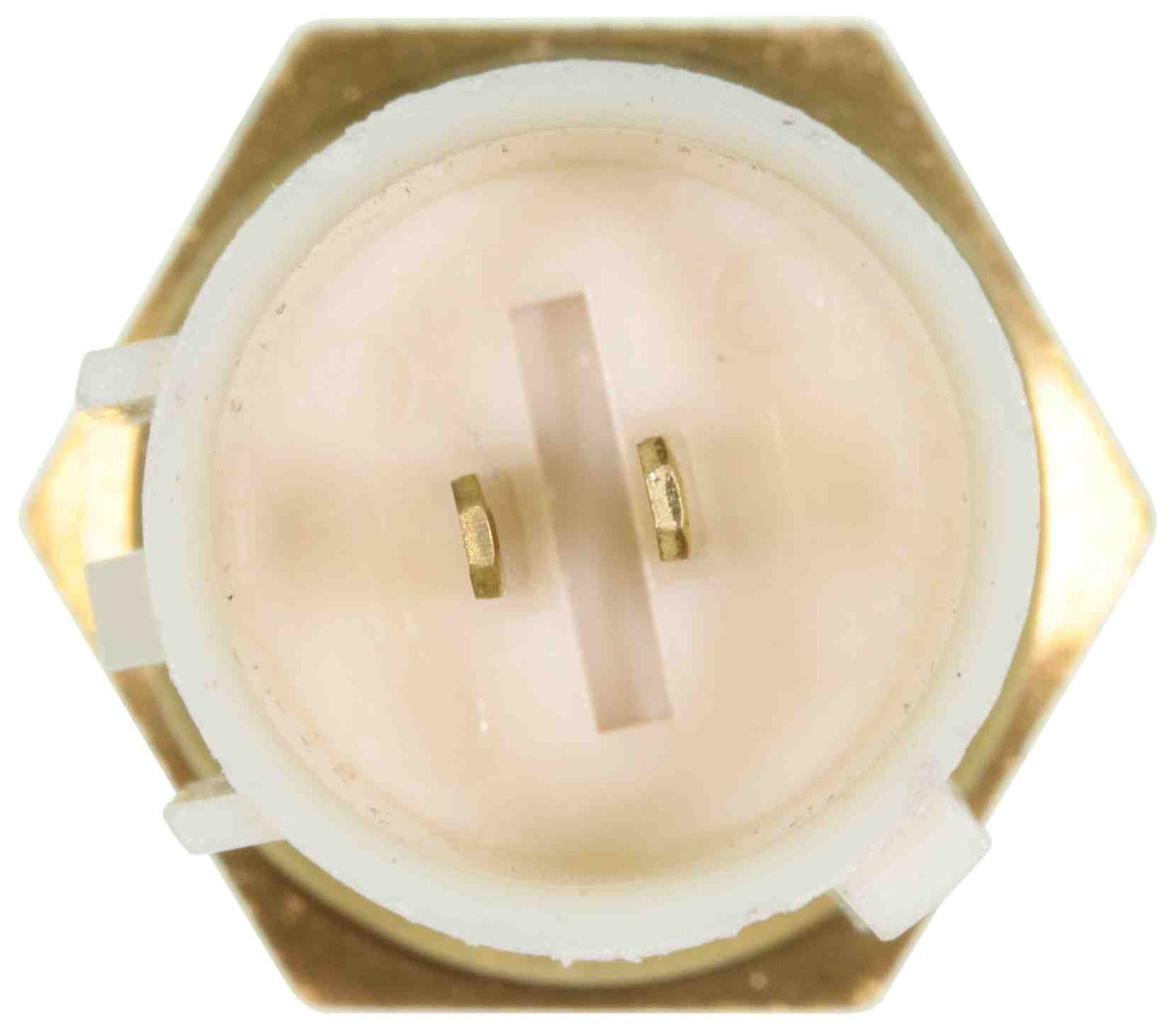

NTK Engine Coolant Temperature Sensor EF0069
Engine Coolant Temperature Sensor. (EF0069) by NTK
The Engine Coolant Temperature Sensor determines the exact temperature of the engine coolant by sending an analog signal to the ECM to sensure prpoer air/fuel ratio along with proper operation of the cooling fan(s) and temperature gauge. The Engine Coolant Temperature Sensor may be located on the cylinder head, engine block, thermostat housing or intake manifold. Reasons for replacement include: check engine light illumination, erratic or no temperature gauge operation, erratic or no cooling fan operation, and engine overheating.
FASTER RESPONSE TIME: Thermal conductive grease inside brass housing increases sensor response time
NGK EF0069Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997 - 2003 | Acura | CL | Base |
| 1997 - 2001 | Acura | CL | Premium |
| 2001 - 2003 | Acura | CL | Type-S |
| 1997 - 2000 | Acura | EL | Base |
| 1990 - 2001 | Acura | Integra | GS |
| 1992 - 2001 | Acura | Integra | GS-R |
| 1988 - 2001 | Acura | Integra | LS |
| 1988 | Acura | Integra | LS Special Edition |
| 1988 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1991 - 1993 | Acura | Legend | Base |
| 1994 - 1995 | Acura | Legend | GS |
| 1991 - 1995 | Acura | Legend | LS, L |
| 1995 | Acura | Legend | SE |
| 2001 - 2002 | Acura | MDX | Touring, Base |
| 1999 | Acura | NSX | Alex Zanardi Edition |
| 1991 - 2005 | Acura | NSX | Base |
| 1995 - 2003 | Acura | NSX | T |
| 1996 - 1998 | Acura | RL | Base |
| 1996 - 2004 | Acura | RL | Premium |
| 1998 | Acura | RL | SE |
| 1995 - 2003 | Acura | TL | Base |
| 1995 - 1998 | Acura | TL | Premium |
| 2002 - 2003 | Acura | TL | Type-S |
| 1992 - 1994 | Acura | Vigor | LS, GS |
| 1998 - 1999 | Honda | Accord | Coupe |
| 1988 - 1999 | Honda | Accord | DX, LX |
| 1990 - 1999 | Honda | Accord | EX |
| 1995 - 1999 | Honda | Accord | EX-R |
| 1988 - 1989 | Honda | Accord | EXI, S, LXi |
| 1989 | Honda | Accord | SEi |
| 1988 - 1991 | Honda | Civic | Base, RT 4WD |
| 1989 - 2000 | Honda | Civic | CX, Si |
| 1988 - 2000 | Honda | Civic | DX, LX |
| 1990 - 2000 | Honda | Civic | EX |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1988 | Honda | Civic | SE |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1988 - 1989 | Honda | Civic | Wagovan |
| 1993 - 1997 | Honda | Civic del Sol | Si, S |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 1998 - 2001 | Honda | CR-V | EX |
| 1997 - 2001 | Honda | CR-V | LX |
| 2000 - 2001 | Honda | CR-V | SE |
| 1989 - 1991 | Honda | CRX | Base |
| 1988 | Honda | CRX | DX |
| 1988 - 1991 | Honda | CRX | Si, HF |
| 2000 - 2006 | Honda | Insight | Base |
| 1999 - 2002 | Honda | Odyssey | Cargo |
| 2002 - 2004 | Honda | Odyssey | EX-L |
| 1995 - 2004 | Honda | Odyssey | LX, EX |
| 2004 | Honda | Pilot | EX-L |
| 2003 - 2004 | Honda | Pilot | LX, EX |
| 1988 - 1990 | Honda | Prelude | 2.0 S |
| 1988 - 1991 | Honda | Prelude | 2.0 Si |
| 1988 - 1989 | Honda | Prelude | 2.0 Si 4WS |
| 1992 - 1996 | Honda | Prelude | S |
| 1991 - 1995 | Honda | Prelude | SE |
| 1990 - 1996 | Honda | Prelude | Si |
| 1990 - 1994 | Honda | Prelude | Si 4WS |
| 1990 - 1991 | Honda | Prelude | Si ALB |
| 1990 | Honda | Prelude | SR |
| 1997 - 2001 | Honda | Prelude | Type SH, Base |
| 1993 - 1996 | Honda | Prelude | VTEC |
| 2000 - 2009 | Honda | S2000 | Base |
| 2008 - 2009 | Honda | S2000 | CR |
| 1996 - 1999 | Isuzu | Oasis | S, LS |
NTK Engine Coolant Temperature Sensor EF0069
Sale price$18.65 USD
