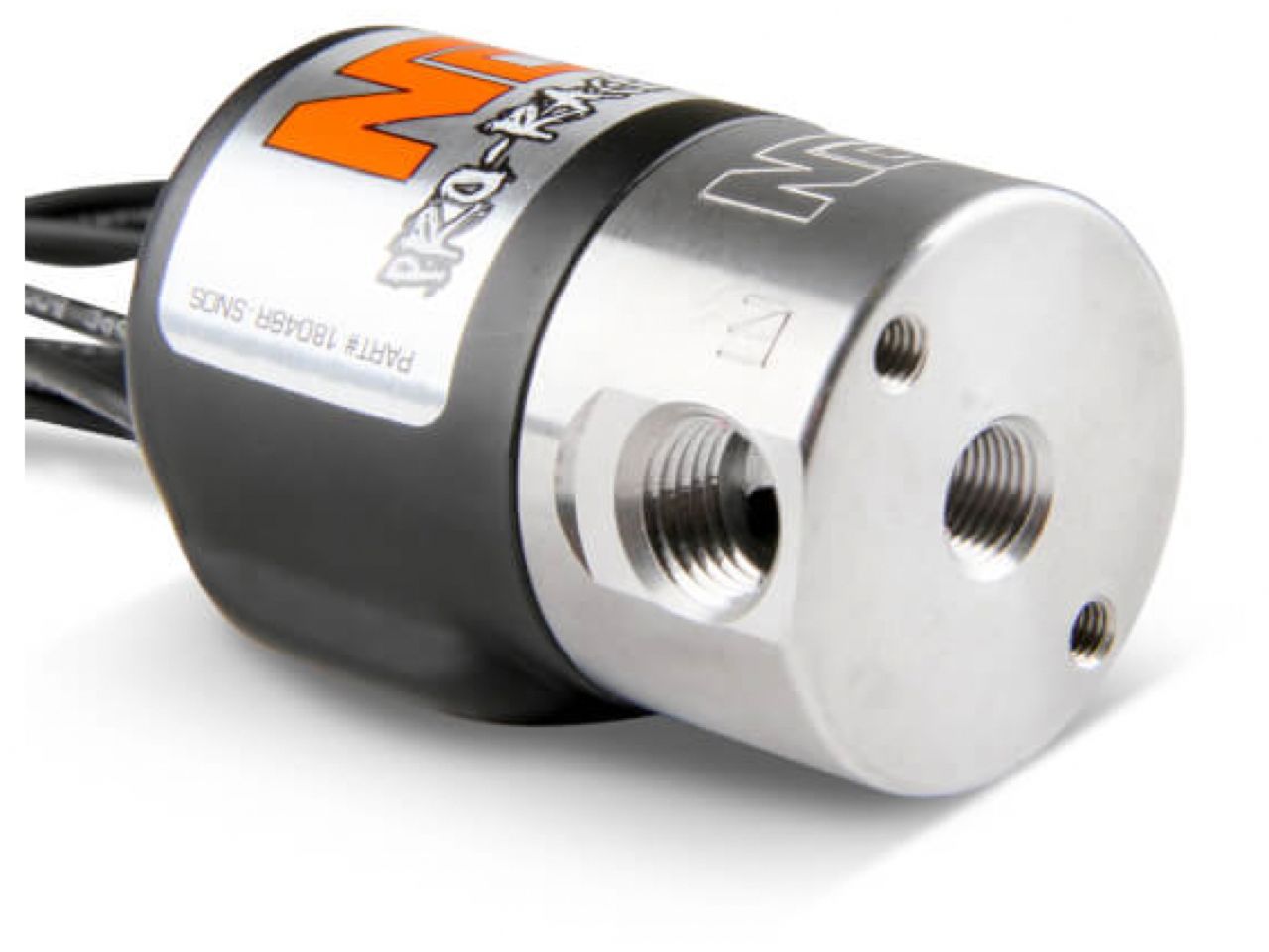

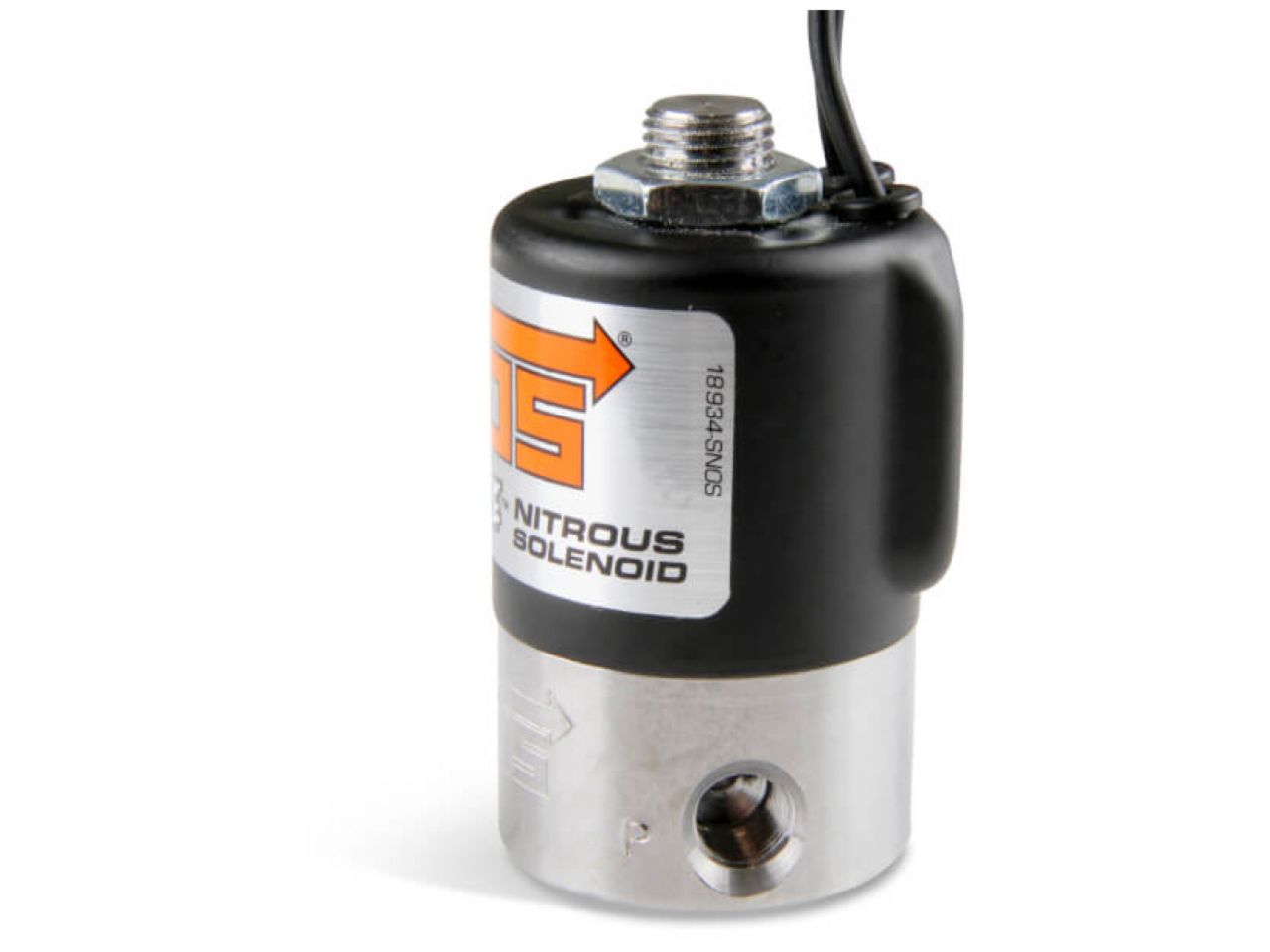

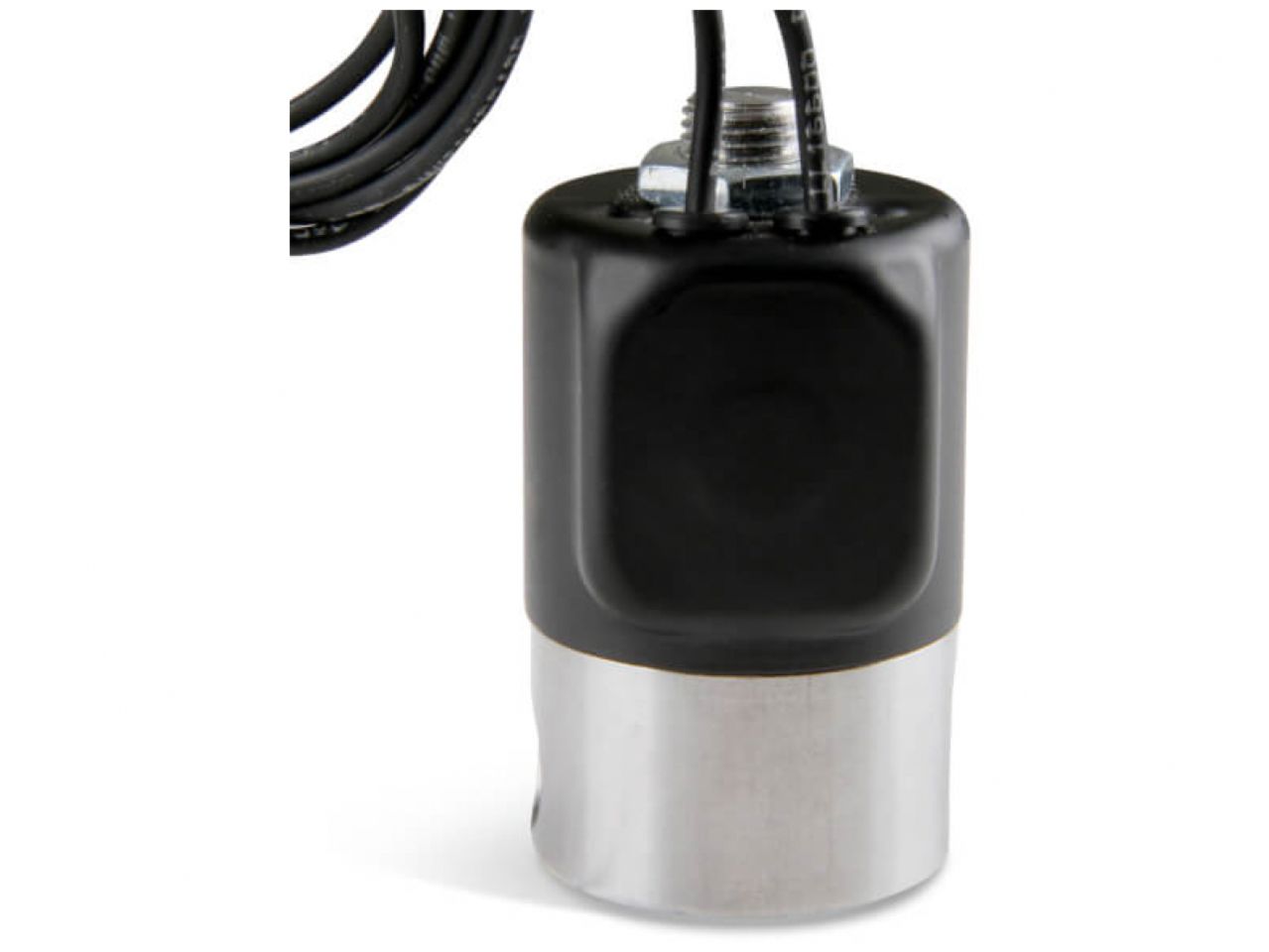

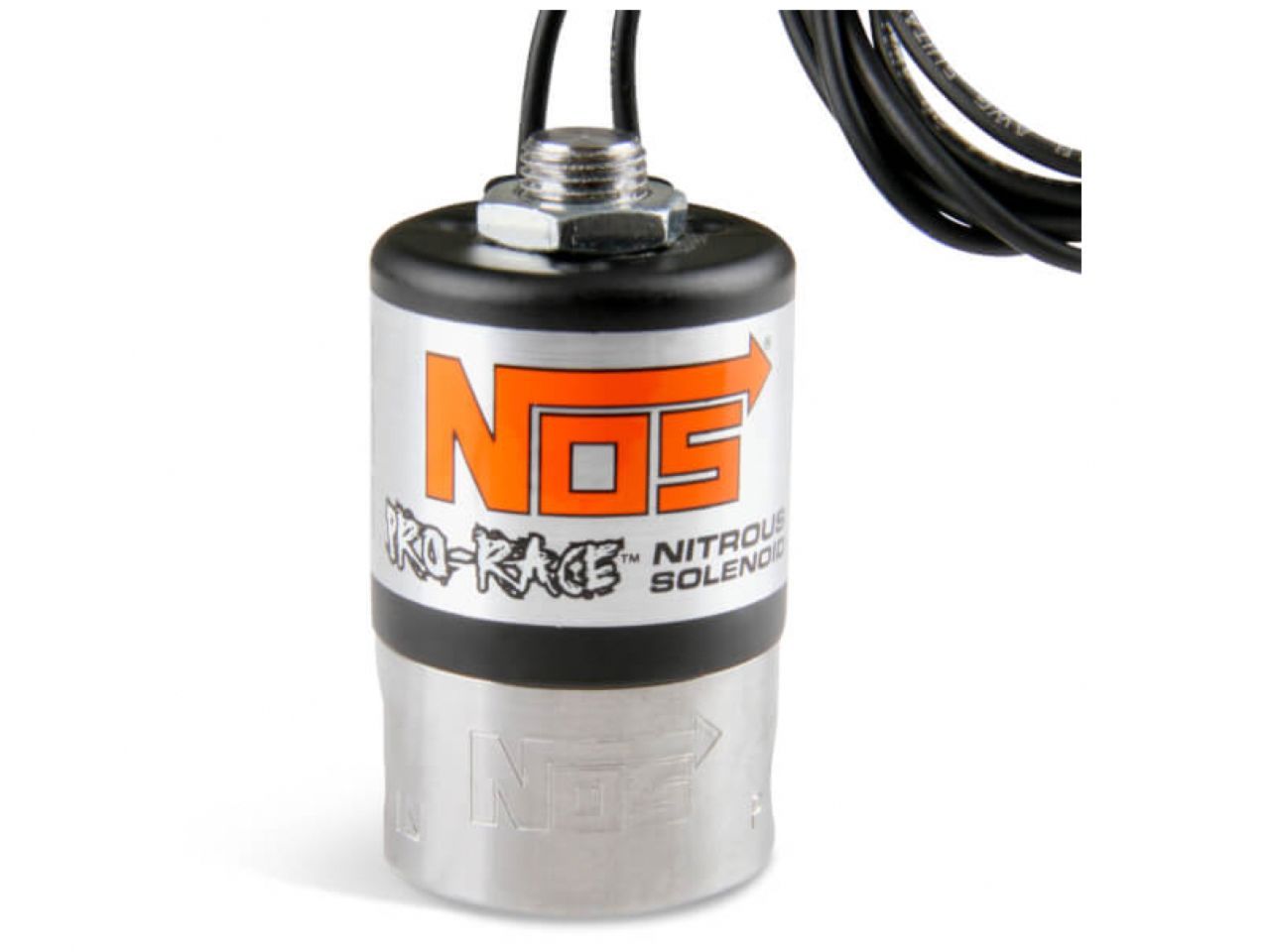

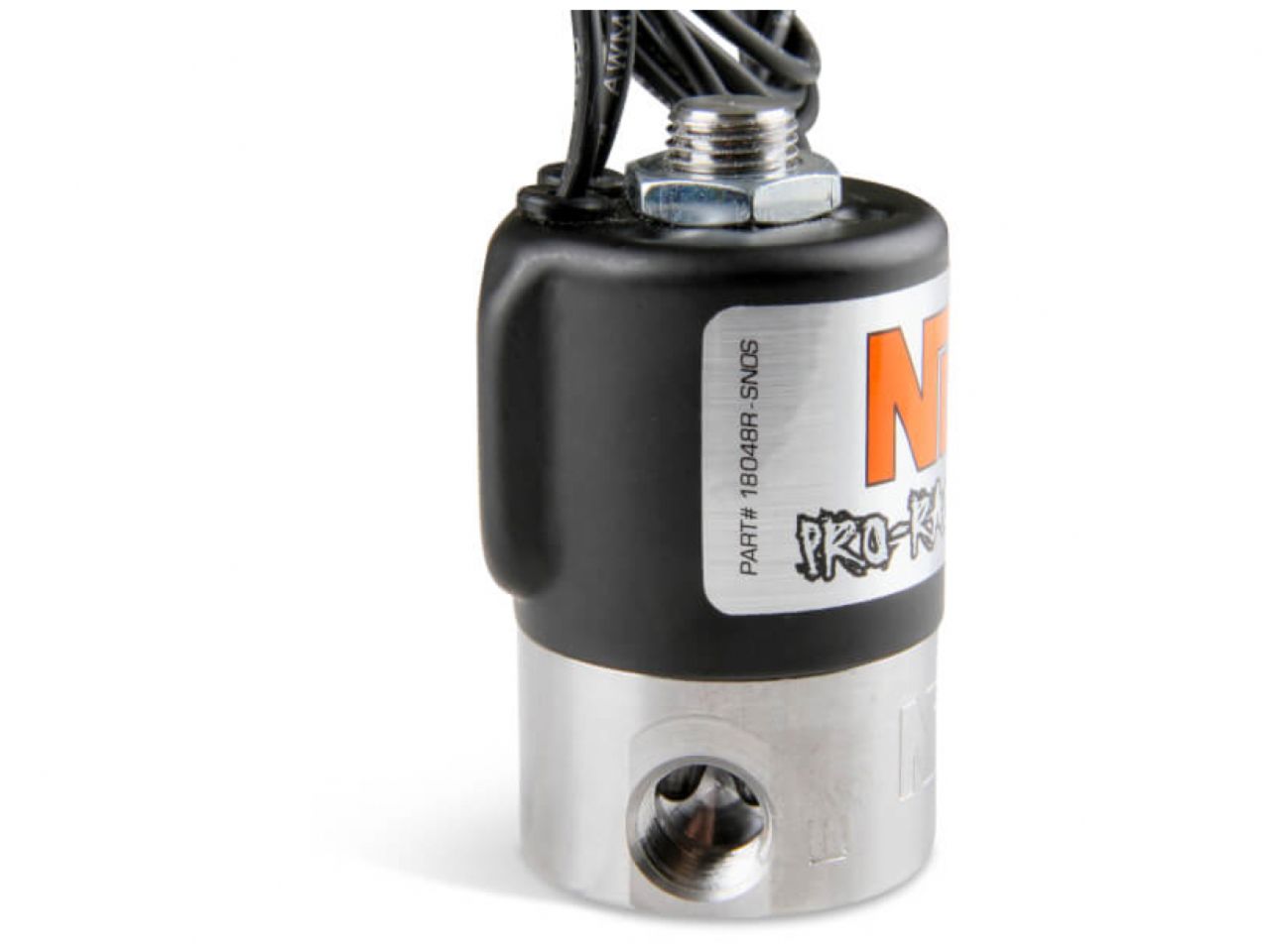

NOS Nitrous Solenoid - Black

Nitrous Solenoid - Black

NOS bottom exit Pro-Race nitrous and fuel solenoids gives you the flexibility for mounting options in various positions. They are available with black or red powder coated top housing. All of our solenoids feature large orifice sizes for great flow. Our nitrous solenoids have a PTFE plunger puck material for durability while our fuel solenoids have FKM rubber plunger pucks for durability and sealing. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Features:

• Inlet Size - 1/4" NPT

• Inlet Location - Side

• Outlet Size - 1/8" NPT

• Outlet Location - Bottom

• Orifice - 1/8" (0.125")

• Purge Port - 1/8" NPT

• Plunger - PTFE

• Current Draw @ 12VDC – 11.5 amps

• Supports up to 450 HP

• Black Powder Coated Cover

Specifications

Amp Draw: 11.5A

Bracket(s) Included: No

Color: Black

Emission Code: 4

Finish: Natural

Fittings Included: No

Inlet: Side

Inlet Attachment: Female Threads

Inlet Size: 1/4" NPT

Inlet Thread: 1/4" NPT

Material: Stainless Steel

Max Horsepower: 450

Orifice: 1/8" (0.125")

Outlet: Bottom

Outlet Attachment: Female Threads

Outlet Size: 1/8" NPT

Outlet Thread: 1/8" NPT

Plunger Material: PTFE

Product Line: Pro Race

Product Type: Nitrous Solenoid

Purge Port: 1/8" NPT

Solenoid Top Cover Color: Black
