NOS Plate Wet Nitrous System - GM
Plate Wet Nitrous System - GM

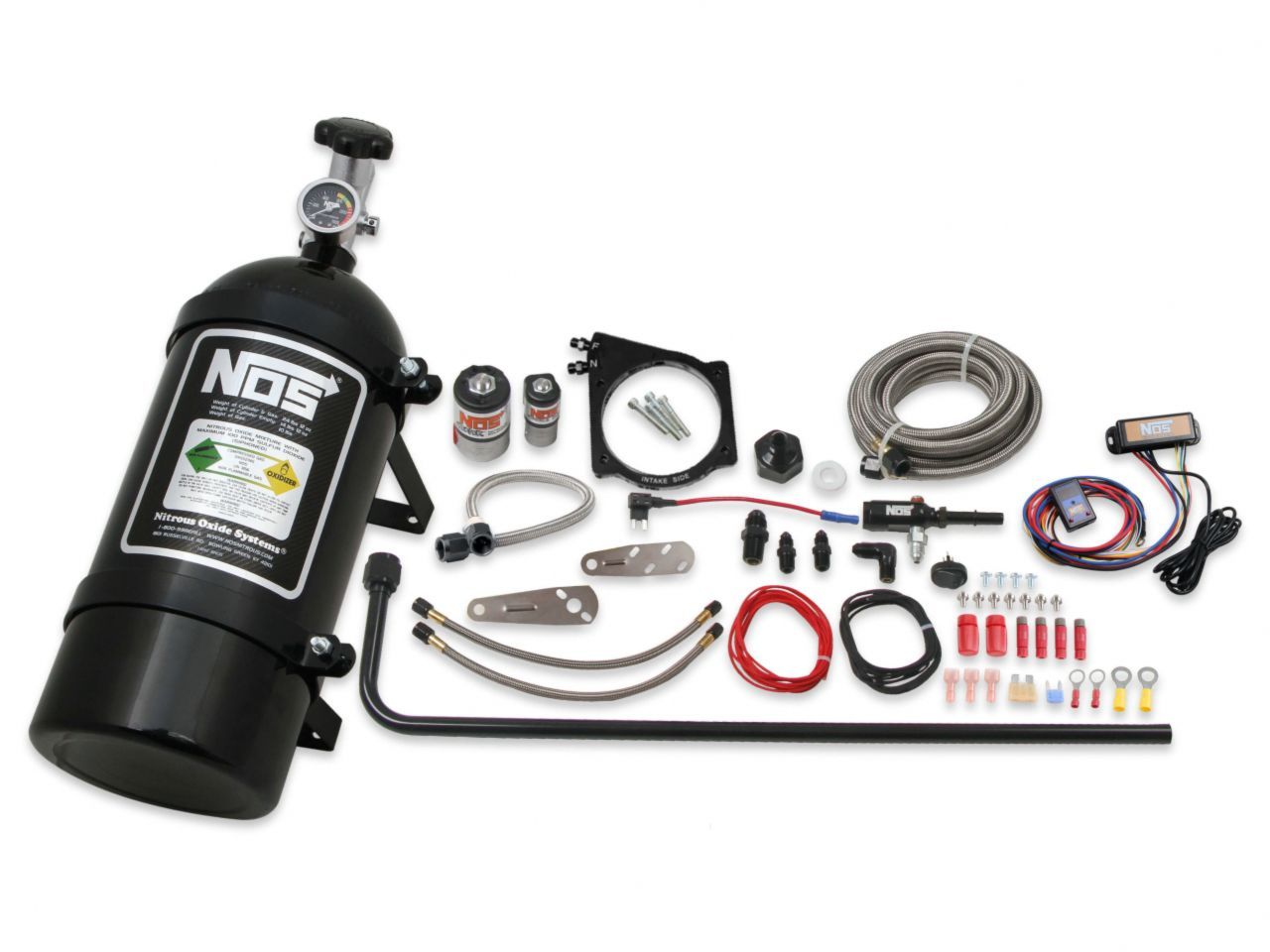

1997-2012 GM LS 102mm or 105mm 4-Bolt Drive-By-Wire Throttle Body. Black system is adjustable up to 250 HP. Includes 10lb bottle, 105mm plate, and all installation items.
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade.It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
Features:
• Fits GM LS engines with drive-by-wire style 102mm or 105mm throttle body
• Includes jetting for 100, 125, & 150 horsepower
• Ideal for use with the Holley Hi-Ram, Sniper EFI, or MSD Atomic LS Manifold
• This wet kit provides exceptionally smooth power delivery

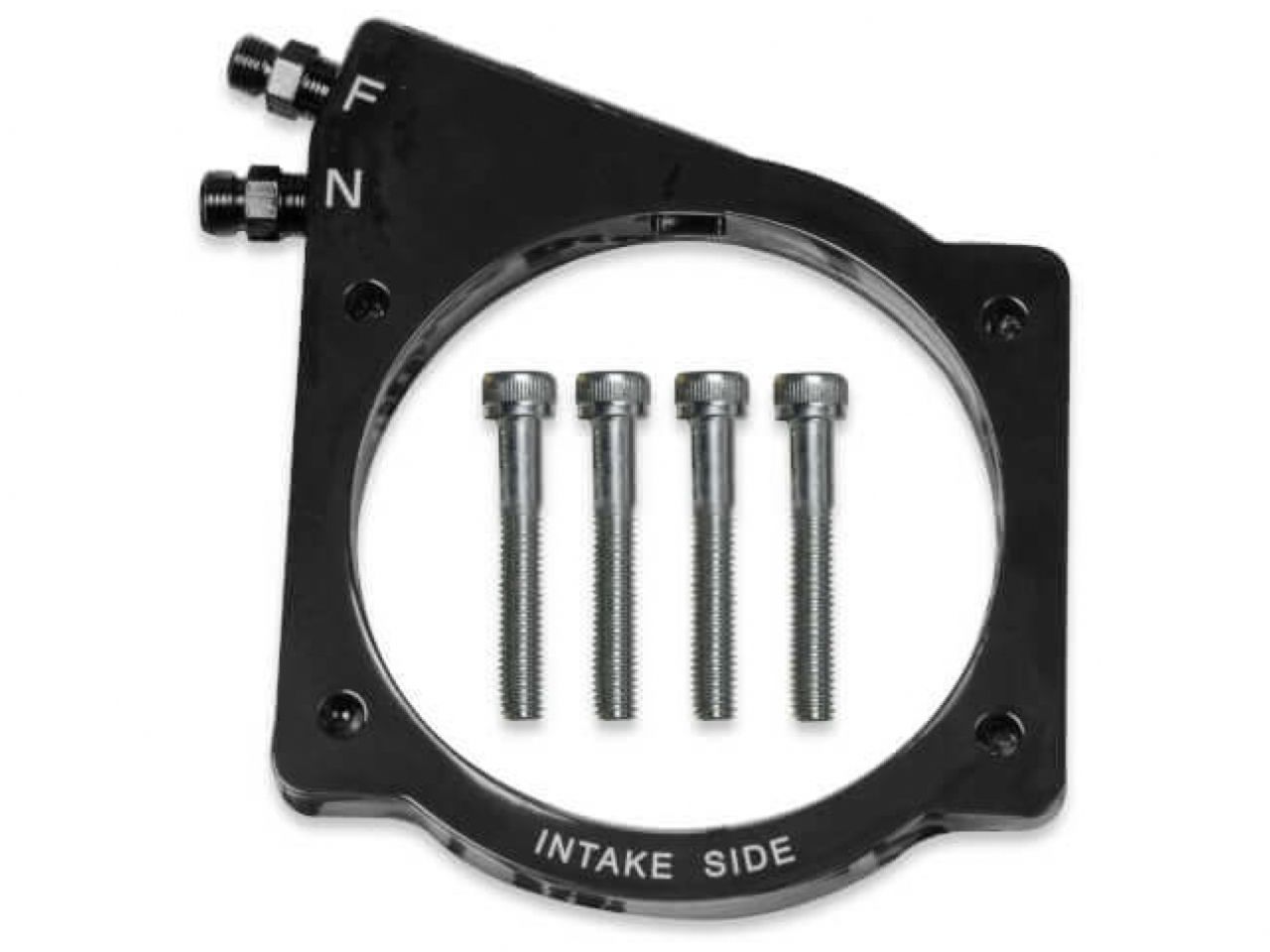

• Single 105mm ½ inch thick black plate between the throttle body and manifold
• Bottle is made from 6061-T6 Aluminum
• Supports up to 250 RWHP (jets purchased separately)
• Includes a 10 lb. black nitrous bottle with brackets
Specifications
Adjustable: Yes
Bottle Color: Black
Bottle Included: Yes
Bottle Material: 6061 T-6 Aluminum
Bottle Size: 10 lb

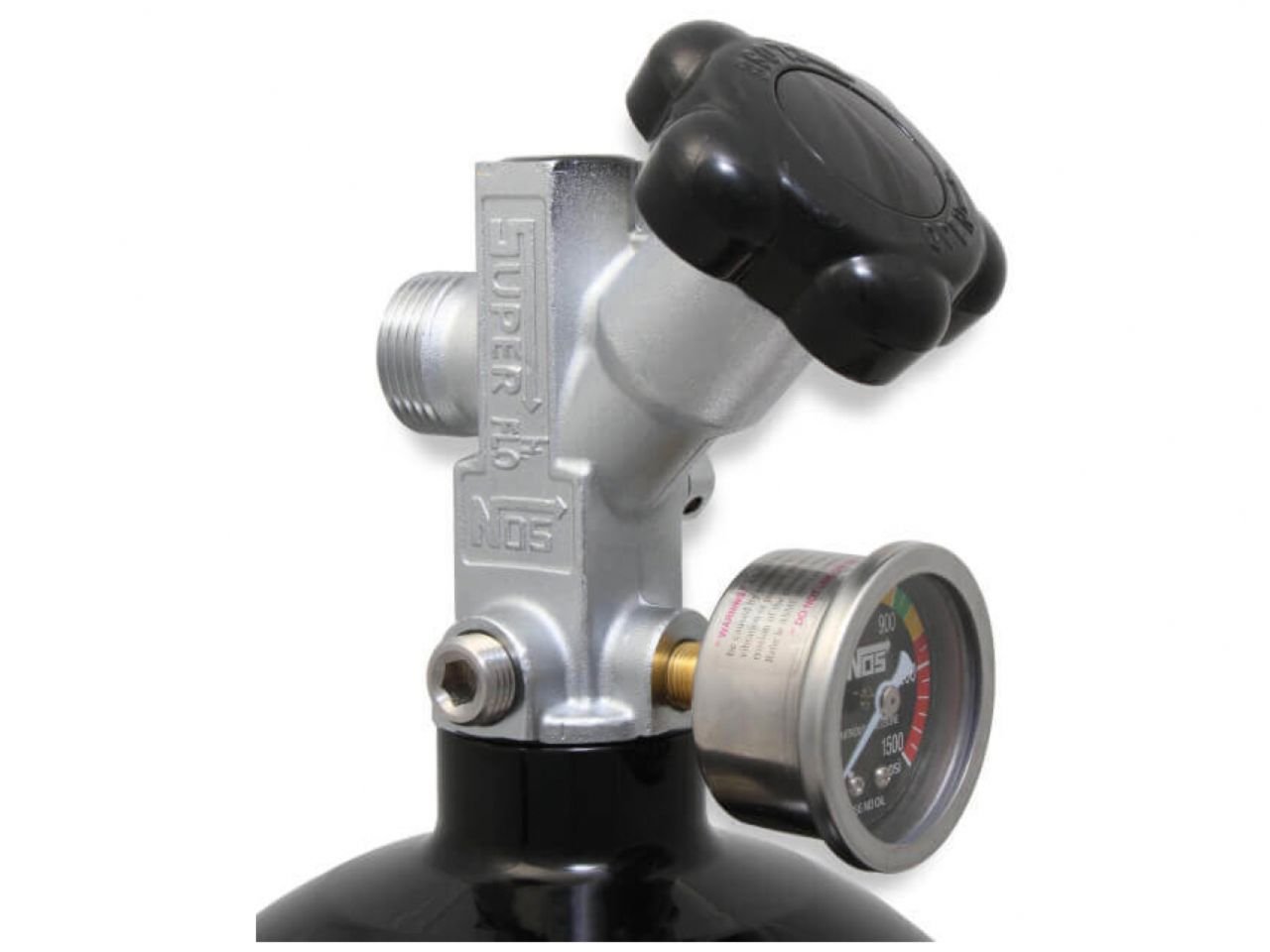

Bottle Valve: Super Hi-Flo
Bracket Material: Steel
Brackets Included: Yes
Color: Black
Delivery Style: EFI Spacer Plate
Emission Code: 3
Feed Line Size: 6AN

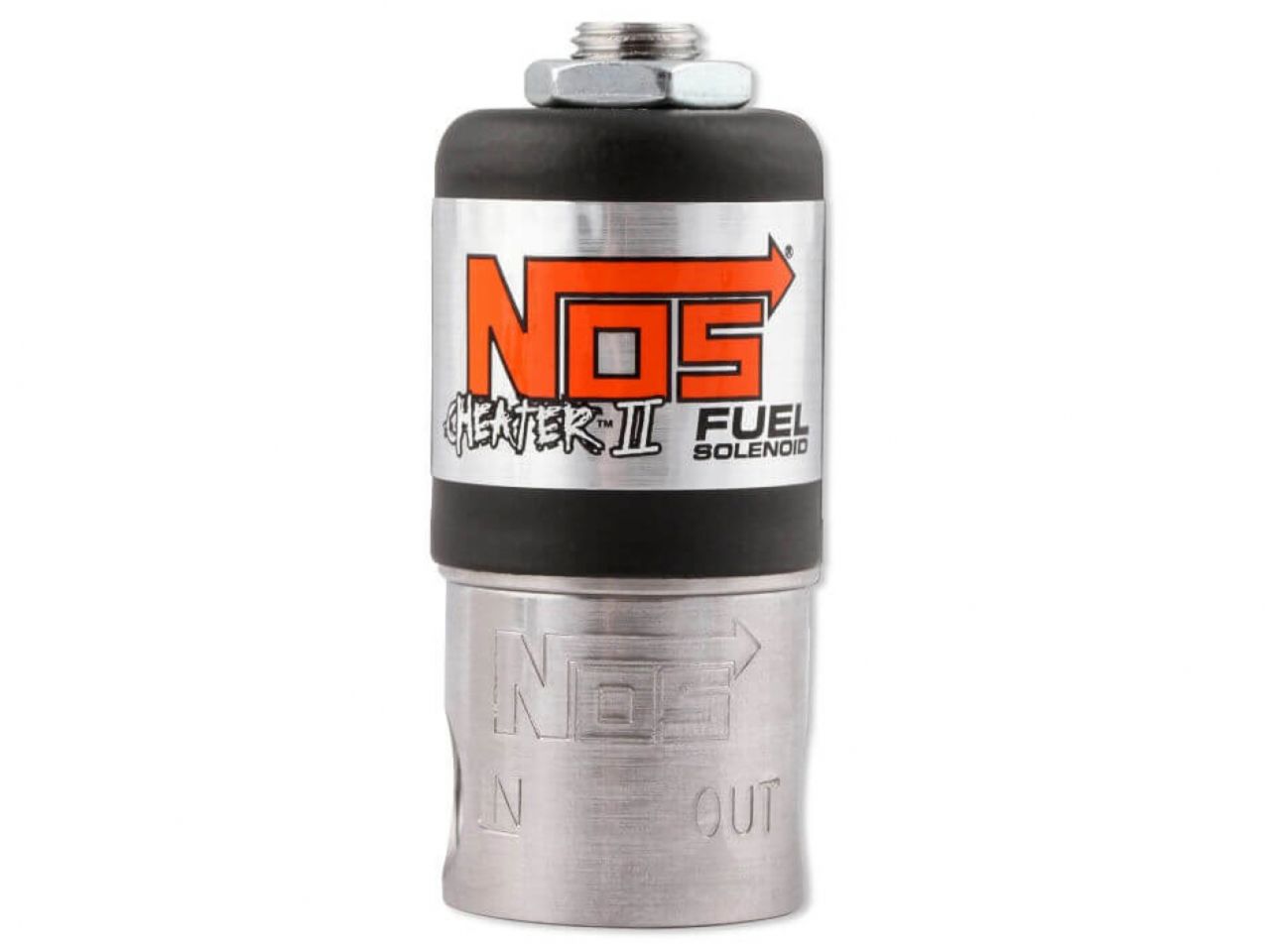

Fuel Solenoid: Cheater
Included Jetting Horsepower: 100, 125, 150
Jet Sizes Included: 100, 125, 150 hp
Jet Style: Flare
Material: 6061 T-6 Aluminum
Max Horsepower: 250
Nitrous Bottle Capacity: 10 lbs

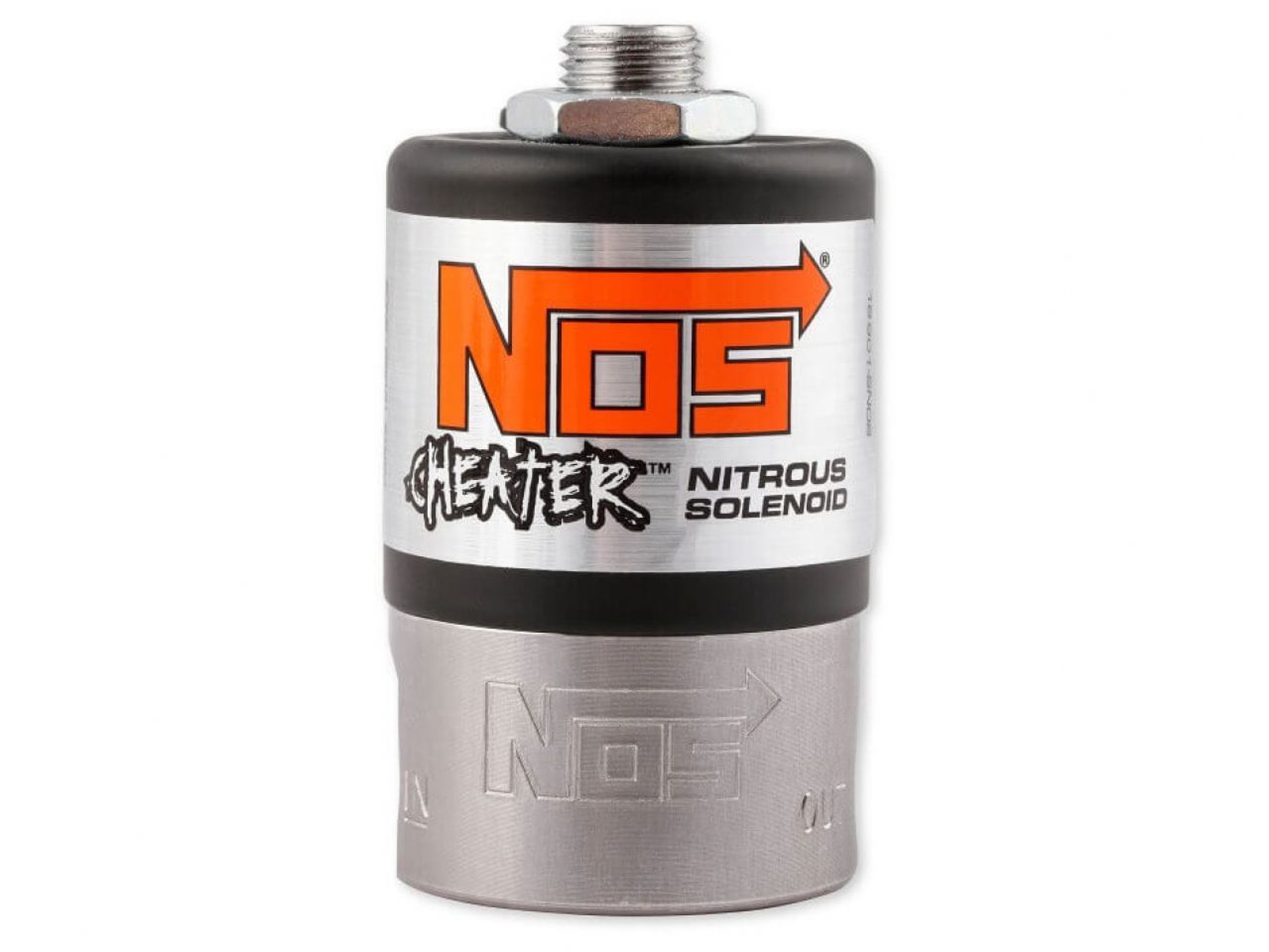

Nitrous Solenoid: Cheater
Number of Solenoids: 2
Plate Bolt Pattern: 4 bolt
Plate Diameter: 105 mm
Plate Flange: GM 4-Bolt LS
Plate Height: 1/2 inch
Plate Included: Yes
Plate Thickness: 1/2 inch
Product Type: Nitrous System
Solenoid Top Cover Color: Black
Style: Wet
System Style: Wet
