CATALOG NO.72 CAST ALUMINUM ELBOW 70DEG 30R 120MM - (12400072)
CATALOG NO.72 CAST ALUMINUM ELBOW 70DEG 30R 120MM - (12400072)
sku: 0K0N1 | mpn: 12400072
Regular price
$64.25
Regular price
$0.00
Sale price
$64.25
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Aluminum elbow (casting)
This is a pipe made by casting with bends and radiuses that cannot be bent with a bender. Used when producing original piping.

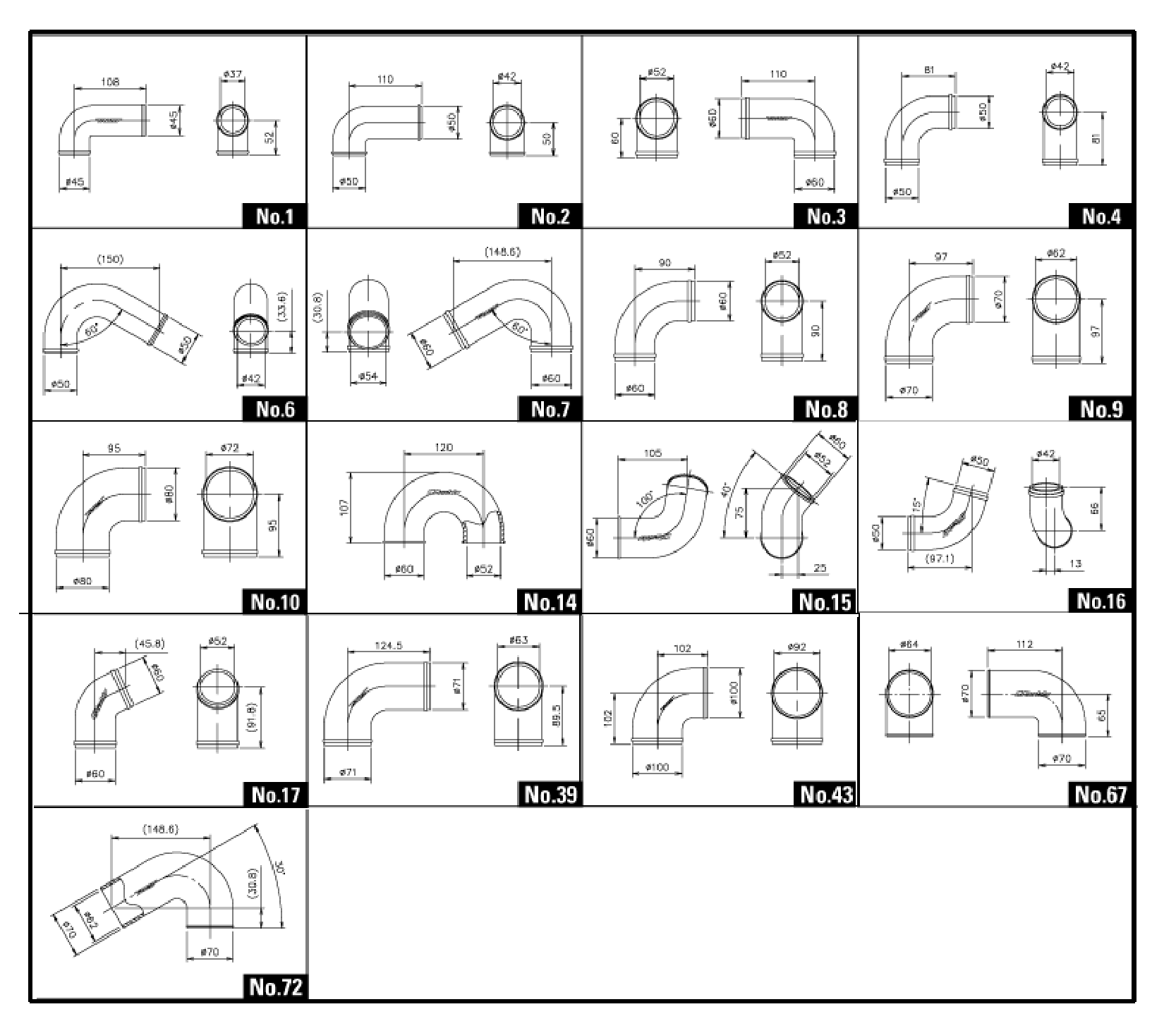

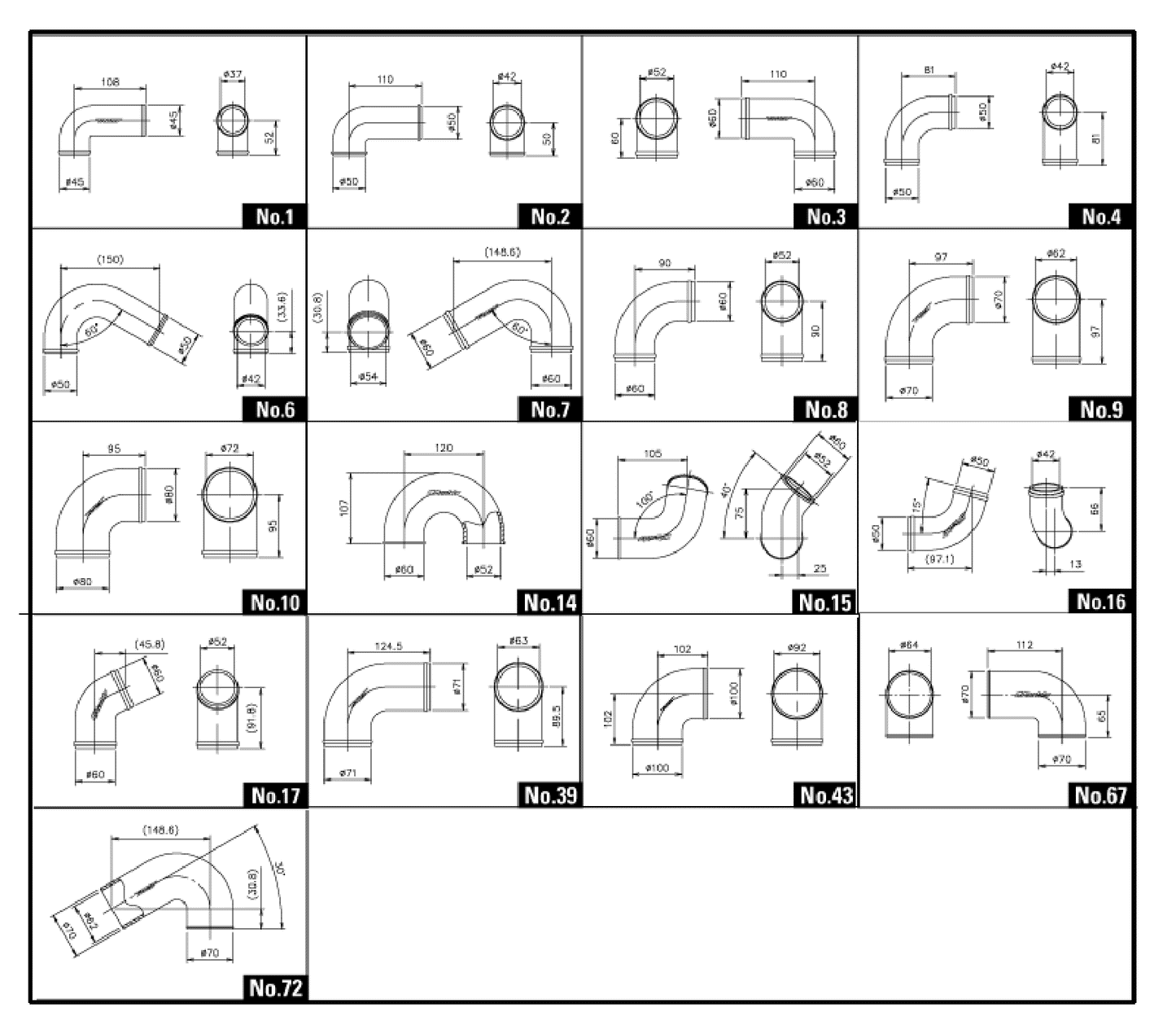

aluminum elbow price list
*The bending value is indicated by the inner radius.
| shape | angle | bending | Outer diameter | CODE | |||
|---|---|---|---|---|---|---|---|
| No.1 | 90° | 5R | 45φ | 12400001 | |||
| No.2 | 90° | 5R | 50φ | 12400002 | |||
| No.3 | 90° | 5R | 60φ | 12400003 | |||
| No.4 | 90° | 25R | 50φ | 12400004 | |||
| No.6 | 120° | 30R | 50φ | 12400006 | |||
| No.7 | 120° | 20R | 60φ | 12400007 | |||
| No.8 | 90° | 35R | 60φ | 12400008 | |||
| No.9 | 90° | 35R | 70φ | 12400009 | |||
| No.10 | 90° | 25R | 80φ | 12400010 | |||
| No.14 | 180° | 30R | 60φ | 12400014 | |||
| No.15 | 70° | compound R | 60φ | 12400015 | |||
| No.17 | 75° | 10R | 60φ | 12400017 | |||
| No.39 | 90° | 25R | 70φ | 12400039 | |||
| No.43 | 90° | 20R | 100φ | 12400043 | |||
| No.67 | 90° | 10R | 70φ | 12400067 | |||

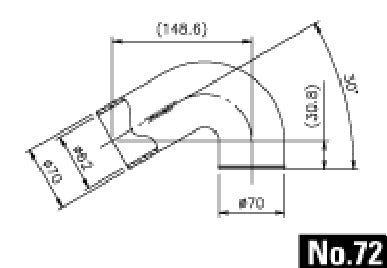

| No.72 | 120° | 15R | 70φ | 12400072 |
