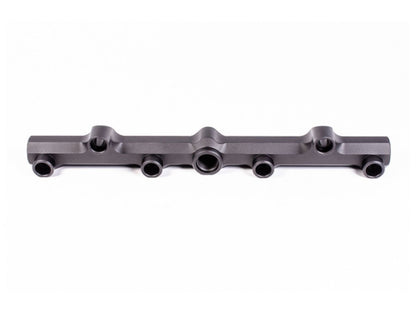

Radium Nissan KA24DE Top Feed Fuel Rail Conversion Kit
This Radium Engineering fuel rail is a direct bolt-on with all twin cam Nissan KA24DE engines. It features a large 0.69" internal diameter bore to suit even the most fuel hungry engines. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed allowing the use of high flow 14mm O-ring fuel injectors (not included). This kit is compatible with E85.

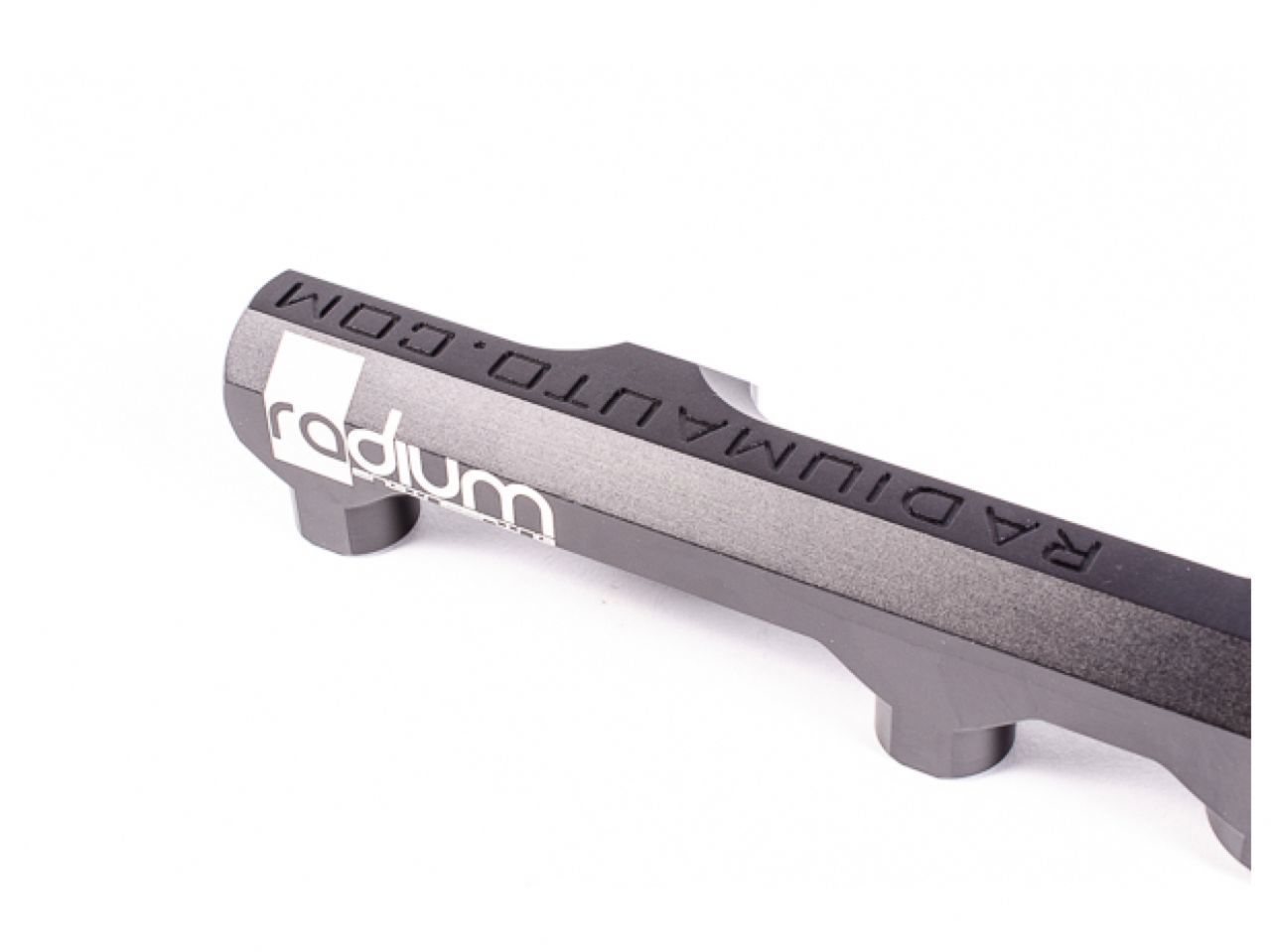

The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish.
What's Included

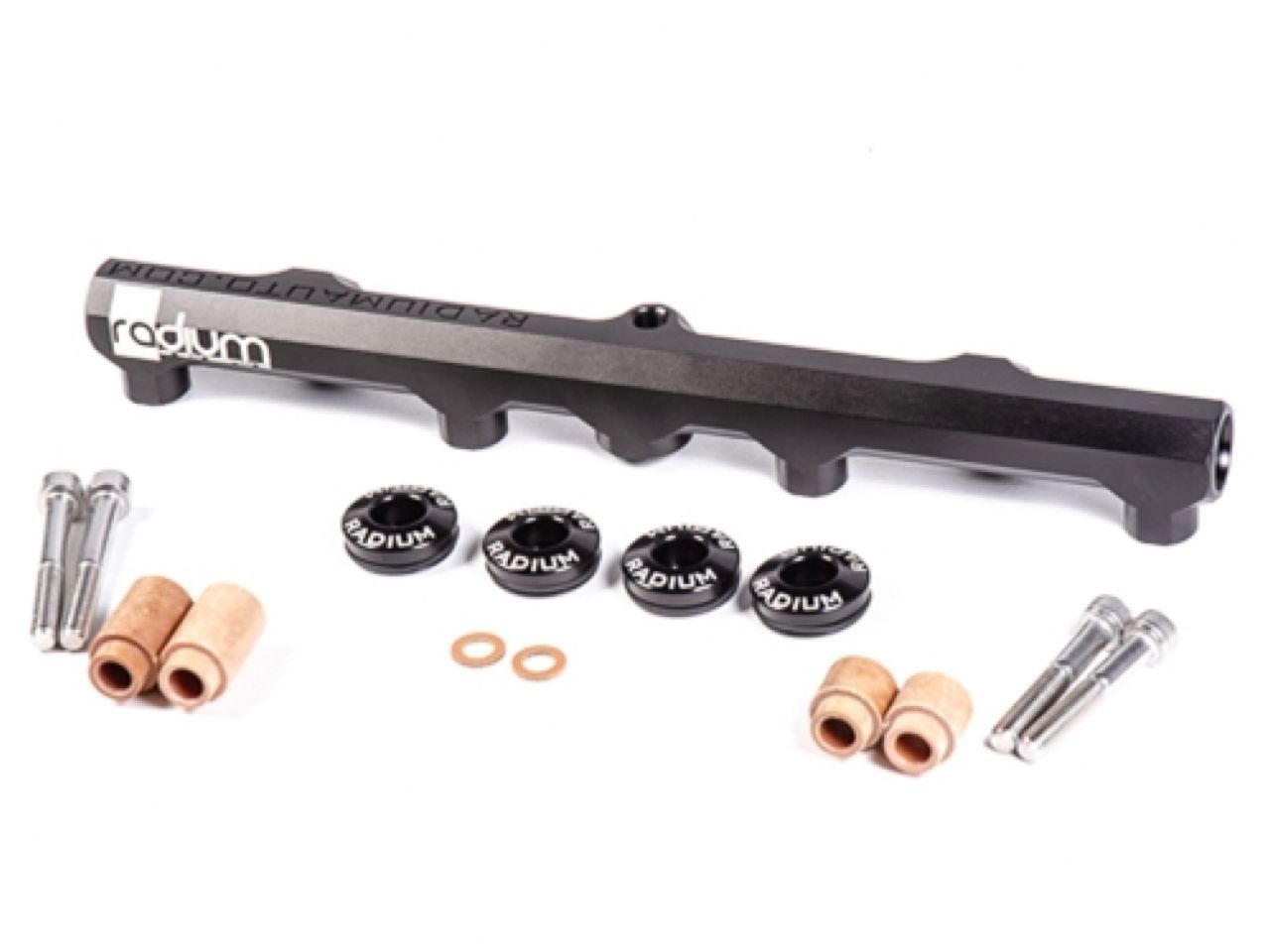

The basic kit 20-0457 includes everything shown in the picture below:
-Black Anodized Aluminum Fuel Rail
-Phenolic Mounting Bolt Spacers, Short (x2)
-Phenolic Mounting Bolt Spacers, Tall (x2)
-Phenolic Mounting Bolt Washers (x2)
-Radium 20-0160, 30mm Injector Seats (x4)
-Stainless Steel Mounting Bolts, Short (x2)
-Stainless Steel Mounting Bolts, Tall (x2)
NOTE: This fuel rail does NOT come standard with fittings. Fittings can be purchased separately using the options above.
Fuel Injector Compatibility
The kit includes 2 sets of phenolic spacers (shown above in the kit contents) to suit multiple height injectors. The spacers are machined from phenolic material and offer excellent resistance to heat transfer.

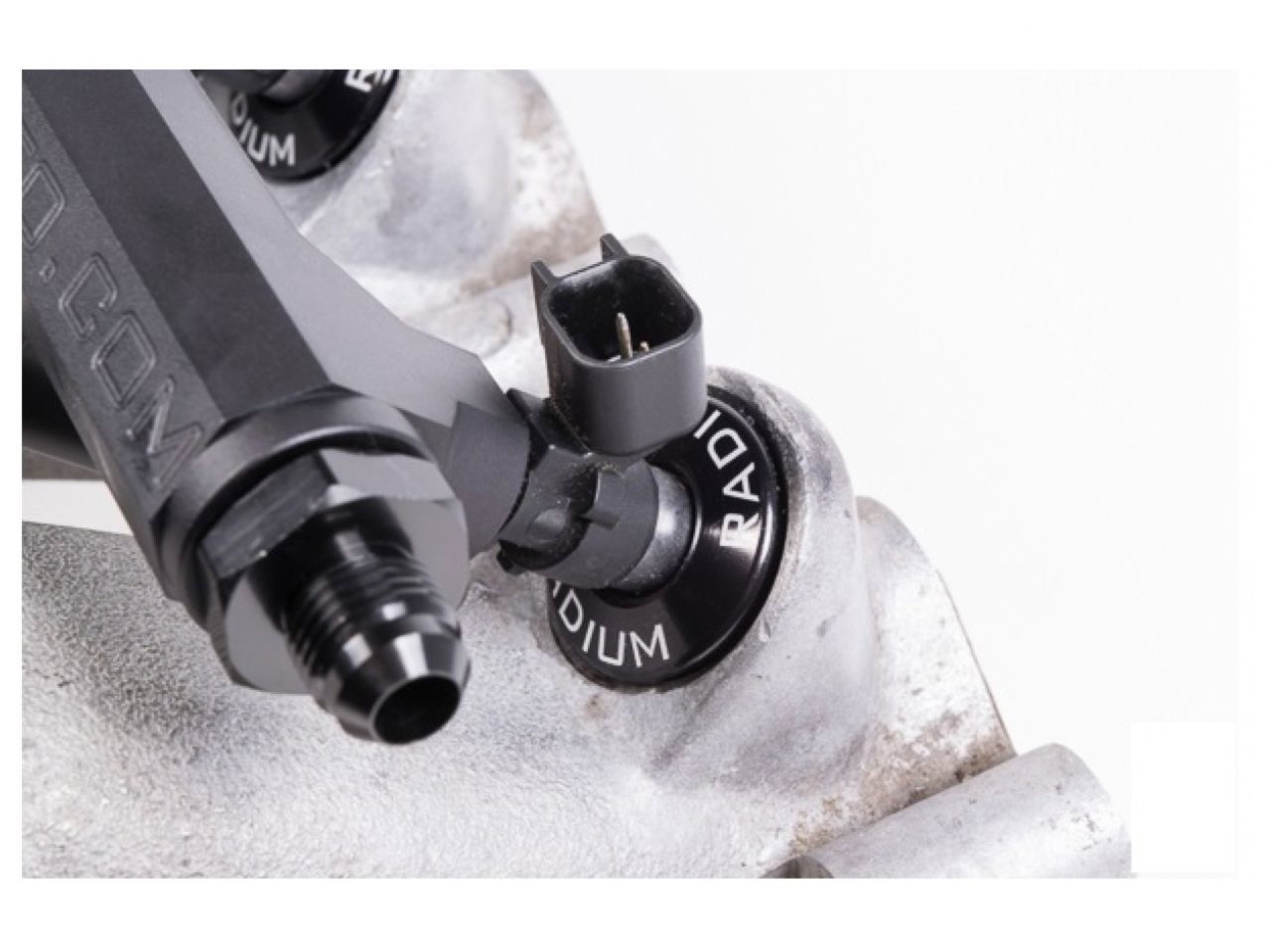

Use the tall spacers and longer mounting bolts to accomodate this size injector:
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail using the tall spacers:
Injector Dynamics ID725-48-14-14
Injector Dynamics ID850-48-14-14
Injector Dynamics ID1000-48-14-14
Injector Dynamics ID1050x-48-14-14
Injector Dynamics ID1300-48-14-14
Injector Dynamics ID1700-48-14-14
Injector Dynamics ID2000-48-14-14
Evolved Injection EI550-48-14-14
Evolved Injection EI650-48-14-14
Evolved Injection EI850-48-14-14
Evolved Injection EI1000-48-14-14
Evolved Injection EI1200-48-14-14
Evolved Injection EI1300-48-14-14
Evolved Injection EI2200-48-14-14
Deatschwerks 17U-00-0050-4
Deatschwerks 17U-00-0060-4
Deatschwerks 17U-00-0072-4
Deatschwerks 17U-00-0095-4
Deatschwerks 16S-12-2200-4
Use the shorter spacers and mounting bolts to accomodate this size injector:
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail using the short spacers:
Injector Dynamics ID850-34-14-14
Injector Dynamics ID1050x-34-14-14
Injector Dynamics ID1300-34-14-14
Injector Dynamics ID1700-34-14-14
Injector Dynamics ID2000-34-14-14
Evolved Injection DPI550-38-14-14
Evolved Injection DPI650-38-14-14
Evolved Injection DPI850-38-14-14
Evolved Injection DPI1000-38-14-14
Evolved Injection DPI1200-38-14-14
Evolved Injection DPI1300-38-14-14
Evolved Injection DPI2200-38-14-14
RC Engineering SM2-0310
RC Engineering SM2-0370
RC Engineering SM2-0450
Deatschwerks 16U-00-0042-4
Deatschwerks 16U-00-0050-4
Deatschwerks 16U-00-0065-4
Deatschwerks 16U-00-0090-4
Deatschwerks 16M-00-1500-4
Deatschwerks 16M-00-2200-4
NOTE: Fuel injectors are NOT included and must be purchased elsewhere. Use the optional check boxes above to select the appropriate adapters for your specific application.
Do I need a pulse damper (FPD)?
The opening and closing of the injectors creates pressure pulses in the fuel rail, which can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a pulse damper should be used (especially with high flow injectors). The internal diaphragm will absorb oscillation pulses and stabilize fuel pressure. The bottom center port is ideal for a damper. It is compatible with Radium FPD-R (P/N 20-0176) or FPD-XR (P/N 20-0177). Both dampers will work no matter what fuel rail mounting spacers are used. Shown below is an FPD-XR mounted in the bottom port of the fuel rail. CLICK HERE for more information.
Fuel Pressure Regulator Options
The fuel rail can be plumbed to a remote aftermarket pressure regulator using -AN hose and fittings. Or the options below can be used to mount the regulator directly to the rail. The front port is compatible with the Radium Direct Mount Regulator (DMR) as shown below. Note: Verify hood clearance is available before installing.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1991 - 1998 | Nissan | 240SX | LE |
1989 - 1998 | Nissan | 240SX | SE, Base |
1989 - 1990 | Nissan | 240SX | XE |
