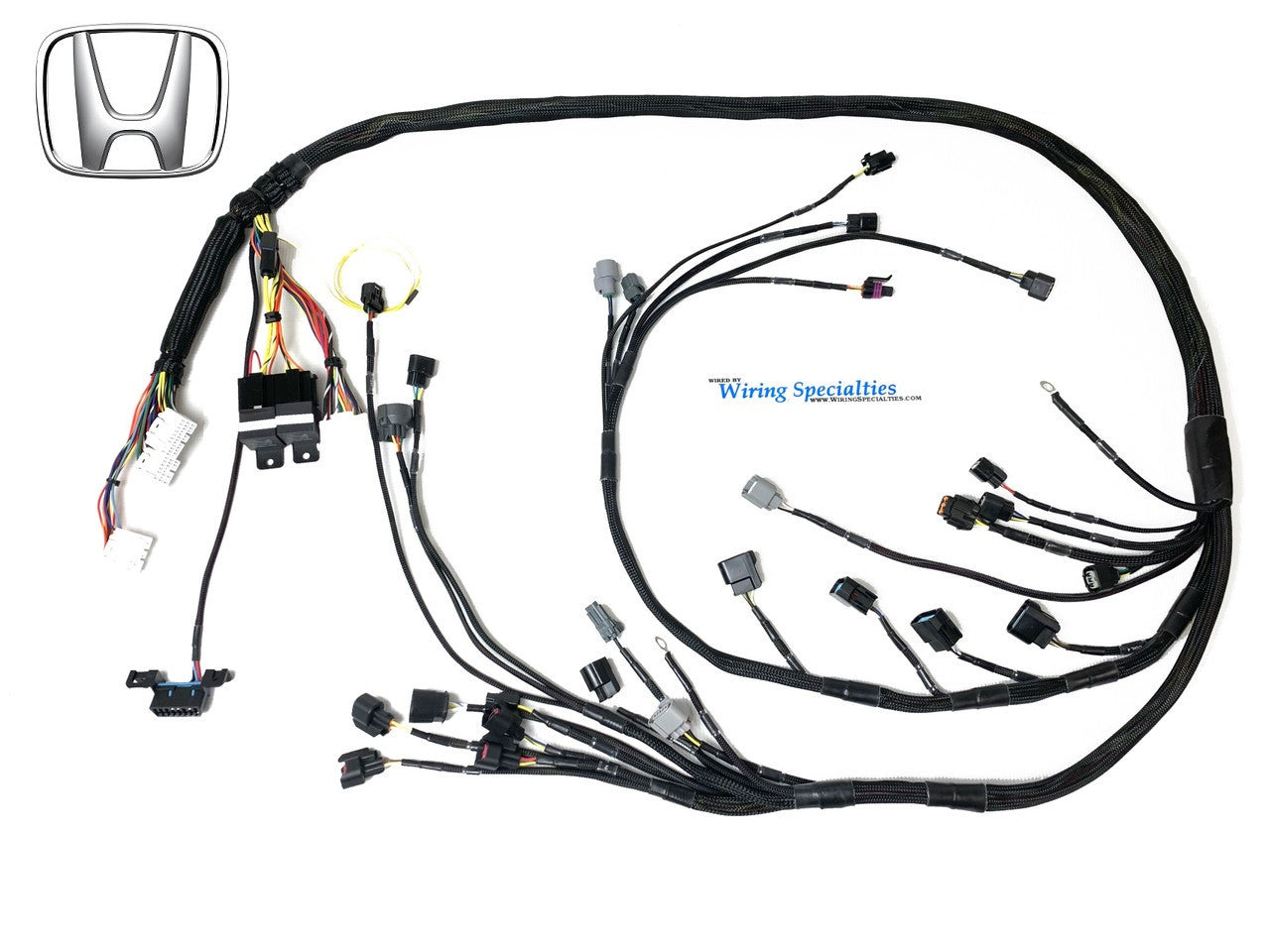

Wiring Specialties Honda K-Series 2.4L PRO Series Harness for LHD USDM Z33 350Z - WRS-PROK20K24-350Z

Our Honda K-Series PRO Swap harness is designed to make the 2.0L and 2.4L K-Series engines swap into a RWD platform easily – plug and play! This harness is specifically engineered for a USDM LHD Z33 350z (2003-2006) with the K-Series Honda/Acura K20 or K24 engine swap. It was developed in house on an actual K-Series engine to ensure a perfect fit to all engine connections. Finally

• fully functional tach and engine temp gauges, plus zero fault lights for traction control or stability control. Wiring Specialties has developed the CANBUS converter device to allow full gauge functionality, fan control and all of this in a plug and play package. No CORE needed, Plug and Play, startup guaranteed. This harness is for the OEM Honda ECU or Plug-N-Play Aftermarket ECUs listed in the 1st Option and uses a CABLE THROTTLE PEDAL by default unless there is an Option for a DBW Pedal.

Specifications

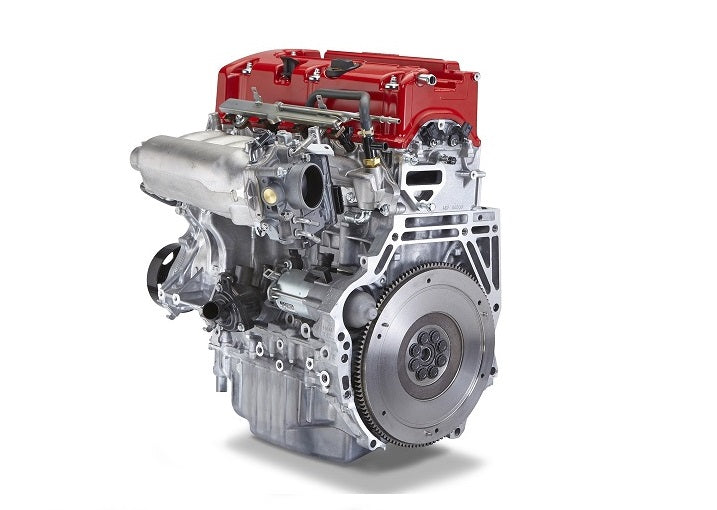

ENGINE: Honda / Acura K-Series 2.0L & 2.4L Engines

• 2001-2006 Honda Civic Type R (JDM)
• 2001-2006 Honda Integra Type R (JDM)
• 2002-2008 Honda Accord Euro R (JDM)
• 2007-2011 Honda Civic Type R (JDM)
• Any K24 from 2002-2014 Acura / Honda CR-V, Civic, Stream, Integra, RSX, Element, Accord CHASSIS: LHD USDM Z33 350Z 2003-2006
• Any USDM 350z model years 2003-2006
• Retains factory FANS, Speedometer, tachometer, engine temperature gauge, oil pressure gauge, alternator charge light, reverse lights and wipers.
• The Wiring Specialties harness provides proper 350z gauge cluster functionality for the engine swap. ECU output functions such as Tach, Engine coolant temp, CEL, Speedometer, fuel gauge and illumination are all supported by the proprietary CANbus controller, included in this kit.
• Fans functionality – the factory car has very capable fans and controllers. We suggest keeping them for the swap, when possible. The Wiring Specialties CANbus Controller retains the factory fan functionality, with pre-set engine temp turn ON and OFF points. We also provide an override for FULL ON fan function by engaging the DSC button. Sleek and clever!
• Plug and play features of this harness require the OEM 350z body harness, body control module and fuse boxes to be UNMODIFIED. The harness utilizes a number of relays and controllers present in the OEM 350z, so they need to remain on the chassis fuse box, in stock form.
• For proper Oil Pressure Gauge function, the 350z OEM oil pressure sending unit needs to be used. In most cases a relocation line needs to be used in order to use the Nissan sensor with the swap. Harness connection will be provided to reach the passenger side shock tower for sensor relocation (optional).
• Traction / Stability control is not functional with this swap. PRO-SERIES HARNESS TECHNICAL SPECS
• Plug and Play – simple and efficient
• NO CORE HARNESS or additional wiring required
• OEM wire colors used, where applicable
• Fireproof fiberglass sleeving used in high-temp sections near the manifold & turbo (-40°C/-40°F to +450°C/+845°F operating temperature)
• Point-to-Point continuity tested on every wire

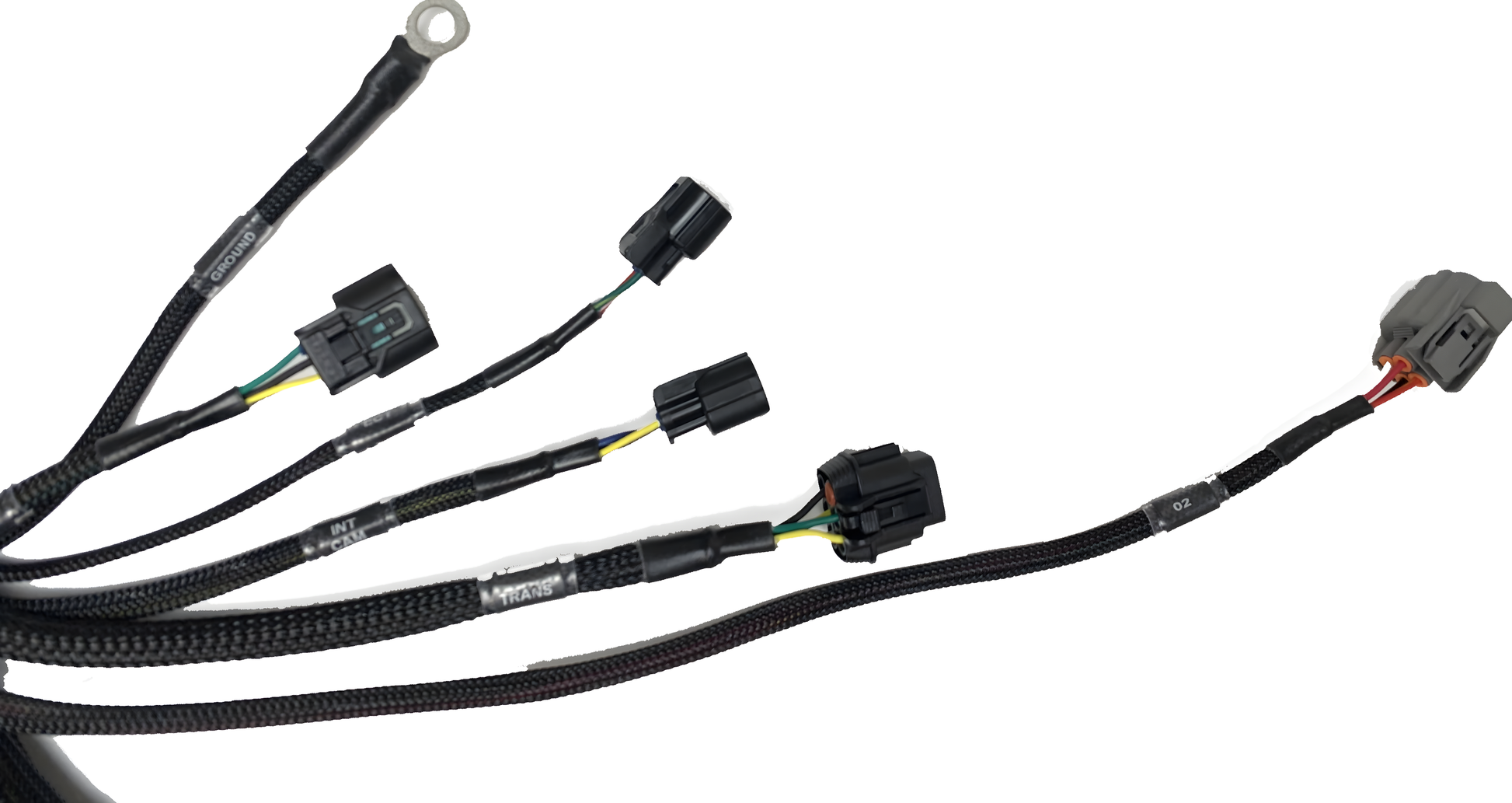

• Constructed using exact OEM connectors and seals
• Made with high temp TXL wire with adhesive shrink tubing (-40°C/-40°F to +125°C/+257°F operating temperature)
• Wrapped in lightweight nylon loom (-94°C/-137°F to +125°C/+257°F operating temperature)
• Includes a charge harness and improved grounds
• Fully tested after production for an easy plug-and-play installation PRO-SERIES HARNESS INCLUDES

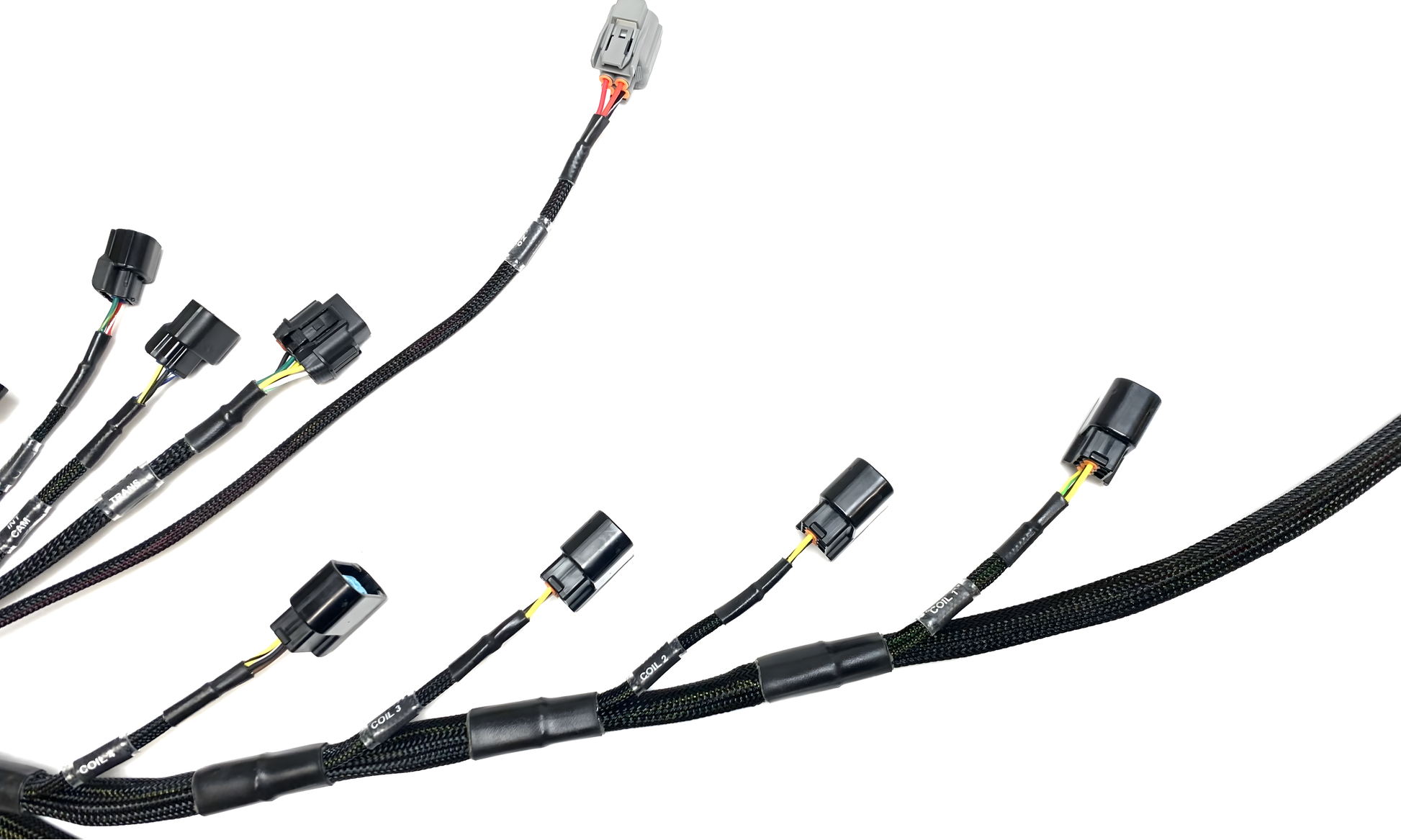

• Main Engine and Transmission one-piece tucked harness
• Alternator charge cable
• Knock sensor connector
• MAFS connector (OEM or Upgraded)
• TPS Connector
• 4x Injector connections
• CAM sensor connector
• OEM Oxygen sensor connector
• Ground ring terminal
• Idle control/fast idle connectors
• Engine coolant sensor and gauge coolant temp switch connectors
• Reverse sensor connector
• Speed sensor connector (Both S13 and S14 connectors are supplied)
• Alternator connector
• Starter signal connector
• OEM oil pressure 1-pin connector (only 1-pin version supplied)

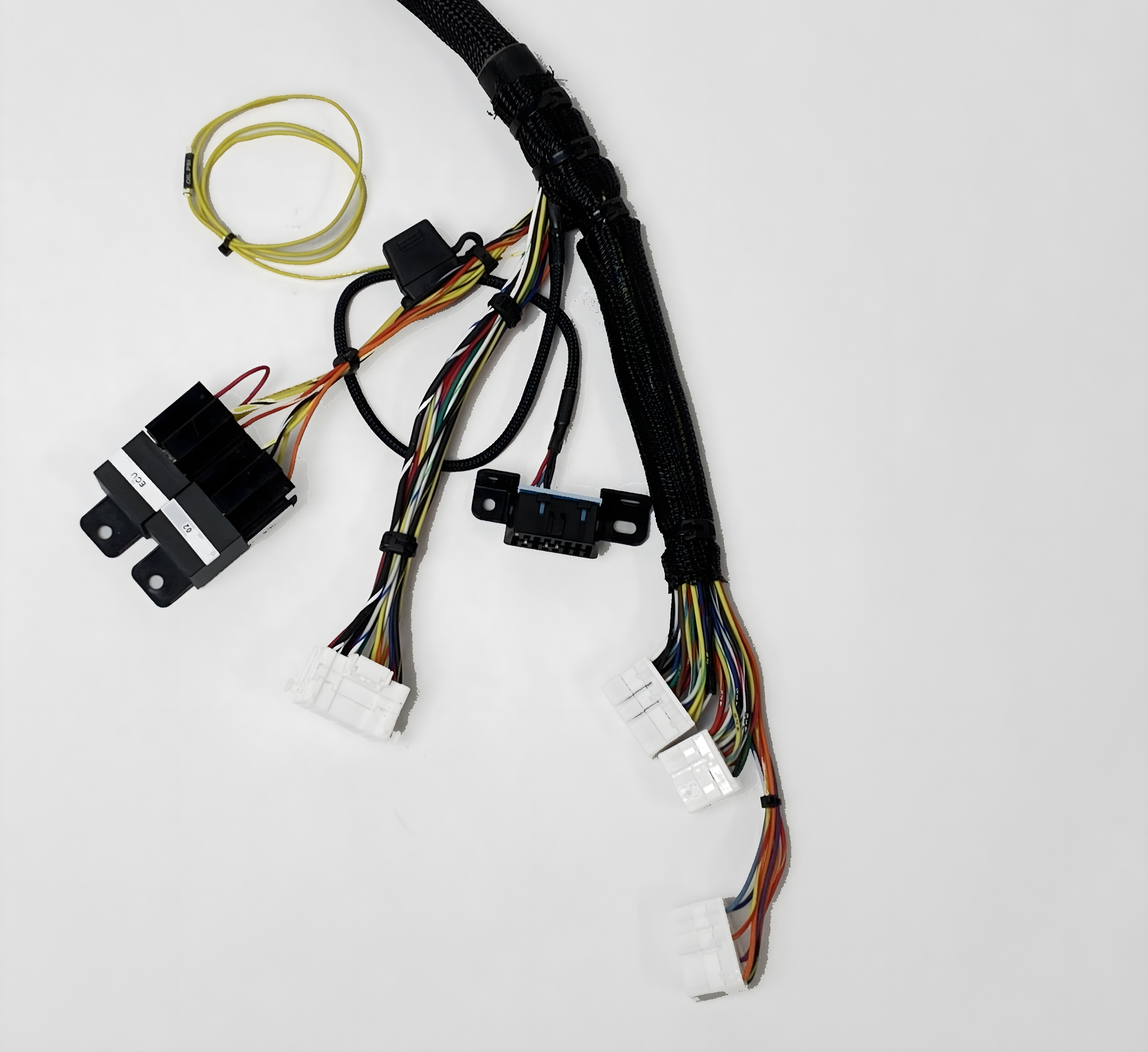

• Dash and fuse box connections through the Interface harness
• Printable install instructions with pictures
• Turn Key ENGINE START Guarantee
• Tech support for our customers 7 days a week FAQ & OTHER DETAILS
• Alternator Charge Cable
• This item ties the starter/battery directly to the Alternator output, which allows the improved power routing on our harness to eliminate the wire running from the alternator to the fusebox and/or battery while still charging the battery normally.
• ECU Patch Harness
• This optional item eliminates the need to cut into your engine harness for accessories. Use the length of wire provided between the wiring harness plug and the ECU itself to install accessories such as air-fuel meters & controllers, electric boost controllers, rev/speed meters and more.
• Grounding Kit
• Our Kit ties a number if engine components to the body of the car and ensures that you will not have issues resulting from poor grounds. The Grounding Kit utilizes Ultra High temp fiberglass sleeving to allow installation under or around exhaust components. Very flexible mounting options allow you to connect the block, head, battery tray, alternator case and chassis to completely eliminate all grounding issues.
• Speedo / Tach Signal Conditioning
• The Dakota Digital SGI-5 unit for Speed and the SGI-8 unit for Tach can 'condition' the signal to compensate for cross-platform swaps and/or changes to the number of cylinders. If the Option exists to ADD either unit on the harness page for your swap, then you need them for proper speedo & tach operation. Please note that some transmissions (350z, BMW ZF and S15 Silvia for example) do not have a speed sensor and will require a non-harness based solution like a GPS speedo. Most Nissan to Nissan swaps can simply adjust the tachometer to compens
