Description:

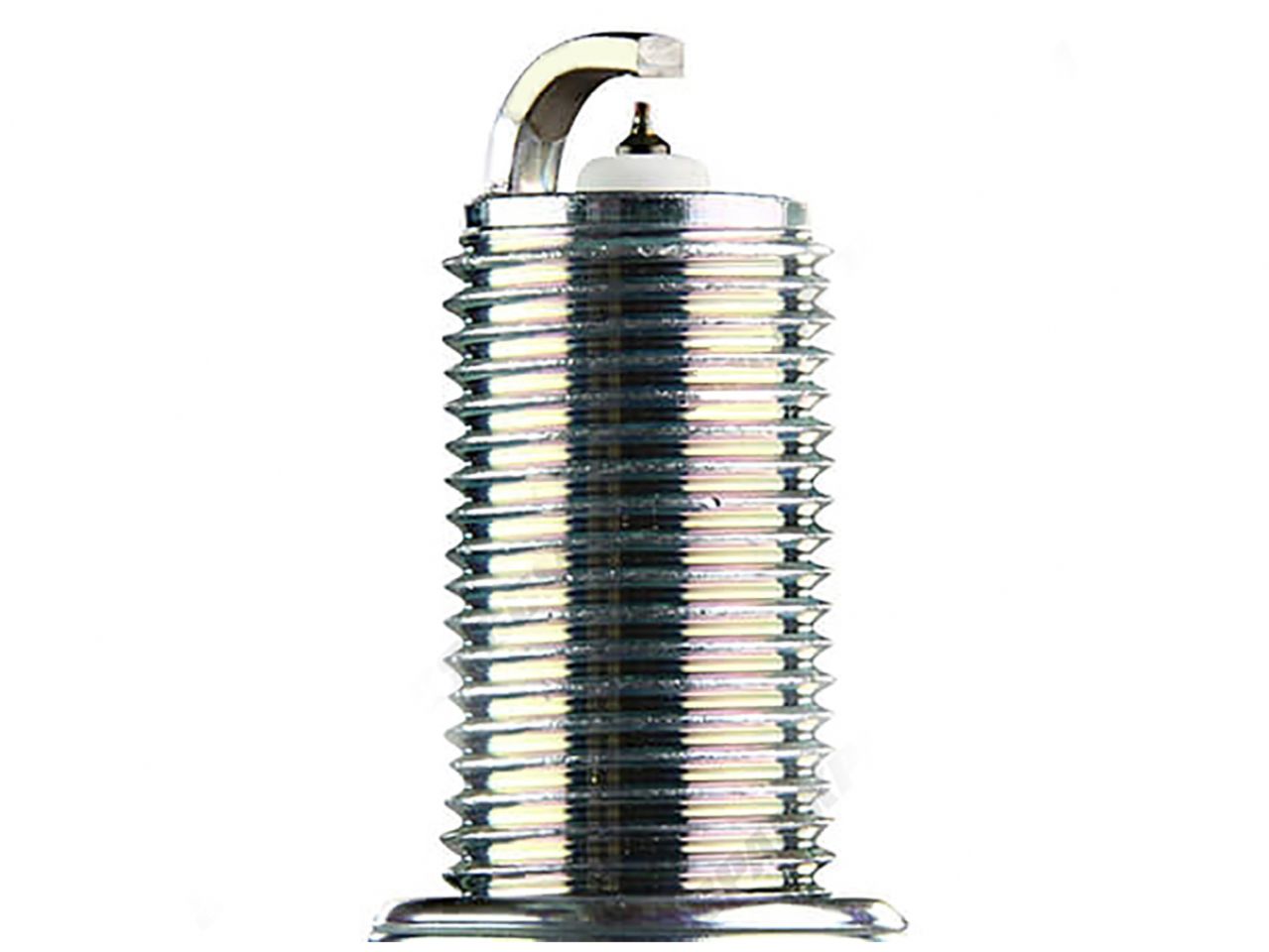

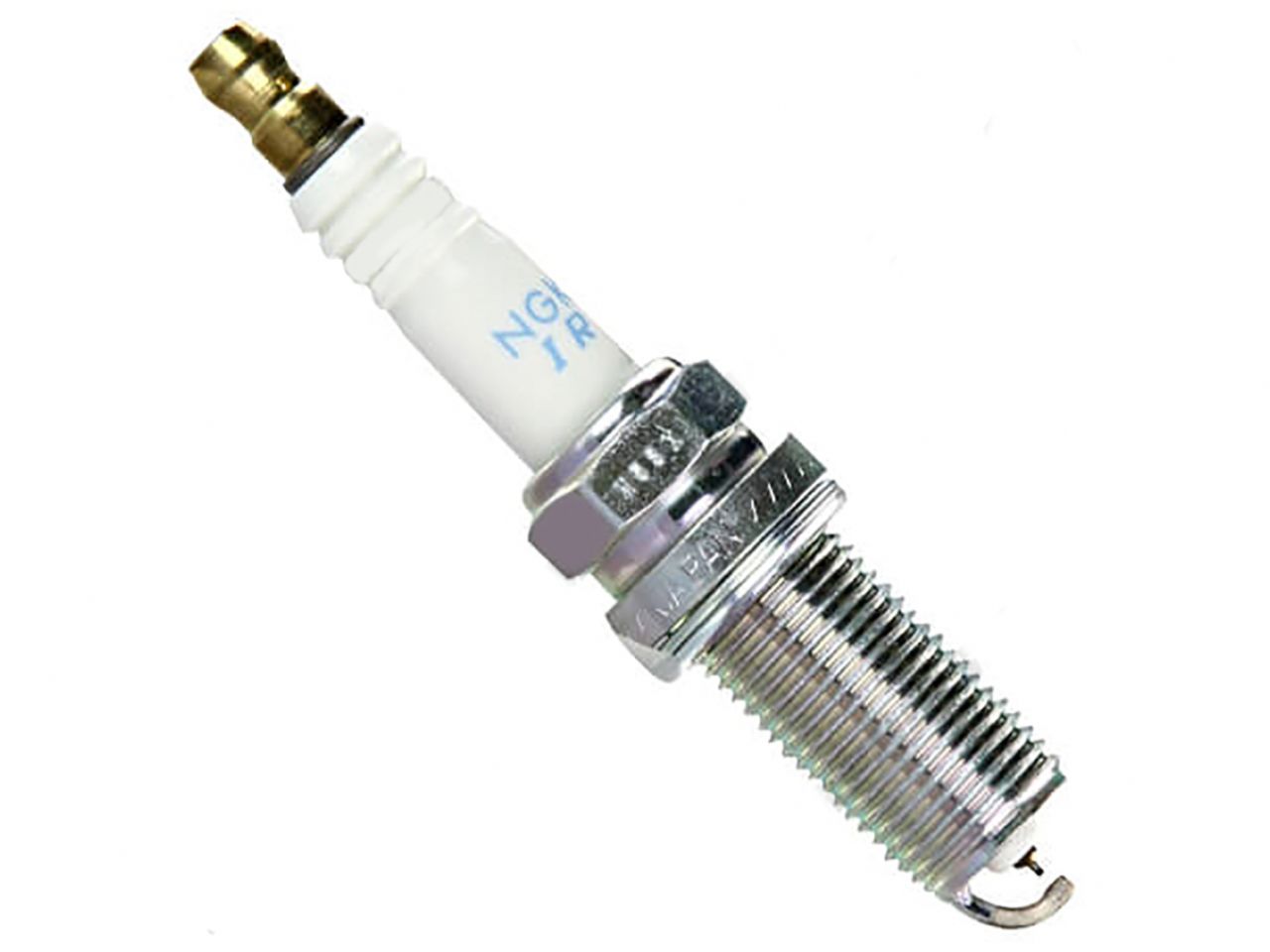

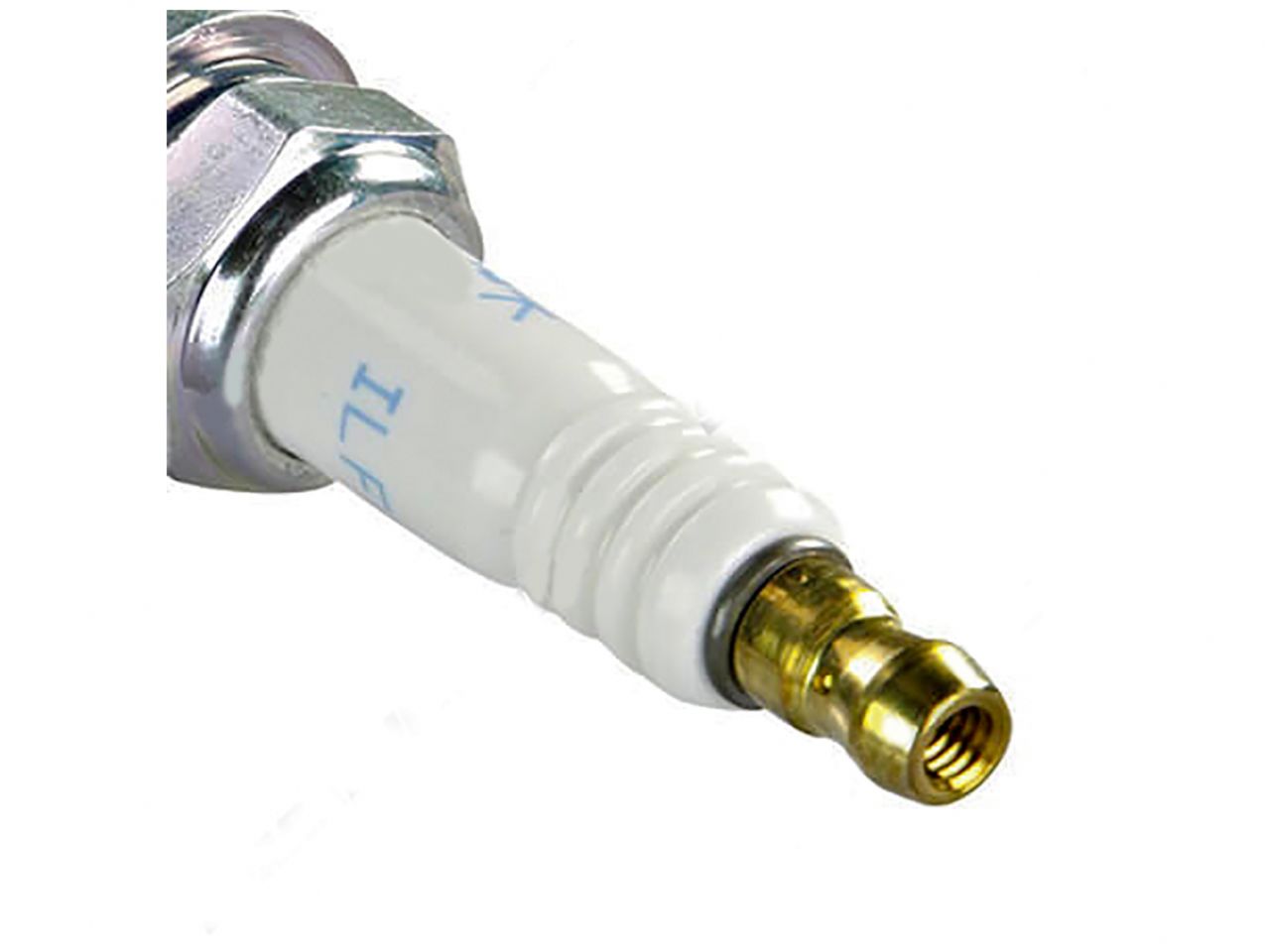

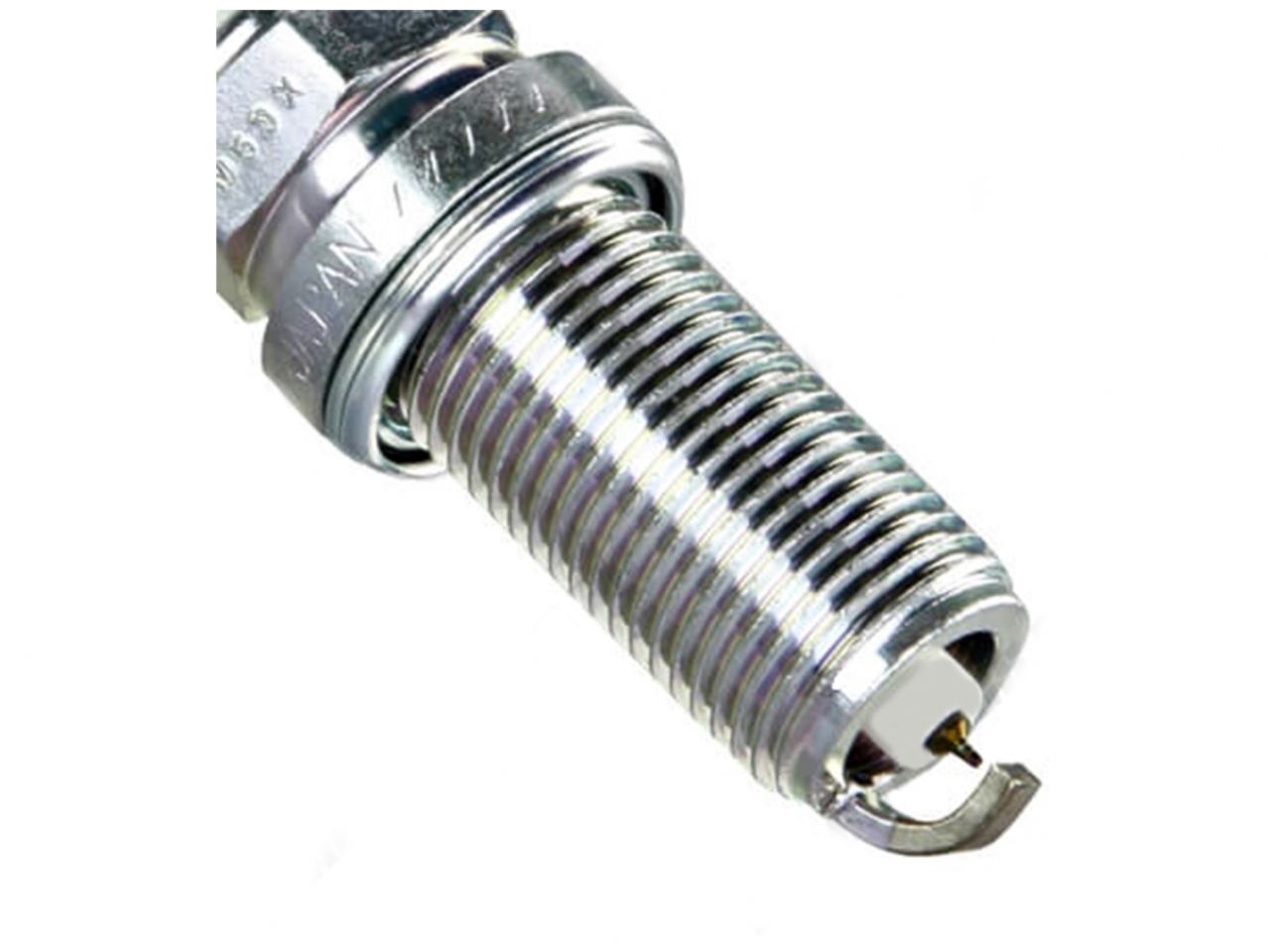

NGK's Laser Iridium Spark Plugs Provide Superior Ignitability and Long Service Life.

Fine Wire Iridium Tipped Center Electrode and Fine Wire Platinum Tipped Ground Electrode Ensures Slow Wear Rate Providing Stable Idle, Superior Anti Fouling, Improved Fuel Efficiency and Lower Emissions.

  • Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
  • Corrugated Ribs Prevent Flashover
  • Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
  • Copper Core Aids in Heat Removal
  • Triple Seals Prevent Leakage
  • Laser Welded Tips
  • Trivalent Metal Plating
  • Longest Life Available

Specs:



Shell

  • Thread Size: 14mm
  • Thread Pitch: 1.25mm
  • Seat Type: Gasket
  • Resistor: Yes
  • Resistor Value: 1K Ohm
  • Reach: 26.5mm (1.04")
  • Hex Size: 5/8" (16mm)
  • Terminal Type: Solid
  • Overall Height: ISO
  • Gap: .031" (0.8mm)



Center Electrode

  • Material: Iridium
  • Type: Fine Wire
  • Size: 0.6mm
  • Projection: Projected



Ground Electrode

  • Material: Platinum
  • Type: Standard
  • Quantity: 1



Specifications

  • Warranty: 1 Year
  • Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
  • Brand: NGK
  • Heat Range: 6
  • Longevity: 100k Miles


Vehicle Fitments:

Year Make Model Submodel
2003 - 2005 Mercedes-Benz C230 Kompressor
2004 - 2005 Mercedes-Benz C230 Kompressor Classic, Kompressor Elegance, Kompressor Sport
2003 - 2006 Mercedes-Benz CL55 AMG Base
2006 Mercedes-Benz CLS55 AMG Base
2003 - 2006 Mercedes-Benz E55 AMG Base
2005 - 2010 Mercedes-Benz G55 AMG Base
2003 - 2006 Mercedes-Benz S55 AMG Base
2003 Mercedes-Benz S55 AMG Kompressor
2003 - 2008 Mercedes-Benz SL55 AMG Base
2003 Mercedes-Benz SL55 AMG Kompressor
2005 - 2009 Mercedes-Benz SLR McLaren Base
