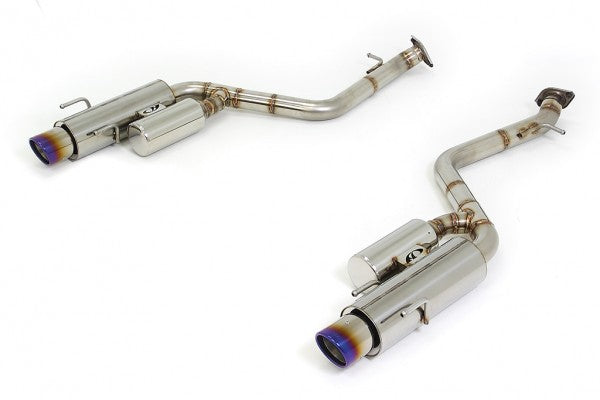

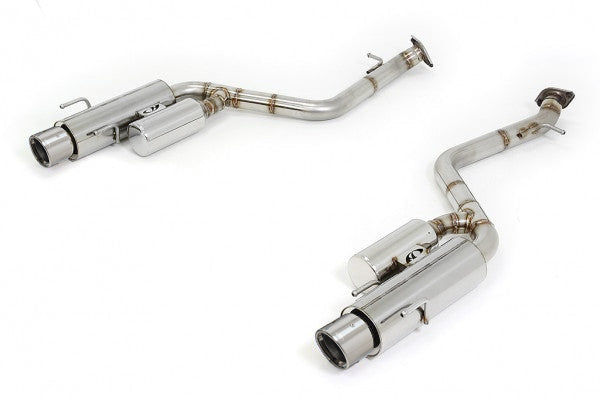

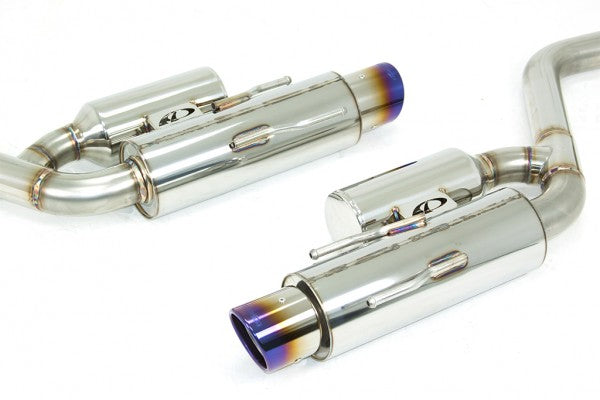

A'PEXi - N1 Evo Extreme (Axleback) - 2014~2016 Lexus IS200t / IS250 / IS300 / IS350 Titanium

2014 ~ 2016 Lexus IS250 / IS350
2016 Lexus IS300 3.5L
2016 Lexus IS200t (2.0L Turbo)

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.

PRODUCT FEATURES:

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results

Bolt-On	Yes
Part Number	Titanium : 164-KT02 Stainless Steel : 164AKT02
Year	2014, 2015, 2016
Make	Lexus
Model	IS350
Body Style	4-Door Sedan
Engine	2GR-FSE
Chassis	GSE30, GSE31
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	60.5mm. x 2
Tip Diameter	93mm. x 2
Pieces	2
Exhaust Tip Style	Titanium Round- Dual wall rolled, Angle cut (Riveted)
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	TP270 Titanium SUS304 Stainless Steel
System Weight	53.5 lbs. (Rear Section only) (Stock- 60.37 lbs.)
Special Notes	Sound Level: 87 dB @ 4,500 RPM. Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components. ***NOTE: Do not use harsh car wash soap or metal polish cleaners when cleaning titanium tips. We recommend using standard isopro
