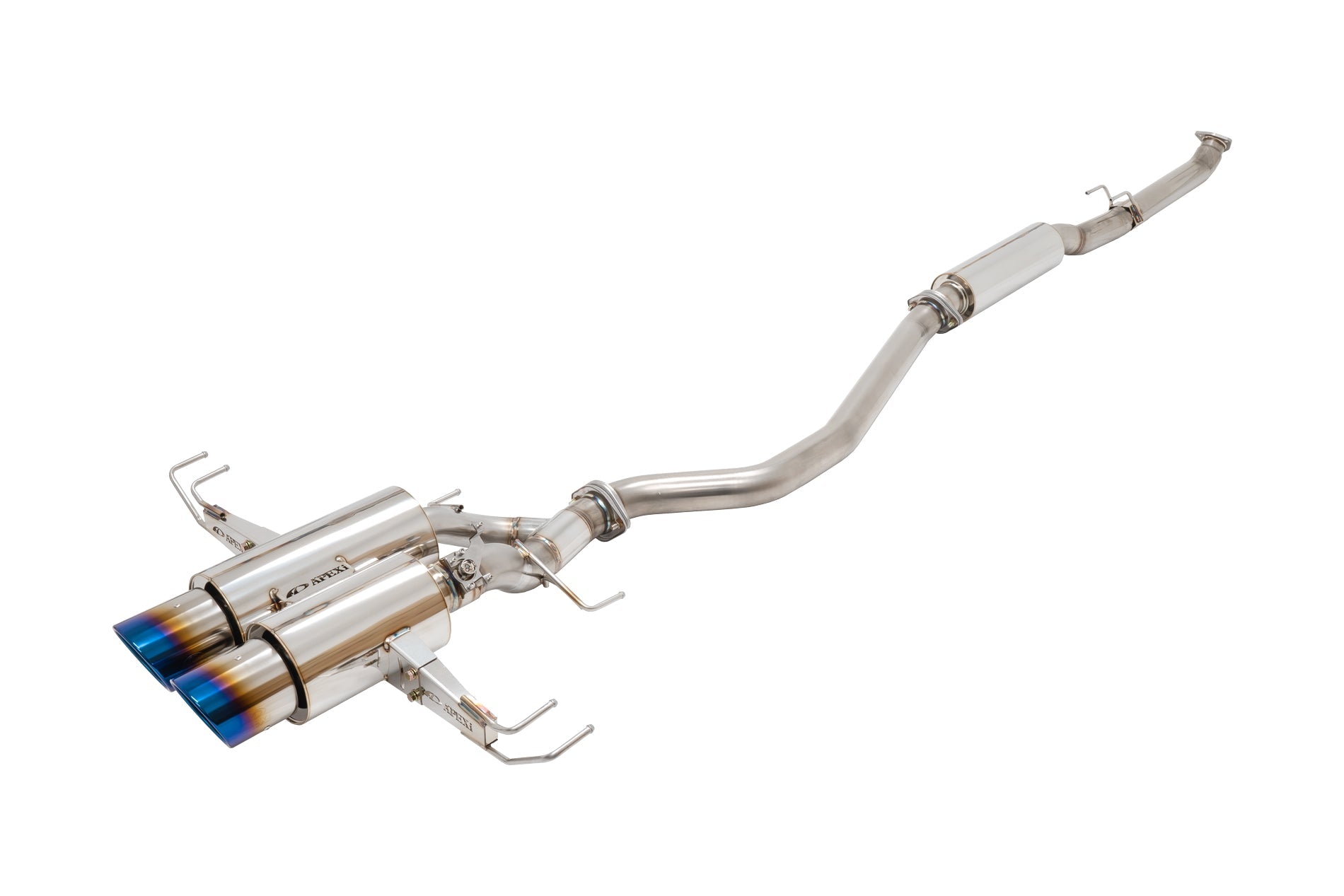

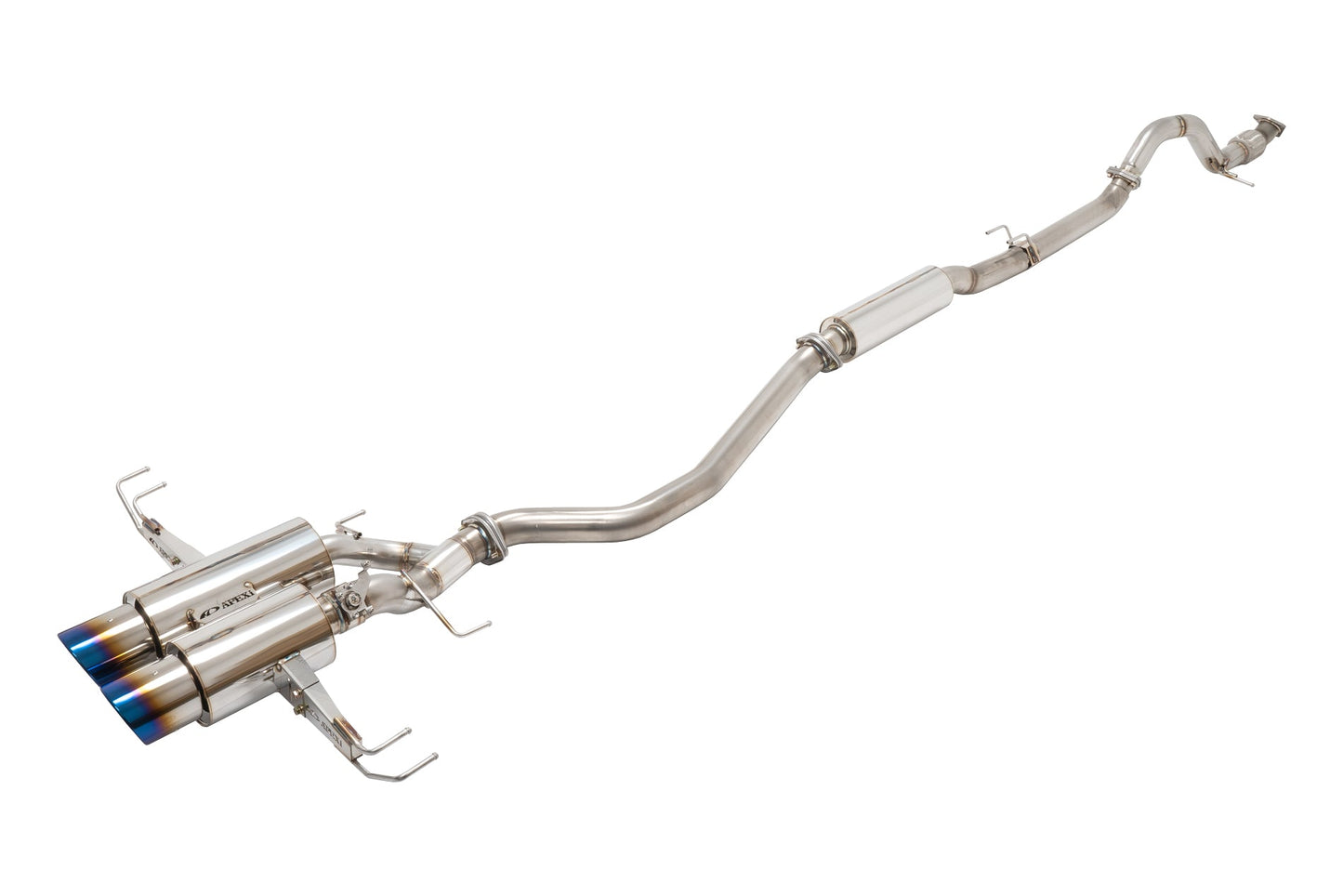

A'PEXi - N1 Evo Extreme (Catback) - 2023+ Honda Civic Type-R [FL5]- **Preorder- ETA Lead Time Late January** N1-X (With Out GT Frontpipe)

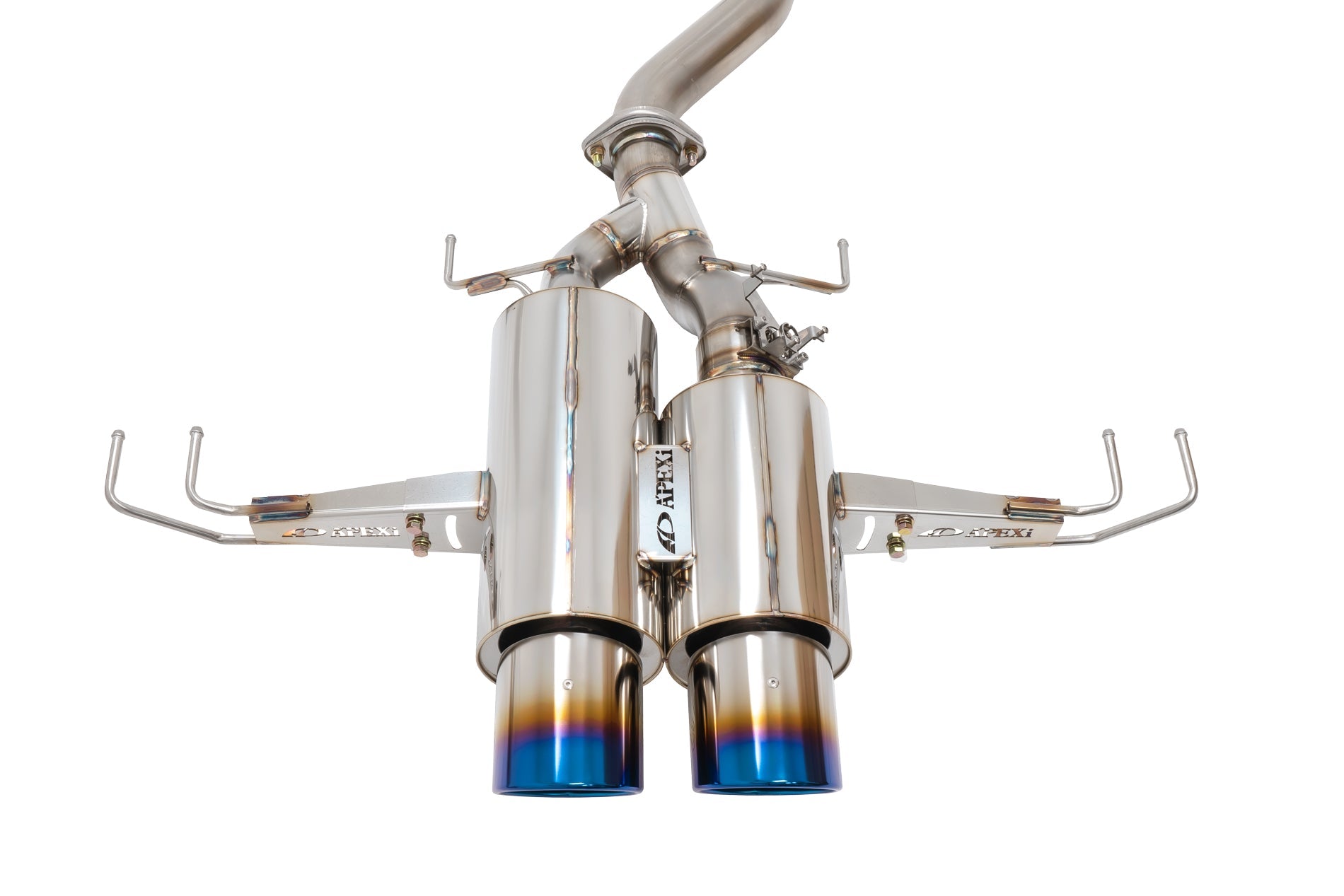

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.

PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results.

Bolt-On	Yes
Part Number	N1-X (W/OUT GT Frontpipe Kit) 164-KH03 N1-X + GT Frontpipe Kit Web Exclusive ONLY 164-KH03 + 145-H003
Year	2023+
Make	Honda
Model	Civic Type-R
Body Style	5-Door Hatchback
Engine	K20C
Chassis	FL5
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	75mm piping to 75mm (valve side) and 61mm (non-valve side)
Tip Diameter	123mm. x 2
Pieces	5

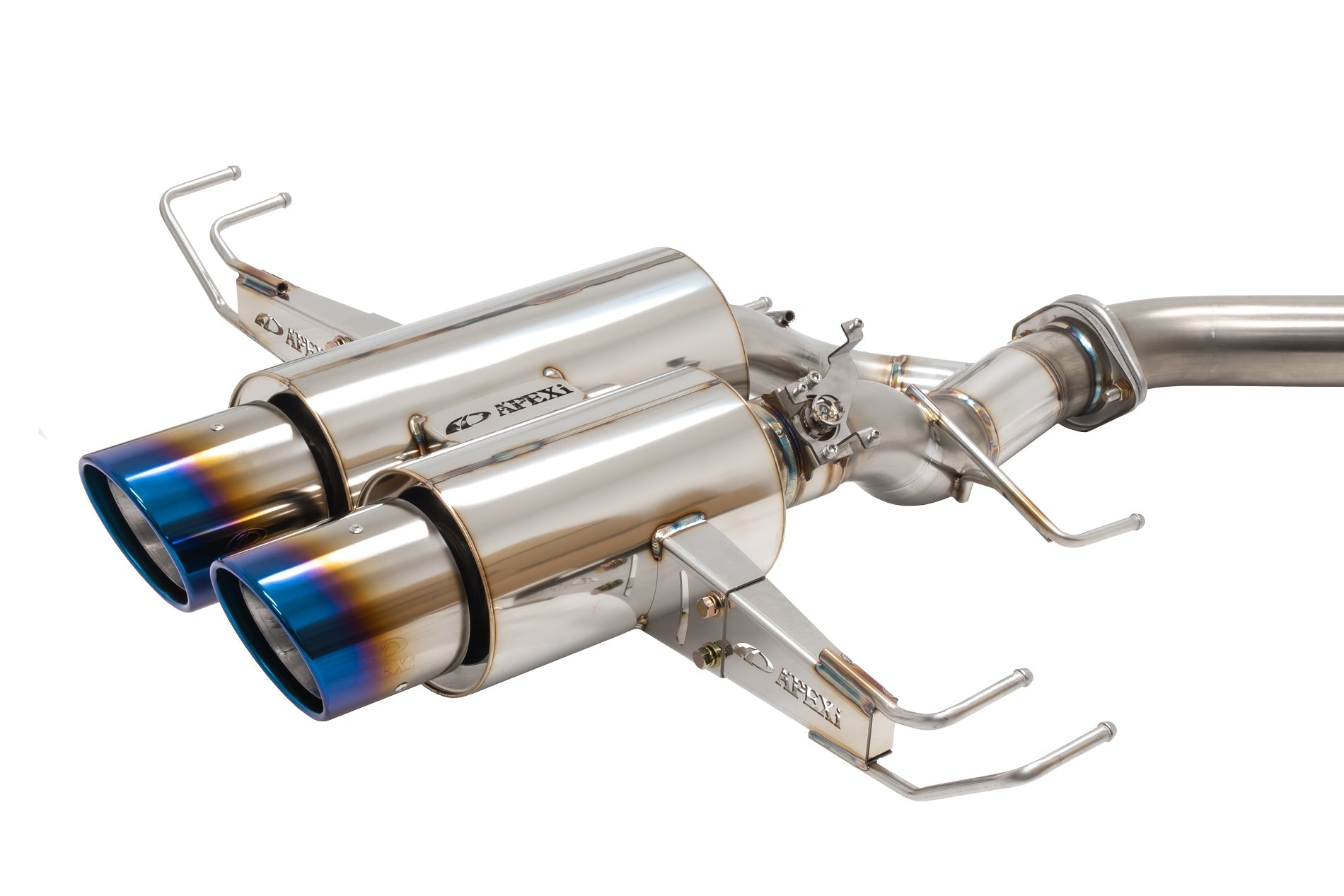

Exhaust Tip Style	Titanium Round- Dual wall rolled, Angle cut (Riveted)
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	TP270 Titanium

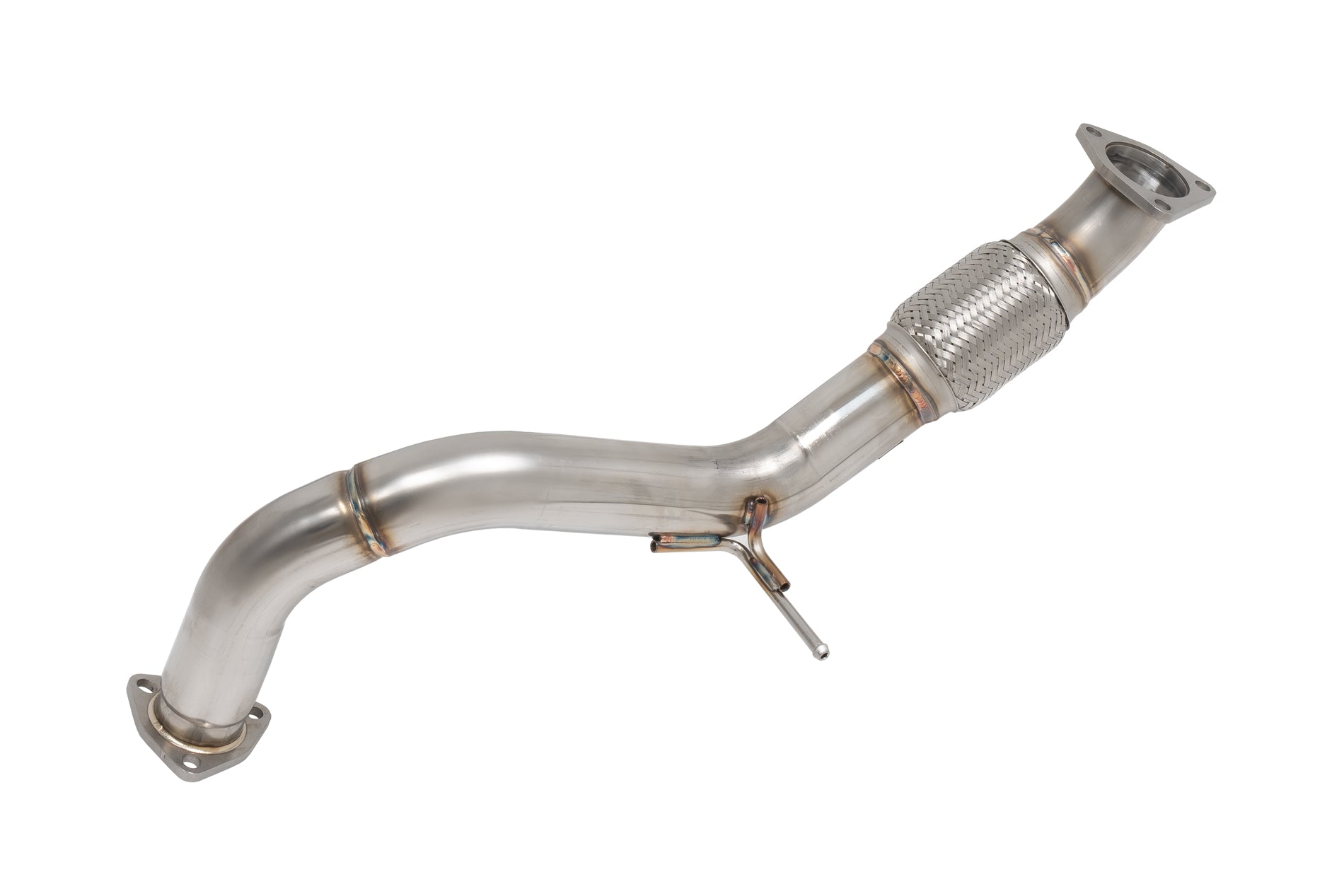

Notes	***Optional Frontpipe Sold Separately (Part No. 145-H003)
