MSD Distributor, Chevy V8, Small Cap/Base

MSD Distributor, Chevy V8, Small Cap/Base

sku: 03N6R | mpn: 8570
$623.94
$623.94
Sale Sold out

Out of stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

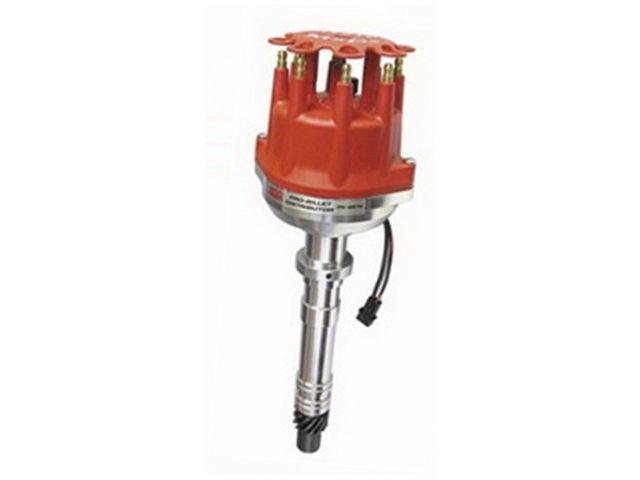

Chevy Pro-Billet Small Diameter V8 Distributor

If you need clearance from all sides, this is your best bet. Must be used with an MSD 6, 7 or 8-series ignition.

This Distributor was designed for racers and street rodders that have space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. The distributor is 3/8" narrower and almost 1" shorter than a standard distributor. Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. Topping it all off is our own small diameter cap. This is molded out of durable Rynite® material and comes with an optional wire retainer.


Features:

  • CNC machined billet aluminum housing is 3/8" smaller in diameter and 7/8" shorter than conventional Chevy V-8 distributors with the "points" type cap
  • Supplied with small diameter HEI style distributor cap and rotor (will accept 8441 Cap-A-Dapt)
  • Will not accept a vacuum advance canister
  • No CARB Exemption Order Number
  • O-ring seals can be added to modified blocks to improve oil pressure control  Must be used with an MSD 6, 7, 8, or 10 Series Ignition
  • Special oil tract improves lubrication to the distributor and cam gear
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Adjustable slip collar mounting flange for engines with modified deck heights
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Mechanical advance assembly can be locked out for crank trigger systems

SPECIFICATIONS:

Emission Code: 1

Product Type: Distributor

Construction: Polished Steel Shaft
