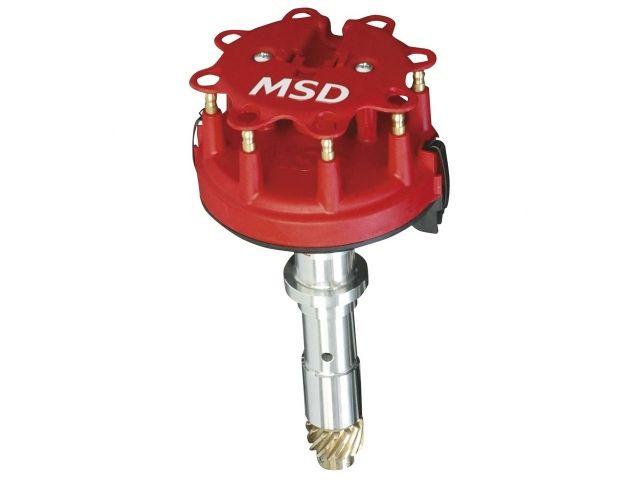

MSD Distributor, Tall Block Chevy V8, Low Profile
The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing. The Tall Block Distributor has a unique slip collar design. This allows the PN 8558 to fit in most tall block engines that have had the deck height modified.
Features:
- Designed to fit low in the block to clear firewall and intake combinations
- Supplied with bronze gear
- Supplied with large diameter HEI style distributor cap and rotor
- Must be used with an MSD Crank Trigger and MSD Ignition Control
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Shaft is guided by a sealed ball bearing and an extra long sintered bushing
- Oversized polished steel shaft with a QPQ coating for friction reduction
- Adjustable slip collar mounting flange for engines with modified deck heights
- CNC machined billet aluminum housing and Dupont Rynite base
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1955 - 1974 | Chevrolet | Bel Air | Base |
| 1955 - 1956 | Chevrolet | Bel Air | Beauville |
| 1955 - 1957 | Chevrolet | Bel Air | Nomad |
| 1958 - 1972 | Chevrolet | Biscayne | Base |
| 1960 | Chevrolet | Biscayne | Fleetmaster |
| 1969 - 1974 | Chevrolet | Blazer | Base |
| 1969 - 1972 | Chevrolet | Brookwood | Base |
| 1961 - 1974 | Chevrolet | C10 Pickup | Base |
| 1967 - 1974 | Chevrolet | C10 Suburban | Base |
| 1961 - 1974 | Chevrolet | C20 Pickup | Base |
| 1967 - 1974 | Chevrolet | C20 Suburban | Base |
| 1961 - 1974 | Chevrolet | C30 Pickup | Base |
| 1973 - 1974 | Chevrolet | Camaro | LT |
| 1967 - 1973 | Chevrolet | Camaro | RS |
| 1967 - 1972 | Chevrolet | Camaro | SS |
| 1967 - 1974 | Chevrolet | Camaro | Z28, Base |
| 1966 - 1974 | Chevrolet | Caprice | Base |
| 1973 - 1974 | Chevrolet | Caprice | Estate, Classic |
| 1967 - 1968 | Chevrolet | Chevelle | 300 |
| 1967 - 1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1967 - 1972 | Chevrolet | Chevelle | Concours |
| 1965 - 1973 | Chevrolet | Chevelle | Deluxe |
| 1969 - 1972 | Chevrolet | Chevelle | Greenbrier, Concours Estate |
| 1968 - 1972 | Chevrolet | Chevelle | Malibu, Nomad |
| 1964 - 1972 | Chevrolet | Chevelle | SS, Base |
| 1962 - 1967 | Chevrolet | Chevy II | Base |
| 1962 - 1968 | Chevrolet | Chevy II | Nova |
| 1964 - 1967 | Chevrolet | Chevy II | Nova SS |
| 1955 - 1974 | Chevrolet | Corvette | Base |
| 1958 | Chevrolet | Del Ray | Base |
| 1959 - 1974 | Chevrolet | El Camino | Base |
| 1968 - 1974 | Chevrolet | El Camino | SS, Custom |
| 1969 - 1974 | Chevrolet | G10 Van | Base |
| 1968 - 1974 | Chevrolet | G10 Van | Sportvan |
| 1968 - 1974 | Chevrolet | G20 Van | Base, Sportvan |
| 1970 - 1974 | Chevrolet | G30 Van | Sportvan, Base |
| 1959 - 1974 | Chevrolet | Impala | Base |
| 1964 - 1967 | Chevrolet | Impala | SS |
| 1961 - 1974 | Chevrolet | K10 Pickup | Base |
| 1967 - 1974 | Chevrolet | K10 Suburban | Base |
| 1961 - 1974 | Chevrolet | K20 Pickup | Base |
| 1967 - 1974 | Chevrolet | K20 Suburban | Base |
| 1968 - 1974 | Chevrolet | K30 Pickup | Base |
| 1969 - 1972 | Chevrolet | Kingswood | Estate, Base |
| 1973 - 1974 | Chevrolet | Laguna | Base |
| 1973 | Chevrolet | Laguna | Estate |
| 1974 | Chevrolet | Laguna | Type S-3 |
| 1964 - 1974 | Chevrolet | Malibu | Base |
| 1974 | Chevrolet | Malibu | Classic |
| 1973 - 1974 | Chevrolet | Malibu | Estate |
| 1970 - 1974 | Chevrolet | Monte Carlo | Base |
| 1973 - 1974 | Chevrolet | Monte Carlo | Landau |
| 1973 | Chevrolet | Monte Carlo | S |
| 1969 - 1974 | Chevrolet | Nova | Base |
| 1973 - 1974 | Chevrolet | Nova | Custom |
| 1955 - 1957 | Chevrolet | One-Fifty Series | Base |
| 1961 - 1966 | Chevrolet | Suburban | Base |
| 1969 - 1972 | Chevrolet | Townsman | Base |
| 1955 | Chevrolet | Truck | 3100 |
| 1955 - 1958 | Chevrolet | Truck | 3400, 3600, 3800, 3500, 3700, 3200 |
| 1955 - 1960 | Chevrolet | Truck | Base |
| 1955 - 1957 | Chevrolet | Two-Ten Series | Base, Del Ray |
| 1959 | Fiat | 1100 | Base |
| 1967 - 1974 | GMC | C15/C1500 Pickup | Base |
| 1968 - 1974 | GMC | C15/C1500 Suburban | Base |
| 1967 - 1974 | GMC | C25/C2500 Pickup | Base |
| 1968 - 1974 | GMC | C25/C2500 Suburban | Base |
| 1967 - 1974 | GMC | C35/C3500 Pickup | Base |
| 1967 - 1971 | GMC | G15/G1500 Van | Base |
| 1968 - 1974 | GMC | G15/G1500 Van | Rally, Vandura |
| 1967 - 1972 | GMC | G25/G2500 Van | Base |
| 1968 - 1974 | GMC | G25/G2500 Van | Rally, Vandura |
| 1971 - 1974 | GMC | G35/G3500 Van | Rally, Base, Vandura |
| 1970 - 1974 | GMC | Jimmy | Base |
| 1967 - 1974 | GMC | K15/K1500 Pickup | Base |
| 1968 - 1974 | GMC | K15/K1500 Suburban | Base |
| 1967 - 1974 | GMC | K25/K2500 Pickup | Base |
| 1968 - 1974 | GMC | K25/K2500 Suburban | Base |
| 1968 - 1974 | GMC | K35/K3500 Pickup | Base |
| 1971 - 1975 | GMC | Sprint | Base |
| 1975 | GMC | Sprint | Classic, SP, High Sierra |
| 1972 - 1974 | GMC | Sprint | Custom |
| 1971 - 1972 | Pontiac | Ventura | Base |
MSD Distributor, Tall Block Chevy V8, Low Profile
Sale price$592.44 USD
