MSD Distributor, Chevy V8, Pro-Billet, Locked, Cap, Rotor

MSD Distributor, Chevy V8, Pro-Billet, Locked, Cap, Rotor

sku: 06THY | mpn: 85501
$575.94
$479.95 $575.94
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
This strong, billet aluminum distributor is set up for engines that run locked-out timing or an MSD Timing Computer. With no advance assembly, the rotor plate is welded directly to the oversized shaft. A sealed ball bearing guides the top of the shaft while an extra long sintered bushing stabilizes the lower portion. Trigger signals are produced via a high-output magnetic pick-up. This pickup is extremely accurate and never requires adjustment. Since this distributor is designed primarily for race engines, an oversized (+.006") bronze gear is installed along with an adjustable slip collar for modified blocks, heads or intake manifolds.


Features:

  • Designed primarily for race applications with no mechanical advance
  • Will not accept a vacuum advance canister
  • Must be used with an MSD 6, 7, 8, or 10 Series Ignition
  • Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
  • Supplied with a 0.006" oversized bronze gear installed
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing

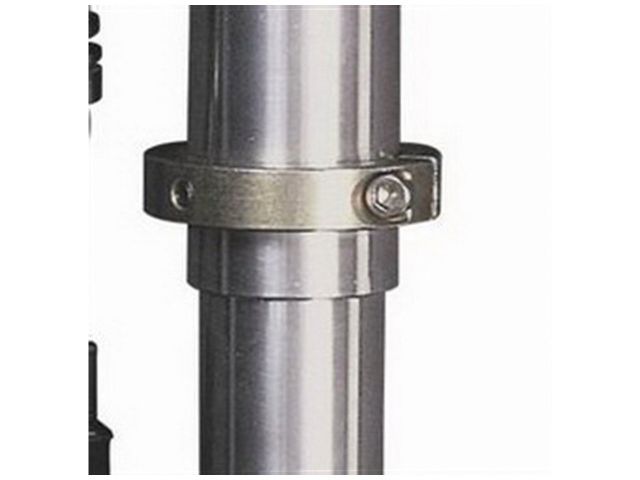

  • Adjustable slip collar mounting flange for engines with modified deck heights
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • CNC machined billet aluminum housing and billet aluminum base
