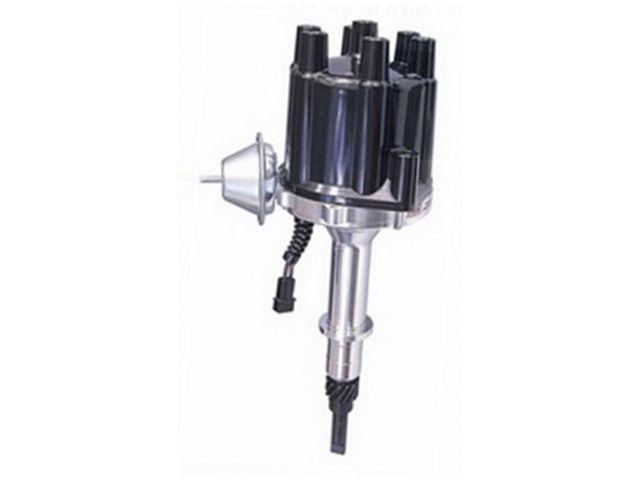

MSD Distributor, 6-cyl. AMC Jeep 232-258, 4.0L
AMC Jeep 232-258 4.0L Distributor
Under the brass terminal cap of each distributor is MSD's race proven magnetic pick-up.
There is a big following of AMC enthusiasts that are cruising a 401 equipped Javelin or trail blazing in a rock crawling Jeep with an inline 6-cylinder! MSD offers two Pro-Billet Distributors to deliver accurate trigger signals and are maintenance-free! This pick-up never requires adjustment and simply plugs right into an MSD Ignition Control. Just above it and under our strong race rotor is an adjustable mechanical advance assembly. The chro-moly weights of this assembly slide on nylon bushings producing smooth movement of the timing. You can easily adjust the curve to match your engine's requirements with the supplied springs and stop bushings. Each precision CNC-machined billet aluminum housing features a sealed ball-bearing and long sintered bushing for stability at any rpm and increased endurance. An oversized steel shaft receives a QPQ coating to reduce friction and prevent corrosion. Both distributors are supplied with a high quality cap, rotor and gear. There is even a vacuum advance canister for street cruising economy!
Features:
- Designed for street/performance use with a mechanical and vacuum advance
- Must be used with an MSD Ignition Control
- Supplied with a socket style distributor cap and rotor
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Vacuum advance canister for improved economy (can be locked out)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CARB E.O. Approved
SPECIFICATIONS:
Emission Code: 1
Construction: Brass Terminal Cap
Material: Socket Style Distributor Cap
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1974 - 1983 | Jeep | Cherokee | Base |
1981 - 1983 | Jeep | Cherokee | Chief |
1981 | Jeep | Cherokee | Laredo |
1983 | Jeep | Cherokee | Pioneer |
1974 - 1980 | Jeep | Cherokee | S |
1978 - 1980 | Jeep | Cherokee | Wide Track |
1975 - 1982 | Jeep | Cherokee | Wide Track Chief |
1979 - 1980 | Jeep | Cherokee | Wide Track Golden Eagle |
1980 - 1983 | Jeep | Cherokee | Wide Track Laredo |
1980 | Jeep | Cherokee | Wide Track Limited |
1972 - 1978 | Jeep | CJ5 | Base |
1977 - 1978 | Jeep | CJ5 | Golden Eagle |
1975 - 1978 | Jeep | CJ5 | Renegade |
1972 - 1975 | Jeep | CJ6 | Base |
1977 - 1978 | Jeep | CJ7 | Golden Eagle |
1976 - 1978 | Jeep | CJ7 | Renegade, Base |
1972 - 1974 | Jeep | DJ5 | Base |
1965 - 1967 | Jeep | Gladiator | Base |
1984 - 1986 | Jeep | Grand Wagoneer | Base |
1984 - 1985 | Jeep | Grand Wagoneer | Limited |
1965 - 1971 | Jeep | J-100 | Base |
1968 - 1973 | Jeep | J-2500 | Base |
1968 - 1973 | Jeep | J-2600 | Base |
1968 - 1969 | Jeep | J-2700 | Base |
1968 - 1970 | Jeep | J-3500 | Base |
1968 - 1970 | Jeep | J-3600 | Base |
1968 - 1970 | Jeep | J-3700 | Base |
1968 | Jeep | J-3800 | Base |
1974 - 1987 | Jeep | J10 | Base |
1982 - 1984 | Jeep | J10 | Laredo |
1974 - 1976 | Jeep | J20 | Base |
1972 - 1973 | Jeep | Jeepster | Base, Commando |
1981 - 1985 | Jeep | Scrambler | Base |
1985 | Jeep | Scrambler | Laredo, Renegade |
1982 - 1983 | Jeep | Scrambler | SL |
1982 - 1984 | Jeep | Scrambler | SR |
1972 - 1973 | Jeep | Wagoneer | Base |
1973 | Jeep | Wagoneer | Custom |
1987 - 1988 | Jeep | Wrangler | Base, Sport, Laredo |
1988 | Jeep | Wrangler | S, Sahara, Islander |
MSD Distributor, 6-cyl. AMC Jeep 232-258, 4.0L
Sale price$759.94 USD
