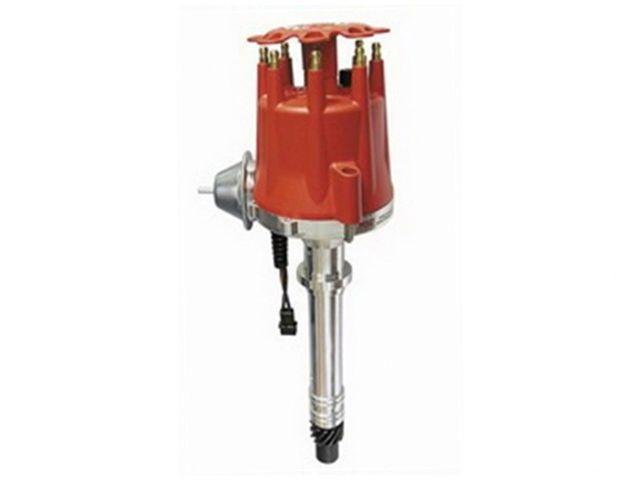

MSD Distributor, Chevy V8, Billet with Vacuum Advance
Chevy V8 Street Pro-Billet w/Vacuum Advance
Includes vacuum advance and must be used with an MSD 6, 7 and 8-series ignition.
The Street Pro-Billet is a popular route for people looking for proven race performance for their street cars. A vacuum advance canister provides economy and the proven MSD mechanical advance gives you the opportunity to dial-in a timing curve to fit your needs. Inside, an oversized steel shaft is QPQ-coated for low friction and rides in a sealed ball bearing at the top of the distributor with an extra-long sintered bushing at the bottom. This combination keeps the shaft steady creating accurate spark delivery at any rpm. The Street Pro-Billet relies on a magnetic pick-up to trigger the MSD Ignition Control which delivers the powerful sparks to the coil. This pick-up is extremely accurate and never needs adjusting.
Features:
- Designed for street/performance use with a mechanical and vacuum advance
- Must be used with an MSD Ignition Control
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Vacuum advance canister for improved economy (can be locked out)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CARB E.O. Approved
SPECIFICATIONS:
Emission Code: 1
Construction: Machined Billet Aluminum
Material: Polished Steel Shaft
MSD Distributor, Chevy V8, Billet with Vacuum Advance
Sale price$502.44 USD
