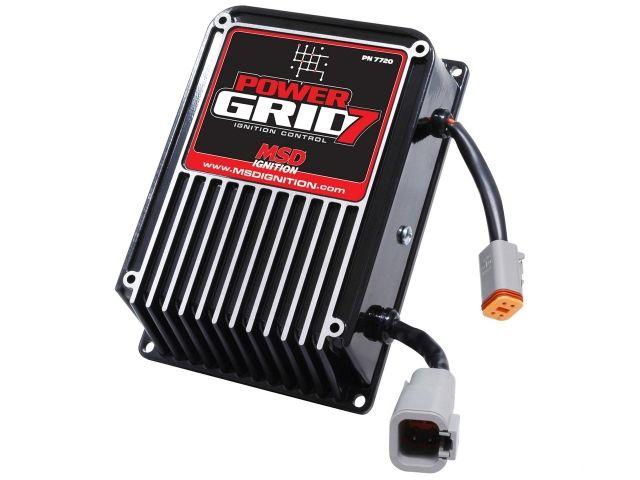

MSD Power Grid System, Ignition Control Only

MSD Power Grid System, Ignition Control Only

sku: 0B0QT | mpn: 7720
$883.14
$735.95 $883.14
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Power Grid Ignition Controller - Ignition Control Only

Must be used with the Power Grid PN 7730 only.

The Power Grid Ignition Control has been specially designed to mount to the Power Grid System Controller box, PN 7730. This Ignition output only controller packs higher output than the current programmable units! For use with Power Grid Controller only, PN 7730.


Features:

  • For use with Power Grid PN 7730 only
  • High output spark for Power Grid System
  • Power Grid PN 7730 mounts directly on top

SPECIFICATIONS:

Current Draw: 1.3 Amp per 1,000 RPM

Emission: Code 3

Primary Voltage: 545-570 Volts

Product Type: Power Grid Controller

RPM Range: 15,000 RPM with 14.4 Volts

Secondary Voltage:  50,000 Volts

Spark Energy:  200-220 mJ per spark

Spark Series Duration:  20 degree Crankshaft Rotation

Voltage Required: 12-18 Volts, Negative Ground

Weight and Size: 2.9 lbs., 7.5"L x 5"W x 2.25"H
