Advance Adapters Motor Mounts

Advance Adapters Engine Mount Kit for Chevy V8 & V6 engines.

These Universal engine mounts are designed for use on all types of 4WD and 2WD vehicles that have frame rail widths up to 28.75". The frame brackets can be used in either the upward or downward position for best engine location. The brackets must be welded but can be bolted into position so the vehicle can be taken to a welding shop. If you are dealing with a vehicle that has an open channel, then you should box in the frame rail prior to mounting the new bracket. The slots of the mounts are designed to give you side to side adjustments. The slide lock tab will lock the mount down once the engine location is selected. The slide lock tab does require welding to the mount but can be bolted for securing and assembly purposes so you can relocate your rig to your local welder.

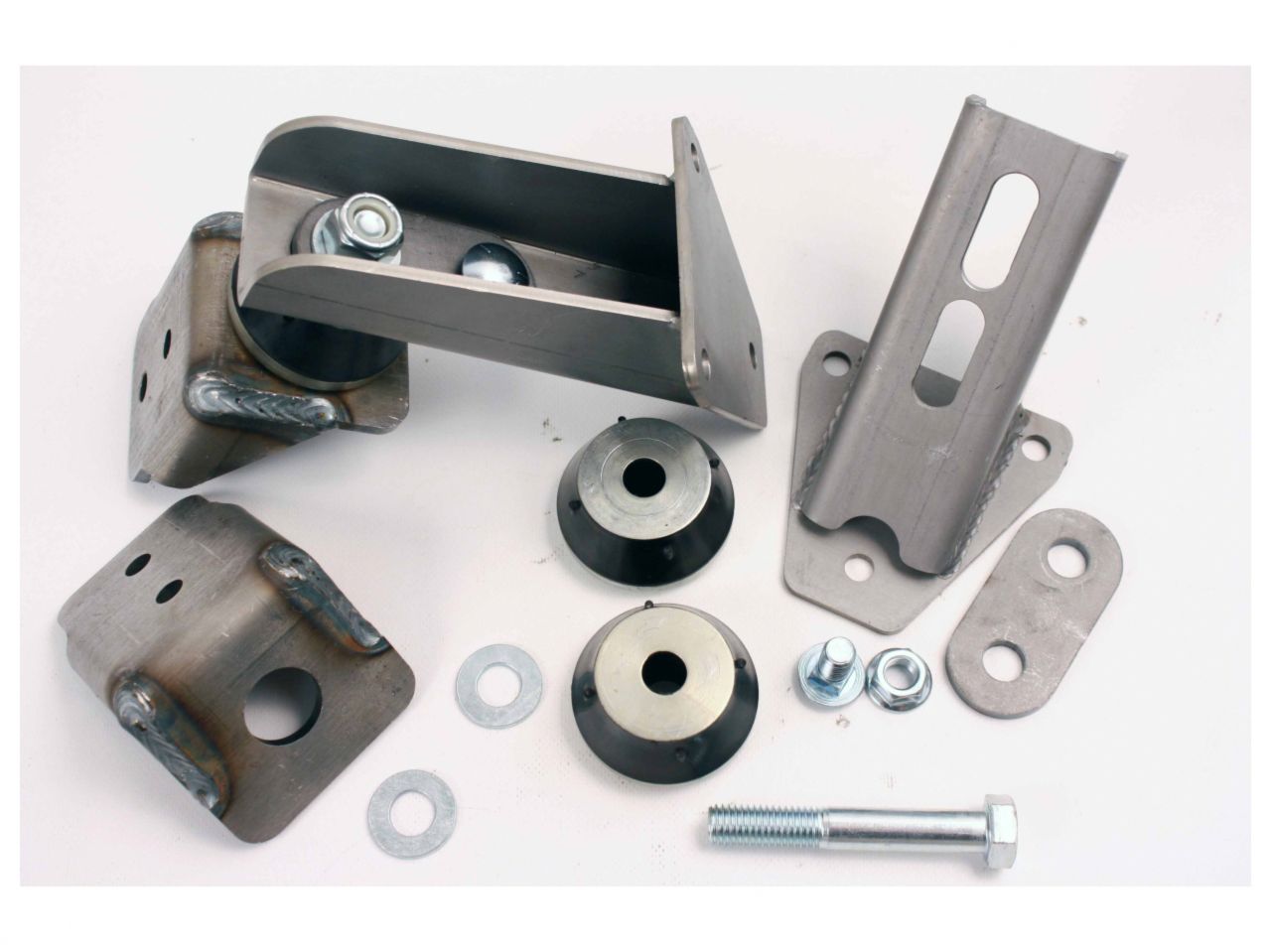

The engine mount kit includes two engine side mounts, two weld-in gusseted frame mounts, and rubber mount kit. This mount system fits vehicles with frame widths up to 28.75" wide.

The engine mount kit includes two engine side mounts (3/16" thick steel), two weld-in gusseted frame mounts (1/4" thick steel), and rubber mount kit.

Note: This engine mount kit can be used with All GM V8's & 4.3 V6 with a triangular / 3-bolt boss on the engine block. If using a new Gen III / IV , LS-Series V8, please use this engine mounting accessory PN713088
