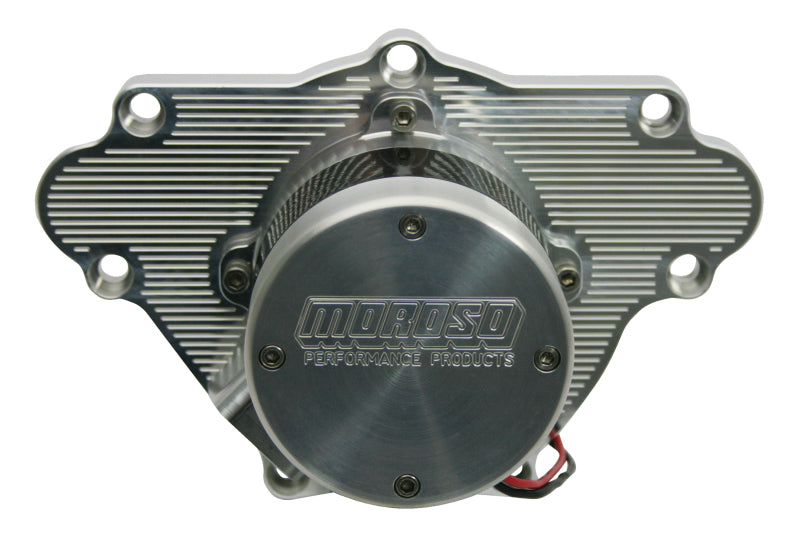

Moroso SB Mopar Electric Water Pump

Chrysler 273-360 Electric Water Pump Height: 4.600 inch Weight: 6.29 lbs
- Each Pump plate has been re-profiled and pocketed to remove unecessary weight
- Average overall pump heights have been shortened by 3/4" and up to 2 lbs weight reduction on average per pump
- Electric motor with heavy-duty windings, precision balancing, long-life brushes, stainless steel shaft and seald ball bearings is superior in quality and pumps more water through the system during actual operating conditions than competing pumps!
- Mounts directly to stock water pump location, includes stainless steel mounting hardware & gasket for simple installation
- Eliminates driving belt and fan to save weight and horsepower, while providing maximum circulation to improve cooling efficiency during all driving conditions, especially while idling
- Compatible with 12 and 16 volt systems
- High-temperature Viton® seal eliminates leaks
- Machined with new -16AN port for easier installation of our new hose adapters, eliminating the need for teflon tape or pipe sealants
- Pumps can easily accommodate lower radiator hose from either driver or passenger side installations
- Clear anodized 6061-T6 billet aluminum pump housing, impeller, pump plate and motor cap along with powder-coated outer case will provide years of dependable operation
- Draws normally with 12V (8-10 amps in a typical system), allowing the battery to remain more fully charged during racing without an alternator
BILLET ELECTRIC WATER PUMPS APPLICATION CHART
PART# | ENGINE | NOTES | HEIGHT (INCHES) | WEIGHT (WITH SPACERS. HARDWARE, BACKING PLATE, ETC.) |
63547 | Big Block Chevy | 6.375 w/spacers | 7.15 lbs | |
63557 | Small Block Chevy | 6.218 w/spacers | 7.03 lbs | |
63565 | Chrysler 273-360 | 4.600 | 6.29 lbs | |
63575 | Chrysler 383-440 | 3.100 | 4.54 lbs | |
63585 | Ford 289, 302, 351W | Standard Rotation only | 4.625 | 6.23 lbs |
63595 | Ford 429-460 | 4.75 | 7.00 lbs |

Moroso SB Mopar Electric Water Pump
Sale price$740.00 USD
